Nickel Plated Brass Cable Gland
Specification:
Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

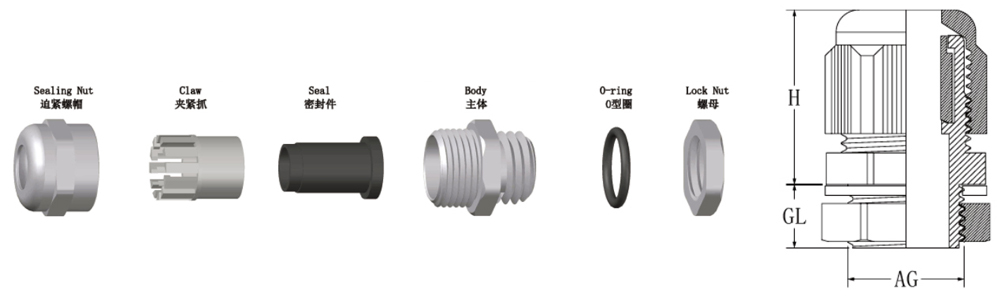

(In mm)
| Item | Cable Range | Thread Length GL | Thread O.D. AG | Mounting hole | Joint Length H | Spanner size | Item No. |
| PG7 | 2-5 | 6.5 | 12.5 | 12.5-12.7 | 17 | 14/15 | BPG7-5 |
| PG7 | 3-6.5 | 6.5 | 12.5 | 12.5-12.7 | 17 | 14/15 | BPG7 |
| PG9 | 3-6.5 | 8 | 15.2 | 15.2-15.4 | 19 | 17/18 | BPG9-6.5 |
| PG9 | 4-8 | 8 | 15.2 | 15.2-15.4 | 19 | 17/18 | BPG9 |
| PG11 | 4-8 | 8 | 18.6 | 18.6-18.8 | 21 | 20/21 | BPG11-8 |
| PG11 | 5-10 | 8 | 18.6 | 18.6-18.8 | 21 | 20/21 | BPG11 |
| PG 13.5 | 5-10 | 8 | 20.4 | 20.4-20.6 | 22 | 22/23 | BPG13.5-10 |
| PG13.5 | 6-12 | 8 | 20.4 | 20.4-20.6 | 22 | 22/23 | BPG13.5 |
| PG16 | 6-12 | 8 | 22.5 | 22.5-22.7 | 23 | 24/25 | BPG16-12 |
| PG16 | 10-14 | 8 | 22.5 | 22.5-22.7 | 23 | 24/25 | BPG16 |
| PG21 | 12-16 | 9 | 28.3 | 28.3-28.5 | 27 | 30 | BPG21-16 |
| PG21 | 13-18 | 9 | 28.3 | 28.3-28.5 | 27 | 30 | BPG21 |
| PG29 | 15-22 | 10 | 37.0 | 37.0-37.2 | 31 | 40 | BPG29-22 |
| PG29 | 18-25 | 10 | 37.0 | 37.0-37.2 | 31 | 40 | BPG29 |
| PG36 | 23-30 | 11 | 47.0 | 47.0-47.2 | 37 | 50 | BPG36-30 |
| PG36 | 25-33 | 11 | 47.0 | 47.0-47.2 | 37 | 50 | BPG36 |
| PG42 | 30-35 | 13 | 54.0 | 54.0-54.2 | 37 | 57 | BPG42-35 |
| PG42 | 32-38 | 13 | 54.0 | 54.0-54.2 | 37 | 57 | BPG42 |
| PG48 | 35-40 | 14 | 59.3 | 59.3-59.5 | 38 | 64 | BPG48-40 |
| PG48 | 37-44 | 14 | 59.3 | 59.3-59.5 | 38 | 64 | BPG48 |
