PG Lengthen Cable Gland Nylon 66 Waterproof IP68
Specification:
Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Color: Gray, White, Black and so on.
Certificate: CE, RoHS approved
waterproof. IP68

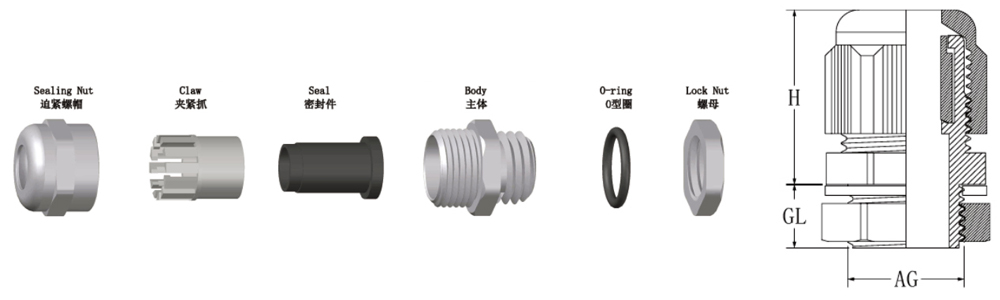

(In mm)
| Item | Cable Range | Thread Length GL |
Thread O.D. AG |
Spanner size | Item No. |
| PG7 | 3-6.5 | 15 | 12.5 | 18/16 | NPG7L |
| PG9 | 4-8 | 15 | 15.2 | 22/19 | NPG9L |
| PG11 | 5-10 | 15 | 18.6 | 24/22 | NPG11L |
| PG13.5 | 6-11 | 15 | 20.4 | 27/24 | NPG13.5L |
| PG16 | 10-13 | 15 | 22.5 | 30/27 | NPG16L |
| PG21 | 13-18 | 15 | 28.3 | 35/33 | NPG21L |
| PG29 | 18-25 | 15 | 37.0 | 45/42 | NPG29L |
| PG36 | 22-32 | 18 | 47.0 | 58/52 | NPG36L |
| PG42 | 32-38 | 20 | 54.0 | 62/58 | NPG42L |
| PG48 | 37-44 | 20 | 59.3 | 70/64 | NPG48L |
