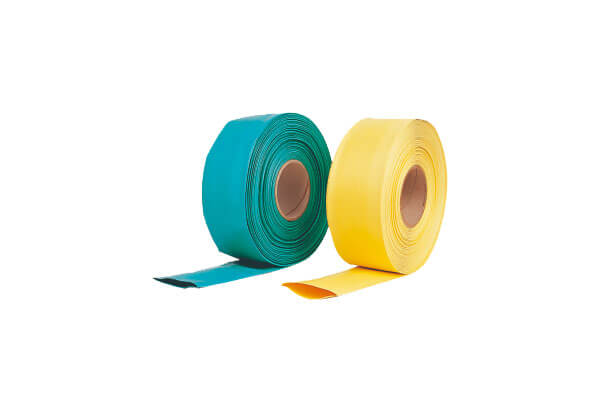

Busbar Heat Shrink Tube Single Wall 10kV/35kV

Specification:

10kV HSBT Series
Product No. As Supplied/mm After Recovered /mm Standard Package (m/roll) Application /mm
ID Wall Thickness ID Wall Thickness Width of Diameter of
(Min) (Max) Rectangular Busbar Circular Busbar
HSBT-20 20 1 10 2.4 1000 20 15
HSBT-25 25 1 12 2.4 1000 25 15
HSBT-30 30 1.1 14 2.4 1000 30 20
HSBT-40 40 1 17 2.4 1000 40 30
HSBT-50 50 1.1 22 2.7 1000 50 35
HSBT-65 65 1.1 28 2.7 1000 65 45
HSBT-75 75 1.1 32 2.7 1000 75 50
HSBT-85 85 1.1 37 2.7 1000 85 65
HSBT-100 100 1.1 43 2.7 1000 100 75
HSBT-120 120 1.1 53 2.7 1000 120 85
HSBT-150 140 1.1 65 2.7 1000 150 100
HSBT-180 180 1.1 75 2.7 1000 180 125
HSBT-210 200 1.1 88 2.7 1000 200 150
HSBT-230 220 1 88 2.7 1000 / /
HSBT-250 250 1.5 107 3.6 1000 / /
HSBT-300 290 1.3 107 3.8 1000 / /
HSBT-325 325 1.1 107 3.8 1000 / /
HSBT-350 350 1.2 159 2.7 1000 / /
HSBT-400 400 1.2 185 2.7 1000 / /
HSBT-500 500 1.2 210 3 1000 / /
35kV HSBT Series
Product No. As Supplied/mm After Recovered / mm Standard Package (m/roll) Application /mm
ID Wall Thickness ID Wall Thickness
(Min) (Max)
HSBT-20 20 2.4 10 4.5 1000 20 15
HSBT-25 25 2 10 4.5 1000 20 15
HSBT-30 28 2.4 14 4.5 1000 30 20
HSBT-40 38 2.2 14 4.5 1000 40 30
HSBT-50 48 2.2 21 4.8 1000 50 35
HSBT-65 65 2.2 27 5 1000 65 45
HSBT-75 73 2.2 31 5 1000 75 50
HSBT-85 85 2 32 5 1000 85 55
HSBT-100 100 2 38 5 1000 100 75
HSBT-120 120 2.1 50 5 1000 120 85
HSBT-150 140 2.1 59 5 1000 150 105
HSBT-180 180 2.3 71 5.5 1000 180 125
HSBT-210 200 2.2 88 5 15 200 140
HSBT-230 220 2 88 5 15 / /
