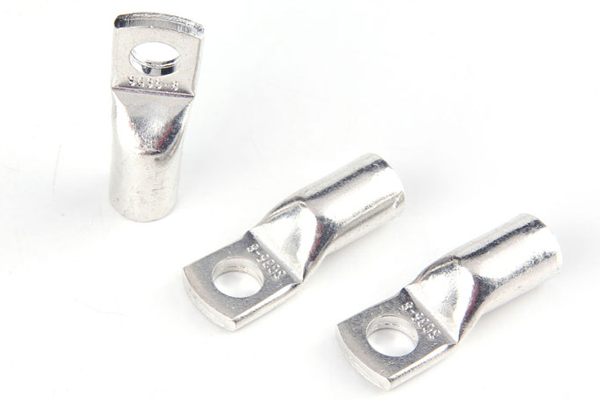

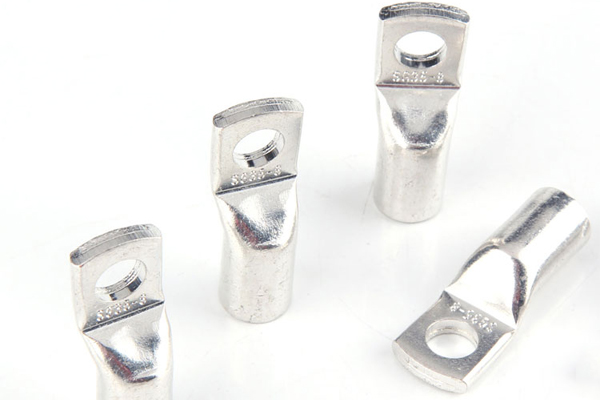

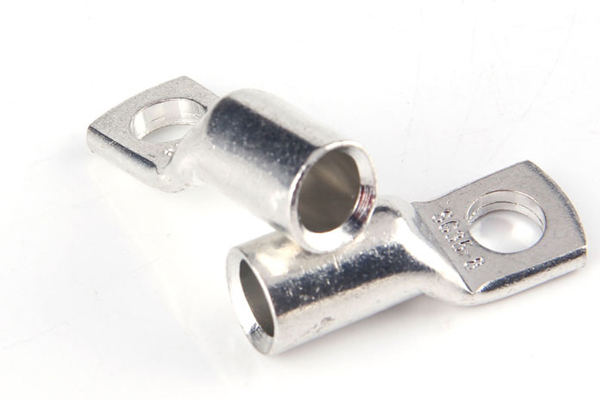

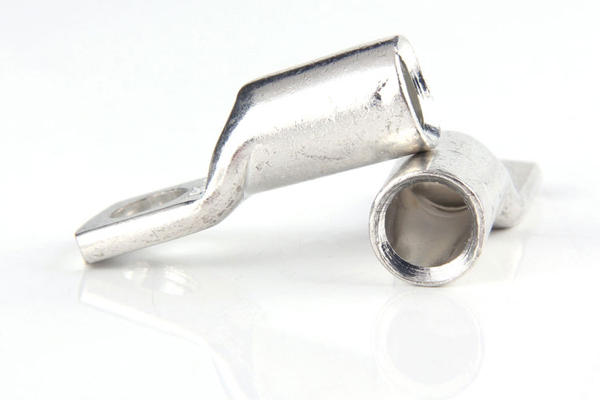

Compression Lugs Wire Lugs SG
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Compression Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Compression Lugs are tin plated to provide excellent corrosion resistance.

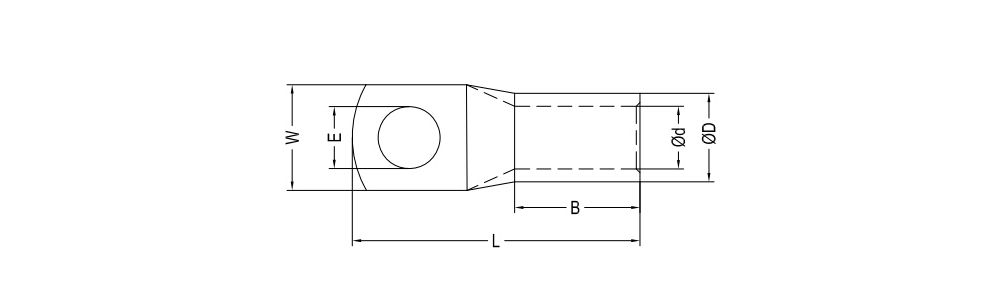

(In mm)
| Item No. | E | Dφ | dφ | W | B | L |
| SG35-6 | 6.5 | 12 | 8.5 | 15 | 17 | 39 |
| SG35-8 | 8.5 | 12 | 8.5 | 15 | 17 | 39 |
| SG50-6 | 6.5 | 14 | 10 | 15 | 19 | 47 |
| SG50-8 | 8.5 | 14 | 10 | 17 | 19 | 47 |
| SG50-10 | 10.5 | 14 | 10 | 19 | 19 | 50 |
| SG70-6 | 6.5 | 16.5 | 12 | 17 | 21 | 53 |
| SG70-8 | 8.5 | 16.5 | 12 | 17 | 21 | 53 |
| SG70-10 | 10.5 | 16.5 | 12 | 19 | 21 | 55 |
| SG70-12 | 13 | 16.5 | 12 | 19 | 21 | 59 |
| SG95-6 | 6.5 | 18 | 13.5 | 19 | 25 | 59 |
| SG95-8 | 8.5 | 18 | 13.5 | 19 | 25 | 59 |
| SG95-10 | 10.5 | 18 | 13.5 | 19 | 25 | 59 |
| SG95-12 | 13 | 18 | 13.5 | 19 | 25 | 62 |
| SG120-6 | 6.5 | 19.5 | 15 | 20.8 | 26 | 62 |
| SG120-8 | 8.5 | 19.5 | 15 | 20.8 | 26 | 62 |
| SG120-10 | 10.5 | 19.5 | 15 | 20.8 | 26 | 62 |
| SG120-12 | 13 | 19.5 | 15 | 20.8 | 26 | 62 |
| SG150-6 | 6.5 | 21 | 16.5 | 20.8 | 30 | 67 |
| SG150-8 | 8.5 | 21 | 16.5 | 20.8 | 30 | 67 |
| SG150-10 | 10.5 | 21 | 16.5 | 20.8 | 30 | 67 |
| SG150-12 | 13 | 21 | 16.5 | 20.8 | 30 | 72 |
| SG185-10 | 10.5 | 24 | 19 | 24.5 | 30 | 76 |
| SG185-12 | 13 | 24 | 19 | 31 | 30 | 83 |
| SG185-16 | 17 | 24 | 19 | 31 | 30 | 83 |
| SG240-10 | 10.5 | 26 | 21 | 31 | 35 | 83 |
| SG240-12 | 13 | 26 | 21 | 31 | 35 | 93 |
| SG240-14 | 15 | 26 | 21 | 31 | 35 | 93 |
| SG240-16 | 17 | 26 | 21 | 31 | 35 | 93 |
| SG300-10 | 10.5 | 30 | 23.5 | 31 | 44 | 98 |
| SG300-12 | 13 | 30 | 23.5 | 31 | 44 | 98 |
| SG300-14 | 15 | 30 | 23.5 | 31 | 44 | 98 |
| SG300-16 | 17 | 30 | 23.5 | 31 | 44 | 98 |
