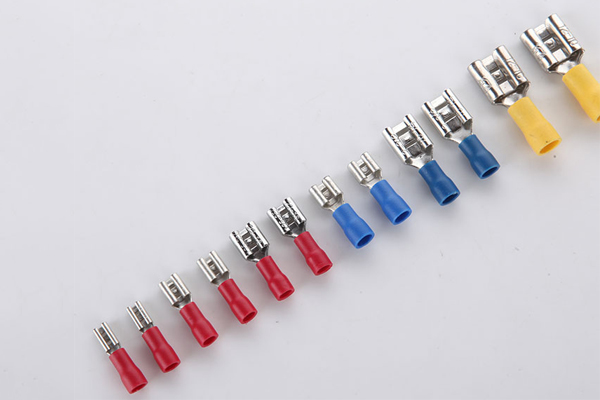

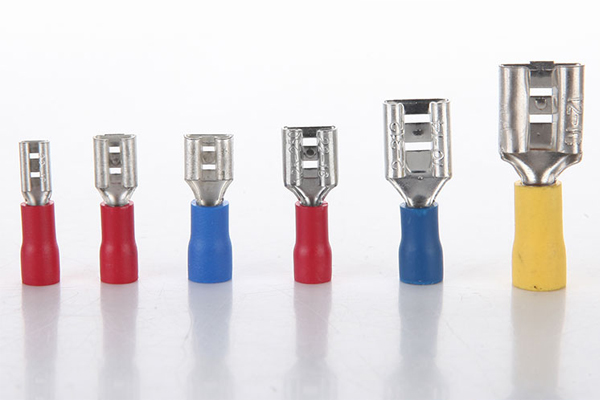

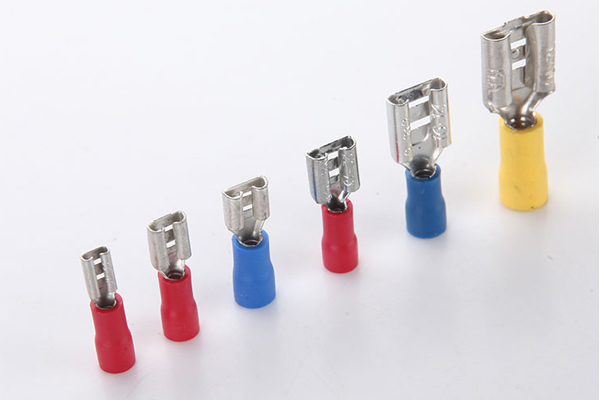

Insulated Female Terminal Female Spade Terminals Wire Connector BLVA
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Female Terminal offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(22～16)Max. current: lmax=10A | |||||||

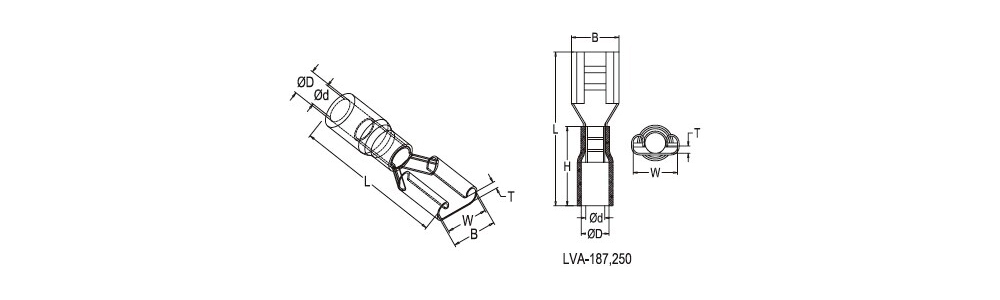

| Item No | NEMA-TAB T*W mm | Thickness mm | DIMENSION | ||||
| B mm | dφ mm | Dφ mm | L mm | H mm | |||
| BLVA1.25-110(5) | 0.5×2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19 | 10 |
| BLVA1.25-110(8) | 0.8×2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19 | |
| BLVA1.25-187(5) | 0.5×4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19 | |
| BLVA1.25-187(8) | 0.8×4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19 | |
| BLVA1.25-205 | 0.5×5.2 | 0.35 | 6.5 | 1.7 | 3.8 | 20 | |
| BLVA1.25-250 | 0.8×6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21 | |
| Insulated square：1.5～2.5mm²(16～14)Max. current: lmax=15A | |||||||
| Item No | NEMA-TAB T*W mm | Thickness mm | DIMENSION | ||||
| B mm | dφ mm | Dφ mm | L mm | H mm | |||
| BLVA2-110(5) | 0.5×2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19 | 10 |
| BLVA2-110(8) | 0.8×2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19 | |
| BLVA2-187(5) | 0.5×4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19 | |
| BLVA2-187(8) | 0.8×4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19 | |
| BLVA2-205 | 0.5×5.2 | 0.35 | 6.5 | 2.3 | 4.3 | 20 | |
| BLVA2-250 | 0.8×6.35 | 0.4 | 7.4 | 2.3 | 4.3 | 21 | |
| BLVA2-312 | 0.8×8.0 | 0.4 | 9 | 2.3 | 4.3 | 23 | |
| Insulated square：4～6mm²(12～10)Max. current: lmax=24A | |||||||
| Item No | NEMA-TAB T*W mm | Thickness mm | DIMENSION | ||||
| B mm | dφ mm | Dφ mm | L mm | H mm | |||
| BLVA5.5-250 | 0.8×6.35 | 0.4 | 7.4 | 3.4 | 5.7 | 25 | 14 |
| BLVA5.5-312 | 1.2×9.4 | 0.5 | 10.9 | 3.4 | 5.7 | 29.6 | 13.5 |
