Copper Bell Mouth Lugs Cable Lugs Electrical Crimp Lugs TT
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

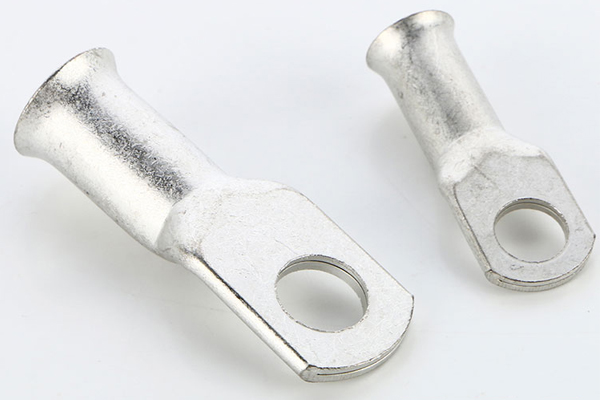

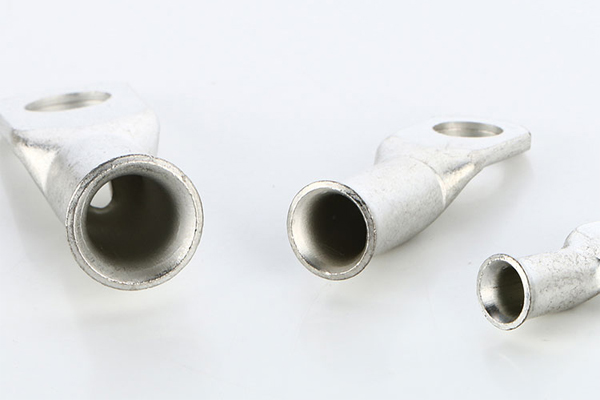

TheCopper Bell Mouth Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Copper Bell Mouth Lugs are tin plated to provide excellent corrosion resistance.

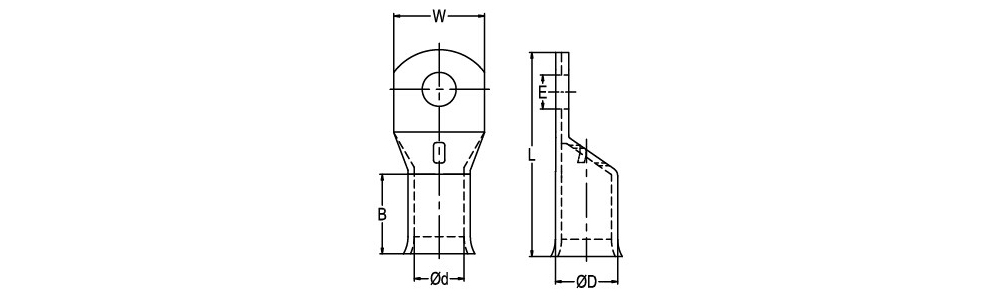

(In mm)
| Item No. | E | Dφ | dφ | W | B | L |
| TT10-6 | 6.4 | 6.9 | 4.7 | 11.9 | 12 | 28 |
| TT10-8 | 8.3 | 6.9 | 4.7 | 13.5 | 12 | 31 |
| TT16-6 | 6.4 | 7.8 | 5.6 | 11.9 | 17 | 33 |
| TT16-8 | 8.3 | 7.8 | 5.6 | 13.5 | 17 | 37 |
| TT16-10 | 10.5 | 7.8 | 5.6 | 16 | 17 | 38 |
| TT25-8 | 8.3 | 9.5 | 7.1 | 14 | 18 | 39 |
| TT25-10 | 10.5 | 9.5 | 7.1 | 16 | 18 | 42 |
| TT35-8 | 8.3 | 11 | 8.2 | 16.5 | 19 | 42 |
| TT35-10 | 10.5 | 11 | 8.2 | 16.5 | 19 | 46 |
| TT50-10 | 10.5 | 12.5 | 9.5 | 17.9 | 22 | 51 |
| TT50-12 | 13 | 12.5 | 9.5 | 17.9 | 22 | 51 |
| TT70-10 | 10.5 | 15 | 11.5 | 22 | 22 | 54 |
| TT70-12 | 13 | 15 | 11.5 | 22 | 22 | 54 |
| TT95-14 | 14.5 | 17 | 13.5 | 24.7 | 27 | 72 |
| TT95-16 | 16.5 | 17 | 13.5 | 24.7 | 27 | 72 |
| TT120-14 | 14.5 | 20 | 15.6 | 28.9 | 29 | 74 |
| TT120-16 | 16.5 | 20 | 15.6 | 28.9 | 29 | 74 |
| TT150-14 | 14.5 | 21 | 16.5 | 30.4 | 28 | 84 |
| TT150-16 | 16.5 | 21 | 16.5 | 30.4 | 28 | 84 |
| TT185-16 | 16.5 | 23.6 | 18.4 | 34 | 42 | 92 |
| TT240-16 | 16.5 | 26.4 | 21.2 | 41 | 45 | 98 |
| S-TT-6/4 | 4.3 | 5.5 | 3.8 | 10.3 | 11 | 25 |
| S-TT-6/5 | 5.3 | 5.5 | 3.8 | 10.3 | 11 | 25 |
| S-TT-6/6 | 6.4 | 5.5 | 3.8 | 10.3 | 11 | 26 |
| S-TT-6/8 | 8.3 | 5.5 | 3.8 | 14 | 11 | 29 |
| S-TT-10/4 | 4.3 | 6.8 | 4.7 | 11.9 | 11.5 | 26.5 |
| S-TT-10/5 | 5.3 | 6.8 | 4.7 | 11.9 | 11.5 | 27 |
| S-TT-10/6 | 6.4 | 6.8 | 4.7 | 11.9 | 11.5 | 28.5 |
| S-TT-10/8 | 8.3 | 6.8 | 4.7 | 15 | 11.5 | 31.5 |
| S-TT-10/1 | 10.5 | 6.8 | 4.7 | 18 | 11.5 | 35.5 |
| S-TT-16/5 | 5.3 | 7.8 | 5.6 | 11.9 | 16.5 | 32 |
| S-TT-16/6 | 6.4 | 7.8 | 5.6 | 11.9 | 16.5 | 34 |
| S-TT-16/8 | 8.3 | 7.8 | 5.6 | 15 | 16.5 | 36.5 |
| S-TT-16/1 | 10.5 | 7.8 | 5.6 | 18 | 16.5 | 40 |
| S-TT-25/6 | 6.4 | 9.4 | 7.1 | 13.5 | 18 | 36 |
| S-TT-25/8 | 8.3 | 9.4 | 7.1 | 15 | 18 | 39 |
| S-TT-25/1 | 10.5 | 9.4 | 7.1 | 18 | 18 | 44 |
| S-TT-25/1 | 13 | 9.4 | 7.1 | 21 | 18 | 46 |
| S-TT-35/6 | 6.4 | 11.3 | 8.7 | 16 | 19 | 37 |
| S-TT-35/8 | 8.3 | 11.3 | 8.7 | 16 | 16 | 38 |
| S-TT-35/1 | 10.5 | 11.3 | 8.7 | 19 | 19 | 45 |
| S-TT-35/1 | 13 | 11.3 | 8.7 | 21 | 19 | 47 |
| S-TT-50/6 | 6.4 | 12.6 | 9.8 | 17.9 | 22 | 44 |
| S-TT-50/8 | 8.3 | 12.6 | 9.8 | 17.9 | 22 | 46 |
| S-TT-50/1 | 10.5 | 12.6 | 9.8 | 20 | 22 | 50 |
| S-TT-50/1 | 13 | 12.6 | 9.8 | 21 | 22 | 54 |
| S-TT-70/8 | 8.3 | 14.7 | 11.5 | 21.5 | 23 | 49 |
| S-TT-70/1 | 10.5 | 14.7 | 11.5 | 21.5 | 25 | 55 |
| S-TT-70/1 | 13 | 14.7 | 11.5 | 21.5 | 23 | 55 |
| S-TT-95/8 | 8.3 | 16.9 | 13.5 | 24.7 | 30 | 58 |
| S-TT-95/1 | 10.5 | 16.9 | 13.5 | 24.7 | 30 | 61 |
| S-TT-95/1 | 13 | 16.9 | 13.5 | 24.7 | 30 | 63 |
| S-TT-95/1 | 14.5 | 16.9 | 13.5 | 24.7 | 30 | 67 |
| S-TT-95/1 | 16.5 | 16.9 | 13.5 | 27 | 30 | 70 |
| S-TT-120/ | 10.5 | 19.9 | 15.6 | 28.9 | 30.5 | 62 |
| S-TT-120/ | 13 | 19.9 | 15.6 | 28.9 | 30.5 | 67 |
| S-TT-120/ | 14.5 | 19.9 | 15.6 | 28.9 | 30.5 | 74 |
| S-TT-120/ | 16.5 | 19.9 | 15.6 | 28.9 | 30.5 | 74 |
| S-TT-150/ | 10.5 | 20.9 | 16.5 | 30.4 | 38 | 75 |
| S-TT-150/ | 13 | 20.9 | 16.5 | 30.4 | 38 | 81 |
| S-TT-150/ | 14.5 | 20.9 | 16.5 | 30.4 | 38 | 85 |
| S-TT-150/ | 16.5 | 20.9 | 16.5 | 30.4 | 38 | 85 |
| S-TT-185/ | 13 | 23.7 | 18.8 | 34 | 41 | 87 |
| S-TT-185/ | 14.5 | 23.7 | 18.8 | 34 | 41 | 91 |
| S-TT-185/ | 16.5 | 23.7 | 18.8 | 34 | 41 | 92 |
| S-TT-240/ | 13 | 26.2 | 21.2 | 38.4 | 45 | 93 |
| S-TT-240/ | 14.5 | 26.2 | 21.2 | 38.4 | 45 | 97 |
| S-TT-240/ | 16.5 | 26.2 | 21.2 | 38.4 | 45 | 98 |
| S-TT-240/ | 21 | 26.2 | 21.2 | 38.4 | 45 | 98 |
| S-TT-300/ | 14.5 | 28.6 | 23.4 | 41.7 | 49 | 100 |
| S-TT-300/ | 16.5 | 28.6 | 23.4 | 41.7 | 49 | 106 |
| S-TT-400/ | 16.5 | 32.8 | 26.8 | 47.8 | 54 | 115 |
