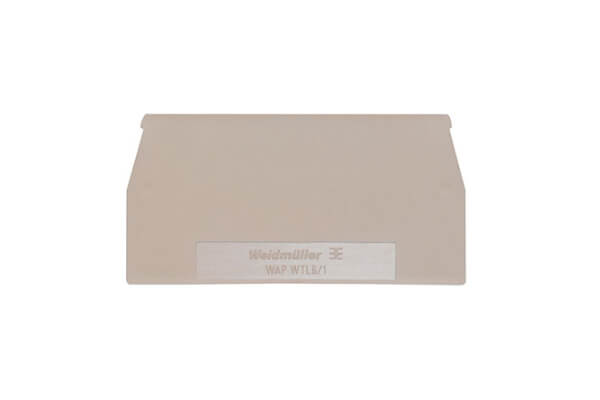

1068300000 WAP WTL6/1 W-Series, End plate

Category: WeidMuller

1068300000 WAP WTL6/1 W-Series, End plate

Specification：

Type	WAP WTL6/1
Order No.	1068300000
Version	W-Series, End plate

Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Installation advice	Feed-through (bushing), Direct mounting
Snap-on	No
