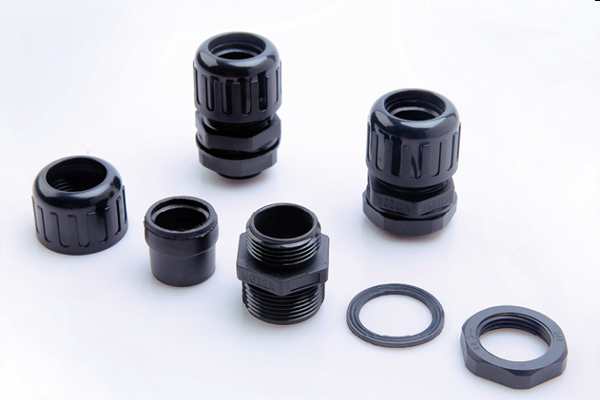

Nylon Corrugated Pipe Fittings Cable Gland Watertight NTPG
Specification:
Material: Nylon PA66
Flammability Rating: UL94-2
Certificate: CE, RoHS
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic temperature: -20°C to 80°C, short time to 100°C
(In mm)

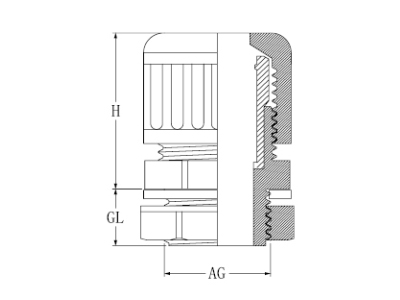

| Item | Conduit size | Thread O.D. AG |
Thread Length GL |
Pack | Item No. |
| PG7 | AD 10.0 | 12.5 | 9 | 50 | NTPG7-10.0 |
| PG9 | 15.2 | 9 | 50 | NTPG9-10.0 | |
| PG11 | AD 13.0 | 18.6 | 10 | 50 | NTPG 11-13.0 |
| PG13.5 | AD 15.8 | 20.4 | 10 | 50 | NTPG 13.5-15.8 |
| PG16 | 22.5 | 10.8 | 50 | NTPG 16-15.8 | |
| PG13.5 | AD 18.5 | 20.4 | 10 | 50 | NTPG 13.5-18.5 |
| PG16 | 22.5 | 10.8 | 50 | NTPG 16-18.5 | |
| PG16 | AD21.2 | 22.5 | 13 | 50 | NTPG 16-21.2 |
| PG21 | 28.3 | 13 | 50 | NTPG21-21.2 | |
| PG21 | AD28.5 | 28.3 | 13 | 50 | NTPG21-28.5 |
| PG29 | AD34.5 | 37 | 13 | 20 | NTPG29-34.5 |
| PG36 | AD42.5 | 47 | 13 | 10 | NTPG36-42.5 |
| PG48 | AD54.5 | 59.3 | 16 | 10 | NTPG48-54.5 |
| PG48 | AD60 | 59.3 | 16 | 10 | NTPG48-60 |
| G(PF)1/4 | AD 10.0 | 13.1 | 9 | 50 | NTPF1/4-10.0 |
| G(PF)3/8 | AD 13.0 | 16.6 | 15 | 50 | NTPF3/8-13.0 |
| G(PF)1/2 | AD 15.8 | 20.9 | 15 | 50 | NTPF 1/2-15.8 |
| G(PF)1/2 | AD 18.5 | 20.9 | 15 | 50 | NTPF 1/2-18.5 |
| G(PF)1/2 | AD21.2 | 20.9 | 15 | 50 | NTPF 1/2-21.2 |
| G(PF)3/4 | 26.4 | 15 | 50 | NTPF3/4-21.2 | |
| G(PF)3Z4 | AD28.5 | 26.4 | 15 | 50 | NTPF3/4-28.5 |
| G(PF)1 | AD34.5 | 33.2 | 15 | 20 | NTPF 1-34.5 |
| G(PF)1 1/4 | AD42.5 | 41.9 | 15 | 10 | NTPF 1 1/4-42.5 |
| G(PF)1 1/2 | AD54.5 | 48 | 15 | 10 | NTPF 1 1/2-54.5 |
| G(PF)2 | 60 | 15 | 10 | NTPF2-54.5 | |
| G(PF)1 1/2 | AD60 | 48 | 15 | 10 | NTPF 1 1/2-60 |
| G(PF)2 | 60 | 15 | 10 | NTPF2-60 |
