Compression Lugs Wire Lugs SG
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

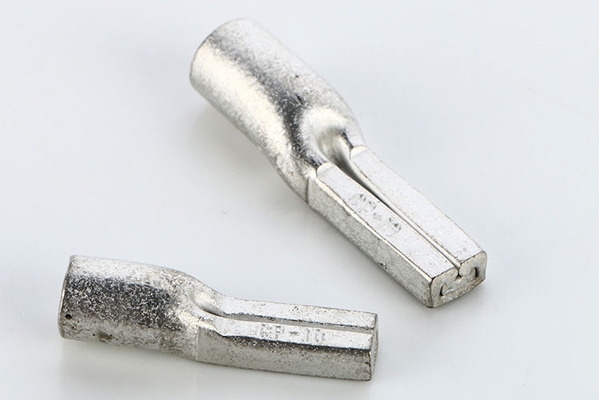

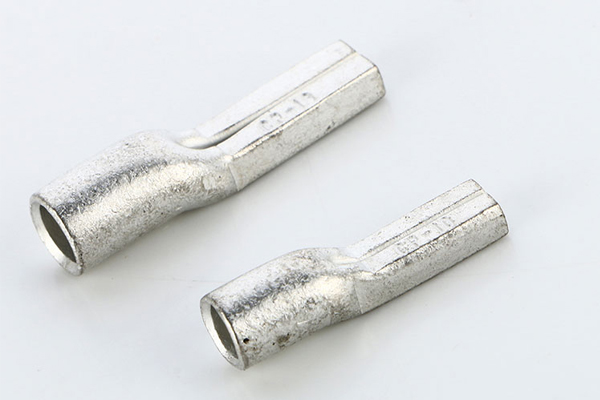

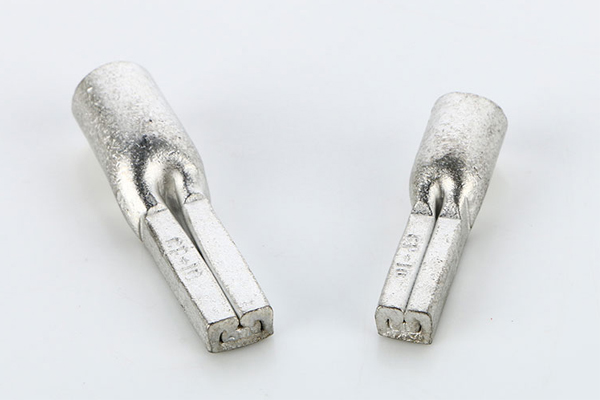

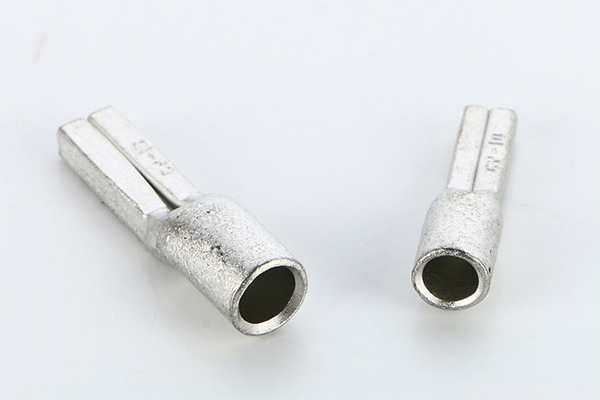

The Compression Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Compression Lugs are tin plated to provide excellent corrosion resistance.

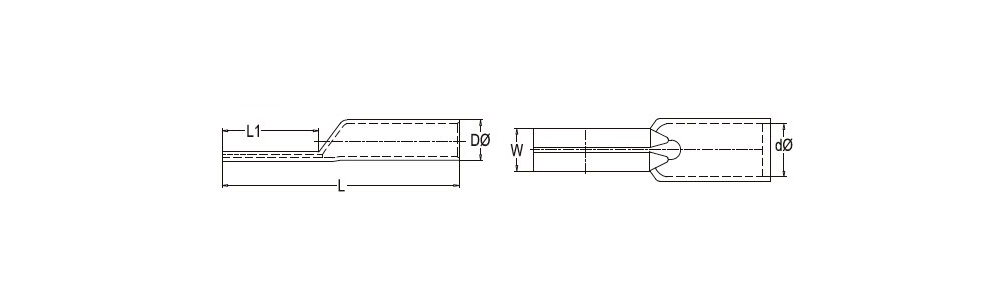

(In mm)
| Item No. | Dφ | dφ | W | L | L1 |
| CP-10 | 6.8 | 4.7 | 5 | 25 | 12 |
| CP-16 | 7.8 | 5.6 | 6 | 31 | 15 |
| CP-25 | 9.4 | 7.1 | 7 | 34 | 18 |
| CP-35 | 11.3 | 8.7 | 9 | 42 | 18 |
| CP-50 | 12.6 | 9.8 | 10 | 46 | 21 |
