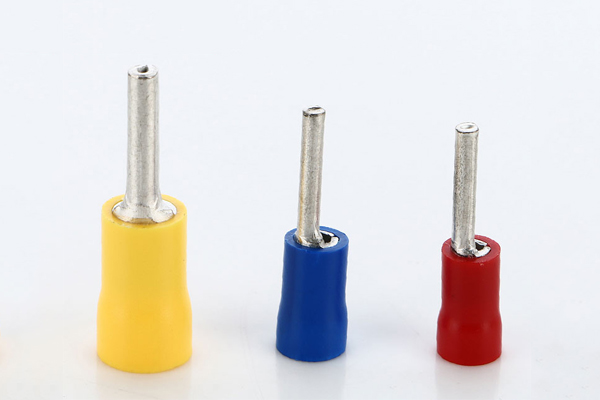

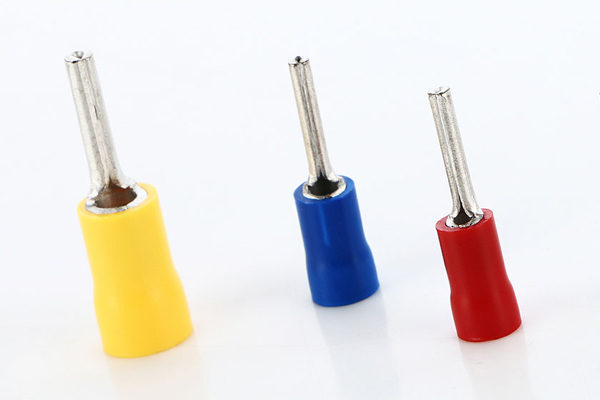

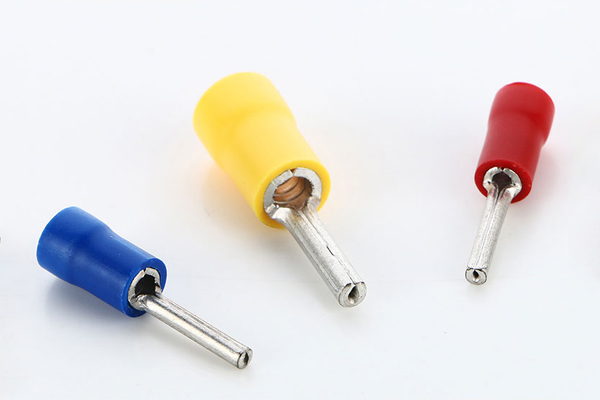

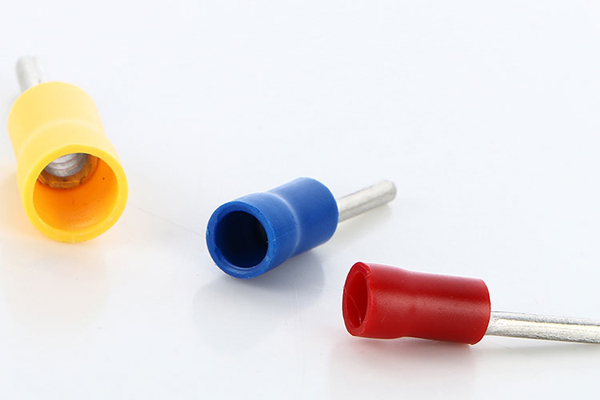

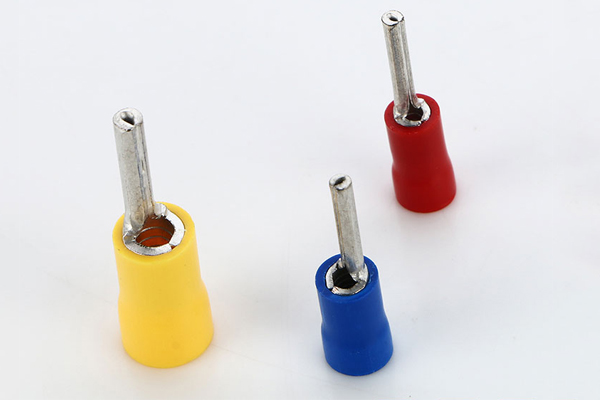

Insulated PIN Terminal Terminals Insulated Funnel Entry Wire Connector PINF
Specification:
Material: Copper, Tin-plated copper
Insulated Material: PVC
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated PIN Terminal offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(AWG22～16)Max. current: lmax=19A | ||||||

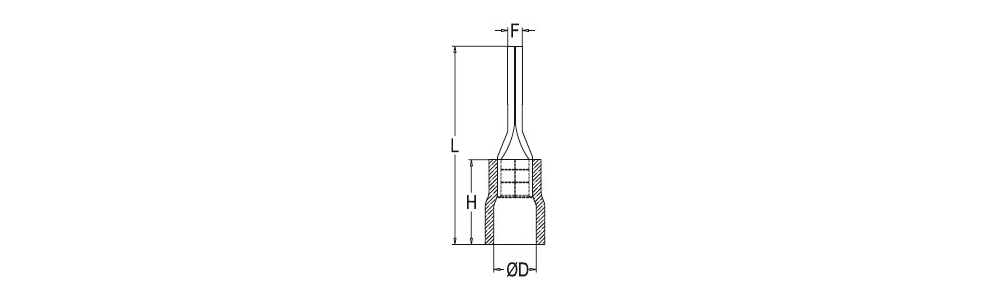

| Item No | DIMENSION | Color | ||||
| PVC | Nylon | Fφ | L | H | Dφ | Red |
| PINF1.25-9 | PINF1.25-9N | 1.9 | 19 | 11 | 4 | |
| PINF1.25-10 | PINF1.25-10N | 1.9 | 20 | 11 | 4 | |
| PINF1.25-12 | PINF1.25-12N | 1.9 | 22 | 11 | 4 | |
| PINF1.25-13 | PINF1.25-13N | 1.9 | 23 | 11 | 4 | |
| PINF1.25-18 | PINF1.25-18N | 1.9 | 28 | 11 | 4 | |
| Insulated square：1.5～2.5mm²(AWG16～14)Max. current: lmax=27A | ||||||
| Item No | DIMENSION | Color | ||||
| PVC | Nylon | Fφ | L | H | Dφ | Blue |
| PINF2-9 | PINF2-9N | 1.9 | 19 | 11 | 4.5 | |
| PINF2-10 | PINF2-10N | 1.9 | 20 | 11 | 4.5 | |
| PINF2-12 | PINF2-12N | 1.9 | 22 | 11 | 4.5 | |
| PINF2-13 | PINF2-13N | 1.9 | 23 | 11 | 4.5 | |
| PINF2-18 | PINF2-18N | 1.9 | 28 | 11 | 4.5 | |
| Insulated square：2.5～4mm²(AWG14～12)Max. current: lmax=37A | ||||||
| Item No | DIMENSION | Color | ||||
| PVC | Nylon | Fφ | L | H | Dφ | Blue |
| PINF3.5-10 | PINF3.5-10N | 2.8 | 20.5 | 13.5 | 6.4 | |
| PINF3.5-13 | PINF3.5-13N | 2.8 | 25.5 | 13.5 | 6.4 | |
| Insulated square：4～6mm²(AWG12～10)Max. current: lmax=48A | ||||||
| Item No | DIMENSION | Color | ||||
| PVC | Nylon | Fφ | L | H | Dφ | Yellow |
| PINF5.5-13 | PINF5.5-13N | 2.8 | 25.5 | 13.5 | 6.4 | |
