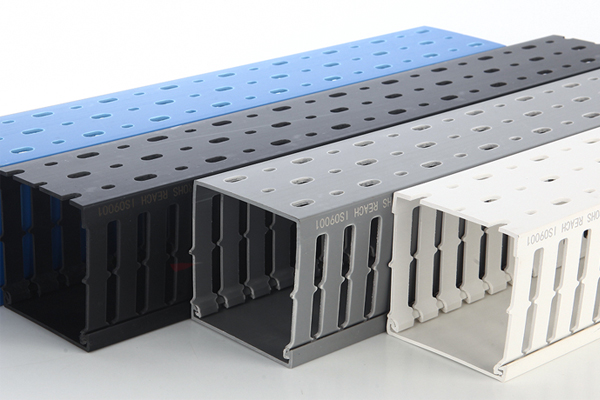

Halogen Free Slotted Wiring Duct, Cable Duct 8mm*12mm
Specification:
Material: Halogen free PC/ABS
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 110°C
Certificates: UL, CE, RoHS, REACH
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Wonderful price/performance ratio. The Halogen Free Wiring Duct is made of PC/ABS and in case of fire does not emit any halogenated toxic fumes.
| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BVD1616F-HF | 16*16 | 8 | 10 | 3~10pcs | 200M |
| BVD2516F-HF | 25*16 | 8 | 10 | 3~10pcs | 120M |
| BVD1520F-HF | 15*20 | 8.5 | 12 | 8~12pcs | 200M |
| BVD2020F-HF | 20*20 | 8.5 | 12 | 10~20pcs | 140M |
| BVD4020F-HF | 40*20 | 8 | 12 | 12~28pcs | 140M |
| BVD1525F-HF | 15*25 | 8 | 10 | 5~15pcs | 140M |
| BVD2025F-HF | 20*20 | 8 | 10 | 5~15pcs | 100M |
| BVD2525F-HF | 25*25 | 8 | 10 | 10~25pcs | / |
| BVD3025F-HF | 30*25 | 8 | 10 | 12~28pcs | / |
| BVD4025F-HF | 40*25 | 8 | 10 | 12~28pcs | / |
| BVD5025F-HF | 50*25 | 8 | 10 | 20~30pcs | / |
| BVD1530F-HF | 15*30 | 8 | 10 | 20~30pcs | 160M |
| BVD2030F-HF | 20*30 | 8 | 10 | 20~30pcs | 128M |
| BVD2530F-HF | 25*30 | 8 | 12 | 25~35pcs | 100M |
| BVD3030F-HF | 30*30 | 8 | 12 | 25~35pcs | 120M |
| BVD4030F-HF | 40*30 | 8 | 12 | 30~40pcs | 100M |
| BVD5030F-HF | 50*30 | 8 | 12 | 35~45pcs | 100M |
| BVD6030F-HF | 60*30 | 8 | 12 | 40~50pcs | 80M |
| BVD2233F-HF | 22*33 | 8 | 12 | 30~45pcs | 130M |
| BVD3333F-HF | 33*33 | 8 | 12 | 35~45pcs | / |
| BVD2035F-HF | 20*35 | 8 | 12 | 30~40pcs | / |
| BVD3535F-HF | 35*35 | 8 | 12 | 35~45pcs | 100M |
| BVD5035F-HF | 50*35 | 8 | 12 | 40~60pcs | 88M |
| BVD2040F-HF | 20*40 | 8 | 12 | 16~22pcs | / |
| BVD2540F-HF | 25*40 | 8 | 12 | 20~25pcs | 112M |
| BVD3540F-HF | 35*40 | 8 | 12 | 50~60pcs | / |
| BVD4040F-HF | 40*40 | 8 | 12 | 60~70pcs | 100M |
| BVD6040F-HF | 60*40 | 8 | 12 | 100~115pcs | 68M |
| BVD8040F-HF | 80*40 | 8 | 12 | 120~135pcs | 48M |
| BVD10040F-HF | 100*40 | 8 | 12 | 120~135pcs | 36M |
| BVD12040F-HF | 120*40 | 8 | 12 | 140-155pcs | / |
| BVD2545F-HF | 25*45 | 8 | 12 | 20~25pcs | 100M |
| BVD3345F-HF | 33*45 | 8 | 12 | 40~55pcs | 104M |
| BVD4545F-HF | 45*45 | 8 | 12 | 60~70pcs | 72M |
| BVD6545F-HF | 65*45 | 8 | 12 | 110~120pcs | 50M |
| BVD2050F-HF | 20*50 | 8 | 12 | 18~28pcs | / |
| BVD2550F-HF | 25*50 | 8 | 12 | 20~30pcs | 100M |
| BVD3050F-HF | 30*50 | 8 | 12 | 25~40pcs | 84M |
| BVD3550F-HF | 35*50 | 8 | 12 | 40~60pcs | 80M |
| BVD4050F-HF | 40*50 | 8 | 12 | 60~70pcs | 72M |
| BVD4550F-HF | 45*50 | 8 | 12 | 70~80pcs | 68M |
| BVD5050F-HF | 50*50 | 8 | 12 | 80~90pcs | 60M |
| BVD5550F-HF | 55*50 | 8 | 12 | 80~90pcs | 48M |
| BVD6050F-HF | 60*50 | 8 | 12 | 100~120pcs | 52M |
| BVD7550F-HF | 75*50 | 8 | 12 | 120~140pcs | 40m |
| BVD8050F-HF | 80*50 | 8 | 12 | 160~180pcs | 40M |
| BVD10050F-HF | 100*50 | 8 | 12 | 200~250pcs | 28M |
| BVD12555F-HF | 125*55 | 8 | 12 | 220~270pcs | / |
| BVD2060F-HF | 20*60 | 8 | 12 | 35~45pcs | / |
| BVD2560F-HF | 25*60 | 8 | 12 | 40~50pcs | 100M |
| BVD3060F-HF | 30*60 | 8 | 12 | 60~80pcs | 84M |
| BVD3560F-HF | 35*60 | 8 | 12 | 90~105pcs | 80M |
| BVD4060F-HF | 40*60 | 8 | 12 | 100~115pcs | 72M |
| BVD4560F-HF | 45*60 | 8 | 12 | 110~125pcs | 60M |
| BVD5060F-HF | 50*60 | 8 | 12 | 120~135pcs | 60M |
| BVD6060F-HF | 60*60 | 8 | 12 | 120~135pcs | 48M |
| BVD8060F-HF | 80*60 | 8 | 12 | 180~210pcs | 36M |
| BVD10060F-HF | 100*60 | 8 | 12 | 240~290pcs | 32M |
| BVD11060F-HF | 110*60 | 8 | 12 | 250~300pcs | 48M |
| BVD12060F-HF | 120*60 | 8 | 12 | 260~320pcs | / |
| BVD15060F-HF | 150*60 | 8 | 12 | 300~360pcs | 24M |
| BVD2565F-HF | 25*65 | 8 | 12 | 40~50pcs | 88M |
| BVD3365F-HF | 33*65 | 8 | 12 | 40~70pcs | 80M |
| BVD4565F-HF | 45*65 | 8 | 12 | 110~120pcs | 60M |
| BVD6565F-HF | 65*65 | 8 | 12 | 180~200pcs | 40M |
| BVD7265F-HF | 72*65 | 8 | 12 | 180~230pcs | 32M |
| BVD2575F-HF | 25*75 | 8 | 12 | 180-210pcs | / |
| BVD3575F-HF | 35*75 | 8 | 12 | 180-210pcs | / |
| BVD5075F-HF | 50*75 | 8 | 12 | 180~210pcs | 40M |
| BVD7575F-HF | 75*75 | 8 | 12 | 200~240pcs | 24M |
| BVD10075F-HF | 100*75 | 8 | 12 | 240~280pcs | 24M |
| BVD2580F-HF | 25*80 | 8 | 12 | 100~120pcs | 72M |
| BVD3080F-HF | 30*80 | 8 | 12 | 110~125pcs | 56M |
| BVD3580F-HF | 35*80 | 8 | 12 | 110~130pcs | 56M |
| BVD4080F-HF | 40*80 | 8 | 12 | 140~160pcs | 48M |
| BVD4580F-HF | 45*80 | 8 | 12 | 140~160pcs | 40M |
| BVD5080F-HF | 50*80 | 8 | 12 | 160~180pcs | 40M |
| BVD5580F-HF | 55*80 | 8 | 12 | 160~180pcs | 32M |
| BVD6080F-HF | 60*80 | 8 | 12 | 180~210pcs | 32M |
| BVD8080F-HF | 80*80 | 8 | 12 | 240~290pcs | 24M |
| BVD10080F-HF | 100*80 | 8 | 12 | 260~350pcs | 24M |
| BVD12080F-HF | 120*80 | 8 | 12 | 280~380pcs | 16M |
| BVD14080F-HF | 140*80 | 8 | 12 | 350~450pcs | 16M |
| BVD16080F-HF | 160*80 | 8 | 12 | 450-550pcs | / |
| BVD25100F-HF | 25*100 | 8 | 12 | 110~160pcs | 60M |
| BVD33100F-HF | 33*100 | 8 | 12 | 130~175pcs | 44M |
| BVD40100F-HF | 40*100 | 8 | 12 | 130~175pcs | 32M |
| BVD50100F-HF | 50*100 | 8 | 12 | 220~250pcs | 40M |
| BVD60100F-HF | 60*100 | 8 | 12 | 240~290pcs | 32M |
| BVD70100F-HF | 70*100 | 8 | 12 | 250~310pcs | 24M |
| BVD75100F-HF | 75*100 | 8 | 12 | 260~350pcs | 24M |
| BVD80100F-HF | 80*100 | 8 | 12 | 260~350pcs | 24M |
| BVD100100F-HF | 100*100 | 8 | 12 | 300~400pcs | 24M |
| BVD120100F-HF | 120*100 | 8 | 12 | 350~450pcs | 16M |
| BVD150100F-HF | 150*100 | 8 | 12 | 400~650pcs | 16M |
| BVD150130F-HF | 150*130 | 8 | 12 | 400~650pcs | 8M |
| BVD160100F-HF | 160*100 | 8 | 12 | 500-750pcs | / |
| BVD100130F-HF | 100*130 | 8 | 12 | 350-450pcs | 24M |
| BVD200100F-HF | 200*100 | 8 | 12 | 600~800pcs | / |
| BVD200150F-HF | 200*150 | 8 | 12 | 900-1200pcs | / |
| BVD200200F-HF | 200*200 | 8 | 12 | 1200-1600pcs |
