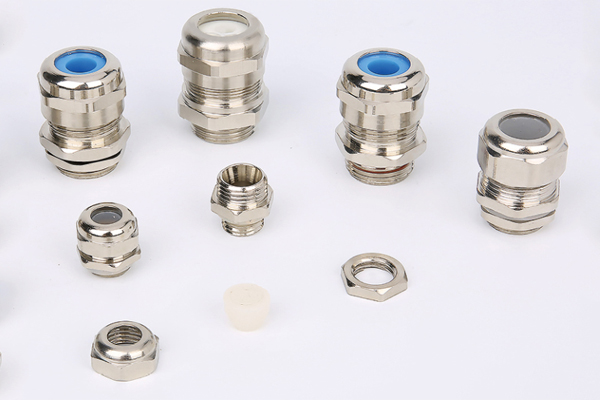

High Temperature Resistant Brass Cable Gland
Specification:
Material:
Nickel-plated brass
Hermetic seal: Silicone rubber
O-ring: Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature: -60°C to 250°C
Certificate: CE, RoHS, REACH approved
Brass Cable Gland for High-temperature resistant which operating temperatures are between -60 °C to 250 ° C.

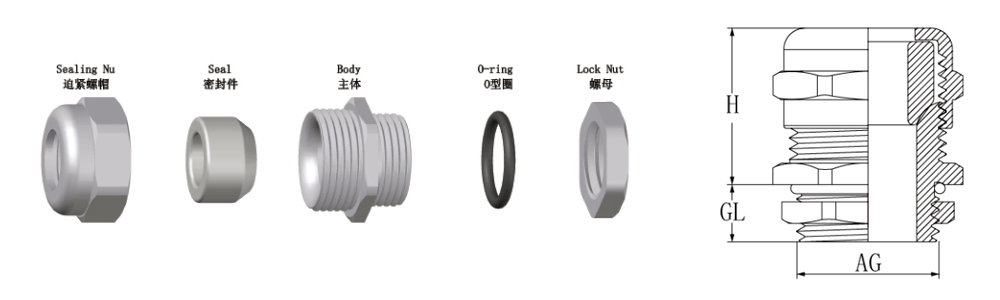

(In mm)
| Item | Cable Range | Thread Length GL | Thread O.D. AG | Spanner size | Item No. |
| M12X1.5 | 3-7 | 7 | 12 | 16/14 | BHTM12S |
| M12X1.5 | 4-8 | 7 | 12 | 16/14 | BHTM12S-8 |
| M14X1.5 | 4-8 | 7 | 14 | 18/17 | BHTM14S |
| M16X1.5 | 5-9 | 8 | 16 | 20/18 | BHTM16S |
| M18X1.5 | 8-12 | 8 | 18 | 22/20 | BHTM18S |
| M20X1.5 | 8-12 | 8 | 20 | 24/22 | BHTM20S |
| Item | Cable Range | Thread Length GL | Joint Length H | Spanner size | |||
| M | PG | G | NPT | ||||
| M12X1.5 | PG7 | G1/4 | NPT1/4 | 4-7 | 7 | 21 | 18 |
| M16X1.5 | PG9 | 4-11 | 7 | 25 | 20 | ||
| M18X1.5 | PG11 | G3/8 | NPT3/8 | 4-11 | 7 | 25 | 22 |
| M20X1.5 | PG13.5 | G1/2 | NPT1/2 | 5-14 | 8 | 29 | 24 |
| M22X1.5 | PG16 | 5-14 | 8 | 29 | 24 | ||
| M25X1.5 | PG21 | G3/4 | NPT3/4 | 11-20 | 9 | 30 | 30 |
| M32X1.5 | PG29 | G1 | NPT1 | 15-25 | 10 | 32 | 36 |
| M40X1.5 | PG36 | G1-1/4 | NPT1-1/4 | 22-32 | 11 | 35 | 44 |
| M50X1.5 | PG42 | G1-1/2 | NPT1-1/2 | 31-42 | 13 | 37 | 58 |
| M63X1.5 | PG48 | G2 | NPT2 | 41-51 | 14 | 40 | 68 |
| M72X2 | 50-54 | 16 | 47 | 81 | |||
