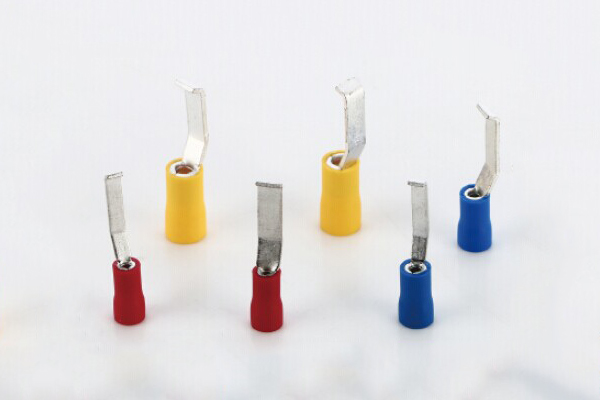

Hooked Blade Terminal Crimp Terminals Electrical Connector BLBV
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Hooked Blade Terminal offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

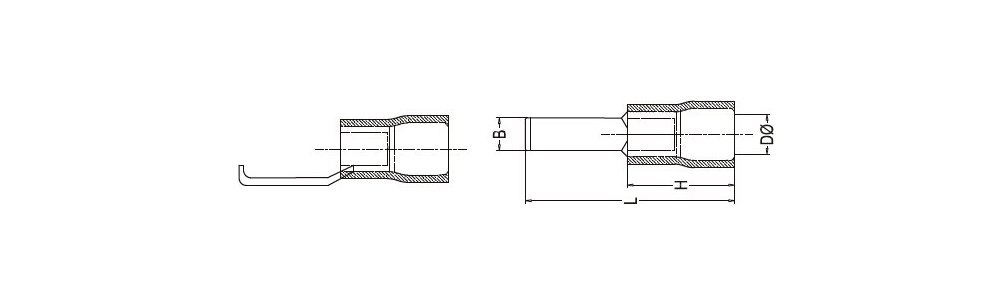

| Item No. | AWG mm² |
B mm |
L mm |
H mm |
Dφ mm |
Color |
| BLBV1.25-3 | 22-16 0.5-1.5 19A 1000PCS |
3 | 26.8 | 10 | 4.3 | Red |
| BLBV1.25-4.6 | 4.6 | 26.8 | 10 | 4.3 | Red | |
| BLBV2-3 | 16-14 1.5-2.5 27A 1000pcs |
3 | 26.8 | 10 | 4.9 | Blue |
| BLBV2-4.6 | 4.6 | 26.8 | 10 | 4.9 | Blue | |
| BLBV5.5-3 | 12/10 4/6 48A 500PCS |
3 | 29.3 | 13 | 6.7 | Yellow |
| BLBV5.5-4.6 | 4.6 | 29.3 | 13 | 6.7 | Yellow |
