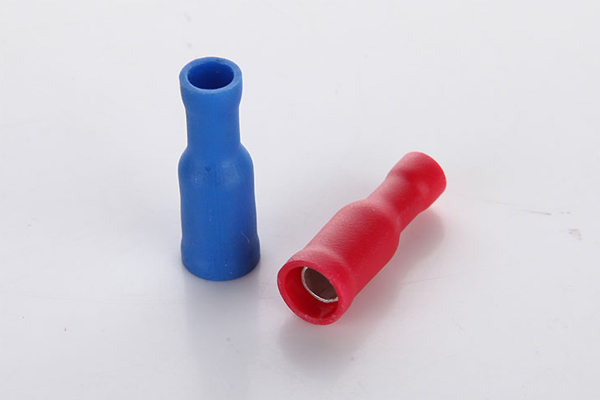

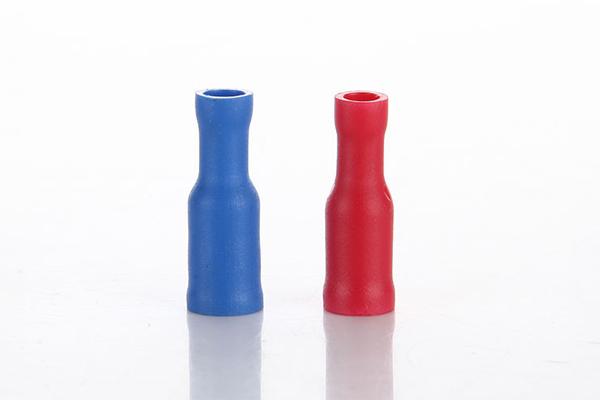

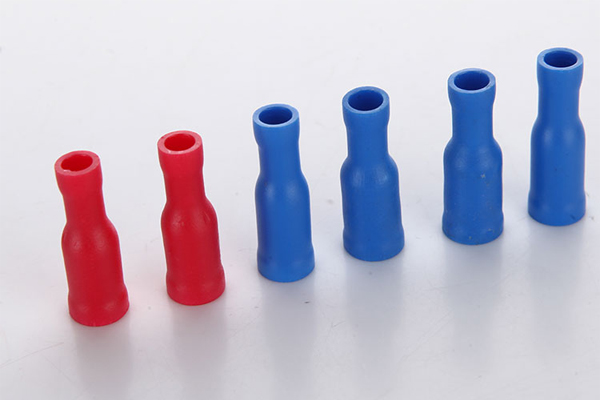

Insulated Bullet Terminals Sockets Wire Connector BFA
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Bullet Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(22～16) Max. current: lmax=10A | ||||||||
| Item No | Thickness of material |

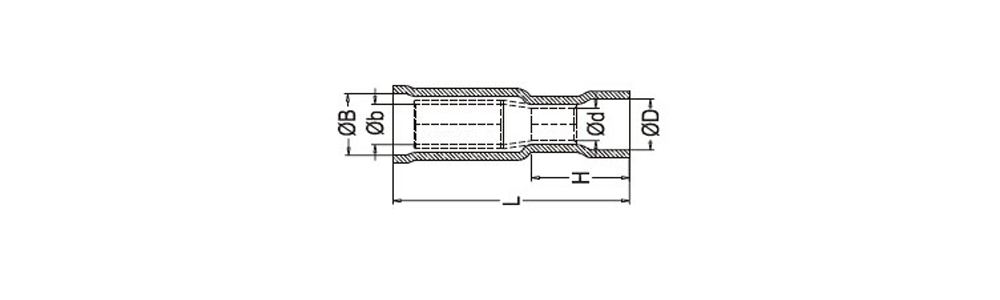

DIMENSION | Color | |||||
| bφ | Bφ | Dφ | d | F | L | |||
| mm | mm | mm | mm | mm | mm | mm | ||
| FA1.25-156 | 0.4 | 4 | 6.3 | 2.7 | 1.7 | 13 | 24.5 | Red |
| Insulated square：1.5～2.5mm²(16～14) Max. current: lmax=15A | ||||||||
| Item No | Thickness of material |
DIMENSION | Color | |||||
| bφ | Bφ | Dφ | d | F | L | |||
| mm | mm | mm | mm | mm | mm | mm | ||
| FA2-156 | 0.4 | 4 | 6.3 | 3.3 | 2.3 | 14 | 24.5 | Blue |
| FA2-195 | 0.4 | 5 | 7 | 3.3 | 2.3 | 14 | 24.5 | |
| Insulated square：4～6mm²(12～10) Max. current: lmax=24A | ||||||||
| Item No | Thickness of material |
DIMENSION | Color | |||||
| bφ | Bφ | Dφ | dφ | F | L | |||
| mm | mm | mm | mm | mm | mm | mm | ||
| FA5.5-195 | 0.4 | 5 | 7 | 4.5 | 3.4 | 14 | 29.5 | Yellow |
