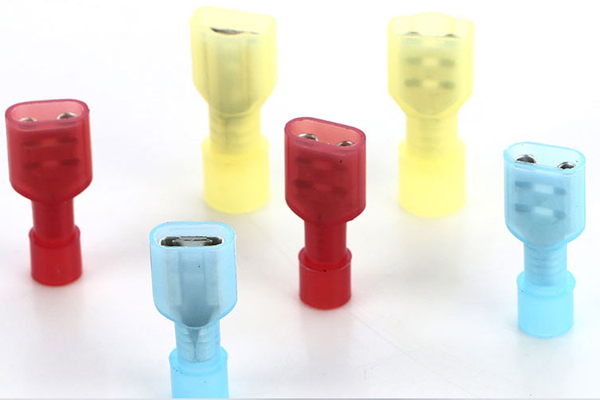

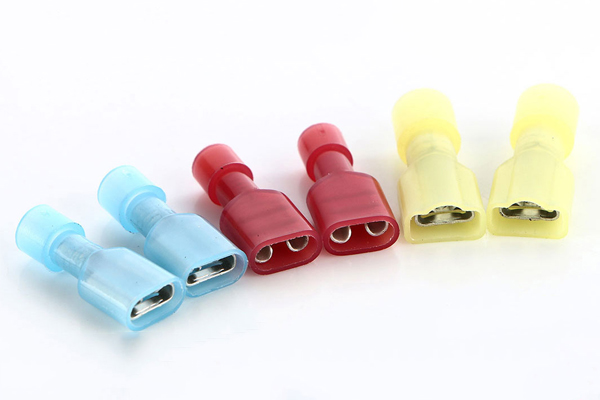

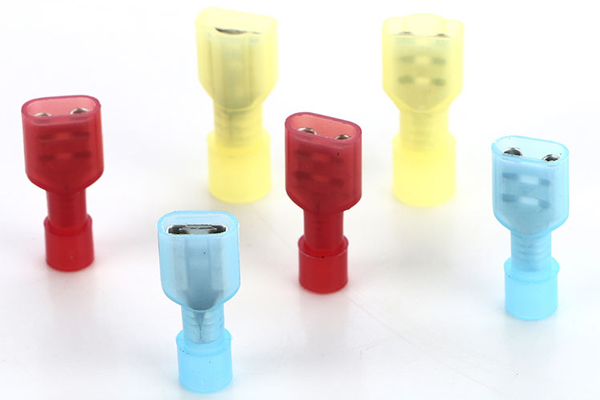

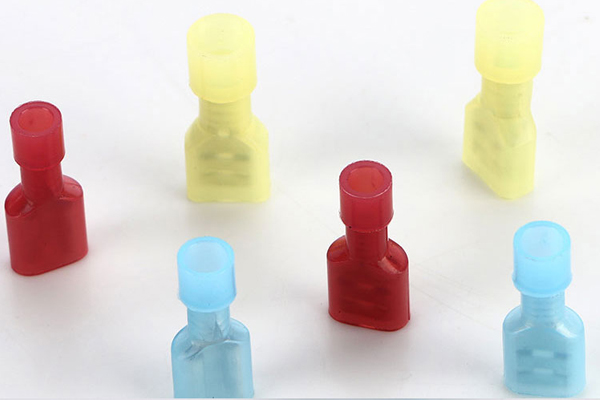

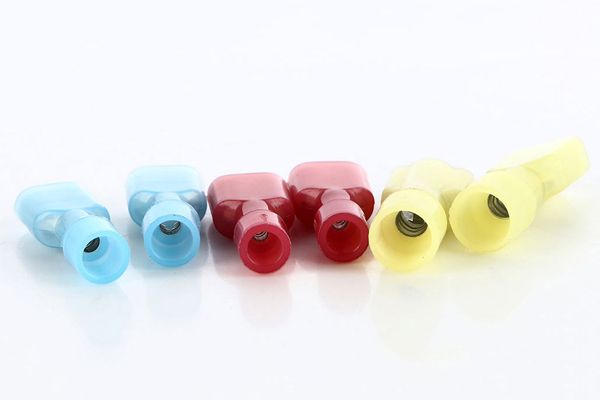

Insulated Female Terminals Electrical Terminal Wire Connector PNA
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Nylon, PA66
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Female Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(AWG22～16) Max. current: lmax＝10A | |||||||

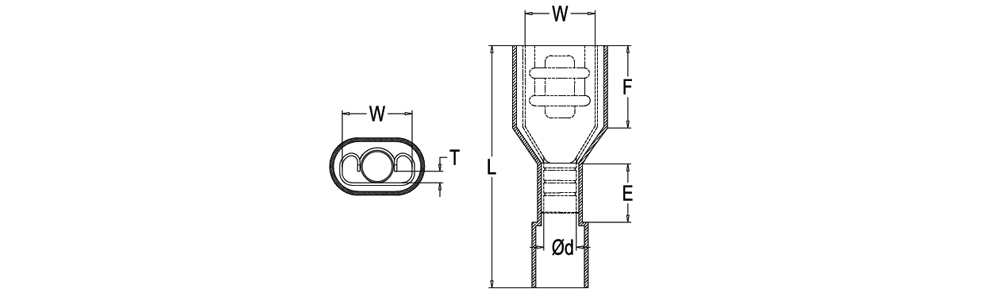

| Item No. | NEMA TAB T×W mm | DIMENSION | Color | ||||
| W mm | F mm | E mm | dφ mm | L mm | |||
| PN1.25-110A | 0.8×2.8 | 2.8 | 6.5 | 5 | 1.7 | 19.5 | Red |
| PN1.25-187A | 0.8×4.8 | 4.8 | 6.5 | 5 | 1.7 | 20 | |
| PN1.25-250A | 0.8×6.35 | 6.6 | 8 | 5 | 1.7 | 22 | |
| Insulated square：1.5～2.5mm²(AWG16～14) Max. current: lmax＝15A | |||||||
| Item No. | NEMA TAB T×W mm | DIMENSION | Color | ||||
| W mm | F mm | E mm | dφ mm | L mm | |||
| PN2-187A | 0.8×4.8 | 4.8 | 6.5 | 5 | 2.3 | 20 | Blue |
| PN2-250A | 0.8×6.35 | 6.6 | 8 | 5 | 2.3 | 22 | |
| Insulated square：4～6mm²(AWG12～10) Max. current: lmax＝24A | |||||||
| Item No. | NEMA TAB T×W mm | DIMENSION | Color | ||||
| W mm | F mm | E mm | dφ mm | L mm | |||
| PN5.5-250A | 0.8×6.35 | 6.6 | 8 | 6 | 3.4 | 25.5 | Yellow |
