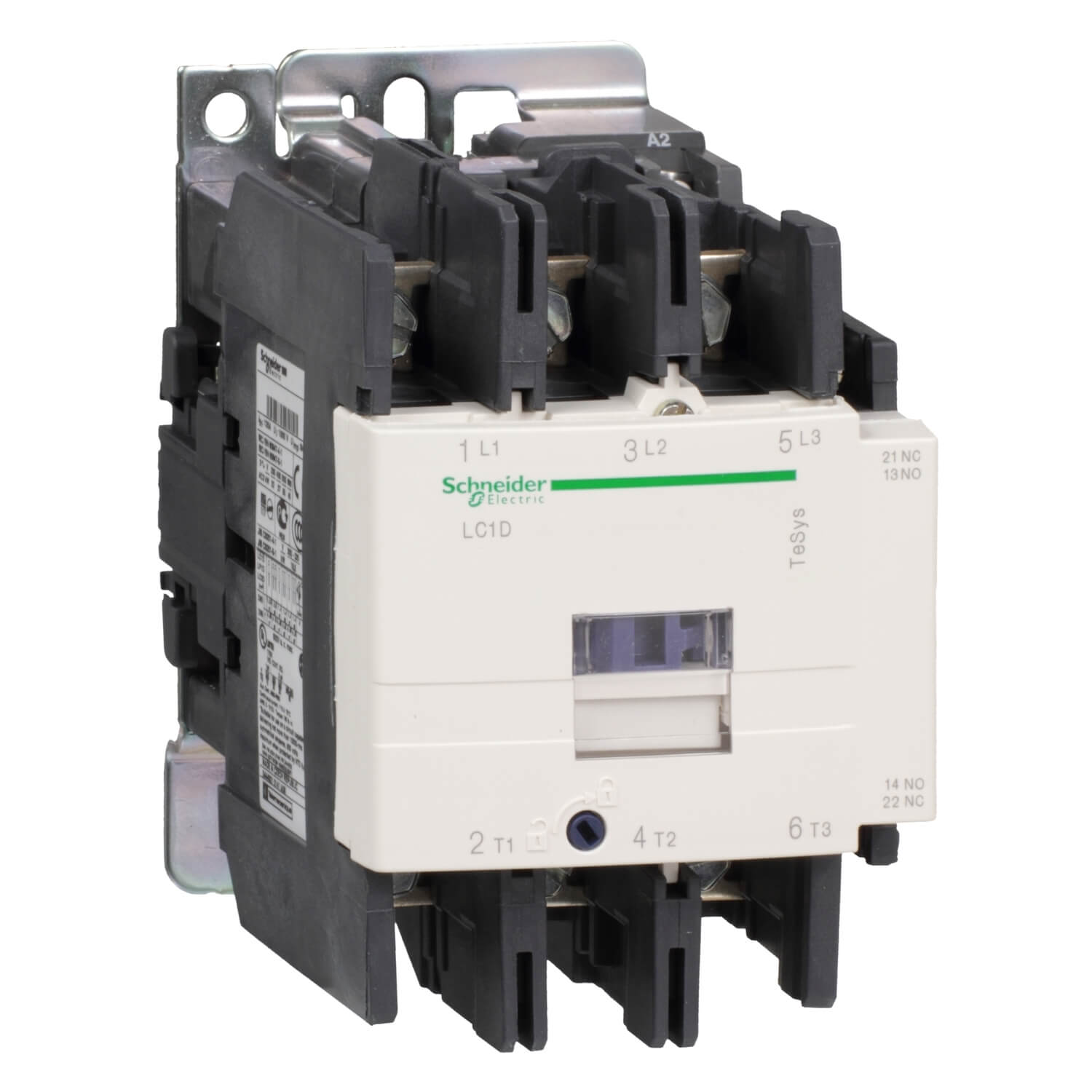

Specification:
range |
TeSys
|
---|---|
product name |
TeSys D
|
product or component type |
Contactor
|
device short name |
LC1D
|
contactor application |
Motor control
Resistive load |
utilisation category |
AC-1
AC-3 AC-4 |
poles description |
3P
|
power pole contact composition |
3 NO
|
[Ue] rated operational voltage |
<= 690 V AC for power circuit
<= 300 V DC 25…400 Hz for power circuit |
[Ie] rated operational current |
125 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit
80 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit |
motor power kW |
22 kW at 220…230 V AC 50/60 Hz AC-3
37 kW at 380…400 V AC 50/60 Hz AC-3 45 kW at 660…690 V AC 50/60 Hz AC-3 45 kW at 415…440 V AC 50/60 Hz AC-3 55 kW at 500 V AC 50/60 Hz AC-3 45 kW at 1000 V AC 50/60 Hz AC-3 15 kW at 400 V AC 50/60 Hz AC-4 |
motor power HP (UL / CSA) |
20 hp at 200/208 V AC 50/60 Hz for 3 phases motors
7.5 hp at 115 V AC 50/60 Hz for 1 phase motors 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors 25 hp at 230/240 V AC 50/60 Hz for 3 phases motors 60 hp at 460/480 V AC 50/60 Hz for 3 phases motors 60 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
control circuit type |
AC 50/60 Hz
|
[Uc] control circuit voltage |
240 V AC 50/60 Hz
|
auxiliary contact composition |
1 NO + 1 NC
|
[Uimp] rated impulse withstand voltage |
Conforming to IEC 60947
|
overvoltage category |
III
|
[Ith] conventional free air thermal current |
125 A at <= 60 °C for power circuit
10 A at <= 60 °C for signalling circuit |
Irms rated making capacity |
1100 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
rated breaking capacity |
1100 A at 440 V for power circuit conforming to IEC 60947
|
[Icw] rated short-time withstand current |
135 A <= 40 °C 10 min power circuit
100 A 1 s signalling circuit 120 A 500 ms signalling circuit 140 A 100 ms signalling circuit 640 A <= 40 °C 10 s power circuit 990 A <= 40 °C 1 s power circuit 320 A <= 40 °C 1 min power circuit |
associated fuse rating |
160 A gG at <= 690 V coordination type 2 for power circuit
200 A gG at <= 690 V coordination type 1 for power circuit 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
average impedance |
0.8 mOhm at 50 Hz – Ith 125 A for power circuit
|
[Ui] rated insulation voltage |
1000 V for power circuit conforming to IEC 60947-4-1
600 V for power circuit certifications CSA 600 V for power circuit certifications UL 690 V for signalling circuit conforming to IEC 60947-1 600 V for signalling circuit certifications CSA 600 V for signalling circuit certifications UL |
electrical durability |
0.8 Mcycles 125 A AC-1 at Ue <= 440 V
1.5 Mcycles 80 A AC-3 at Ue <= 440 V |
power dissipation per pole |
5.1 W AC-3
12.5 W AC-1 |
safety cover |
With
|
mounting support |
Plate
Rail |
standards |
CSA C22.2 No 14
EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
product certifications |
BV
CCC CSA DNV GL GOST LROS (Lloyds register of shipping) RINA UL |
connections – terminals |
Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² – cable stiffness: flexible – with cable end
Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end Control circuit : screw clamp terminals 2 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: solid – without cable end Control circuit : screw clamp terminals 2 cable(s) 1…4 mm² – cable stiffness: solid – without cable end Control circuit : screw clamp terminals 1 cable(s) 1…2.5 mm² – cable stiffness: flexible – with cable end Power circuit : connector 1 cable(s) 4…50 mm² – cable stiffness: flexible – without cable end Power circuit : connector 2 cable(s) 4…25 mm² – cable stiffness: flexible – without cable end Power circuit : connector 1 cable(s) 4…50 mm² – cable stiffness: flexible – with cable end Power circuit : connector 2 cable(s) 4…16 mm² – cable stiffness: flexible – with cable end Power circuit : connector 1 cable(s) 4…50 mm² – cable stiffness: solid – without cable end Power circuit : connector 2 cable(s) 4…25 mm² – cable stiffness: solid – without cable end |
tightening torque |
Power circuit : 9 N.m – on connector – with screwdriver flat Ø 6 to Ø 8 mm
Power circuit : 9 N.m – on connector hexagonal 4 mm Control circuit : 1.2 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm Control circuit : 1.2 N.m – on screw clamp terminals – with screwdriver Philips No 2 |
operating time |
20…35 ms closing
6…20 ms opening |
safety reliability level |
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
mechanical durability |
4 Mcycles
|
operating rate |
3600 cyc/h at <= 60 °C
|
coil technology |
Without built-in suppressor module
|
---|---|
control circuit voltage limits |
0.85…1.1 Uc operational at 55 °C, AC 60 Hz
0.3…0.6 Uc drop-out at 55 °C, AC 50/60 Hz 0.8…1.1 Uc operational at 55 °C, AC 50 Hz |
inrush power in VA |
245 VA at 20 °C (cos ϕ 0.75) 60 Hz
245 VA at 20 °C (cos ϕ 0.75) 50 Hz |
hold-in power consumption in VA |
26 VA at 20 °C (cos ϕ 0.3) 60 Hz
26 VA at 20 °C (cos ϕ 0.3) 50 Hz |
heat dissipation |
6…10 W at 50/60 Hz
|
auxiliary contacts type |
Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1
Type mirror contact (1 NC) conforming to IEC 60947-4-1 |
signalling circuit frequency |
25…400 Hz
|
minimum switching current |
5 mA for signalling circuit
|
minimum switching voltage |
17 V for signalling circuit
|
non-overlap time |
1.5 ms on de-energisation (between NC and NO contact)
1.5 ms on energisation (between NC and NO contact) |
insulation resistance |
> 10 MOhm for signalling circuit
|
IP degree of protection |
IP20 front face conforming to IEC 60529
|
---|---|
protective treatment |
TH conforming to IEC 60068-2-30
|
pollution degree |
3
|
ambient air temperature for operation |
-5…60 °C
|
ambient air temperature for storage |
-60…80 °C
|
permissible ambient air temperature around the device |
-40…70 °C at Uc
|
operating altitude |
3000 m without derating in temperature
|
fire resistance |
850 °C conforming to IEC 60695-2-1
|
flame retardance |
V1 conforming to UL 94
|
mechanical robustness |
Vibrations contactor open 2 Gn, 5…300 Hz
Shocks contactor open 8 Gn for 11 ms Vibrations contactor closed 3 Gn, 5…300 Hz Shocks contactor closed 10 Gn for 11 ms |
height |
127 mm
|
width |
85 mm
|
depth |
130 mm
|
product weight |
1.59 kg
|
