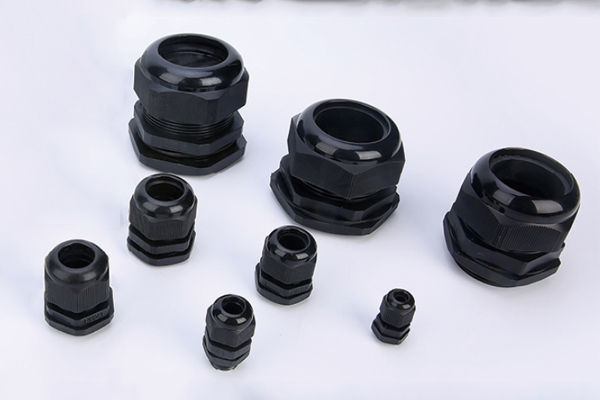

Metric Lengthen Cable Gland Nylon 66
Specification:
Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved
waterproof. IP68
(In mm)
| Item | Cable Range | Thread Length GL | Thread O.D. AG | Spanner size | Item No. |
| M12X1.5 | 3-6.5 | 15 | 12 | 18/16 | NM12L |
| M12X1.5 | 4-8 | 15 | 12 | 18/16 | NM12-8L |
| M16X1.5 | 4-8 | 15 | 16 | 22/19 | NM16L |
| M16X1.5 | 5-10 | 15 | 16 | 22/19 | NM16-10L |
| M18X1.5 | 5-10 | 15 | 18 | 24/22 | NM18L |
| M20X1.5 | 6-11 | 15 | 20 | 27/24 | NM20L |
| M20X1.5 | 10-14 | 15 | 20 | 27724 | NM20-14L |
| M22X1.5 | 10-13 | 15 | 22 | 30/2 了 | NM22L |
| M25X1.5 | 12-15 | 15 | 25 | 31/28 | NM25L |
| M25X1.5 | 13-18 | 15 | 25 | 31/28 | NM25-18L |
| M27X1.5 | 13-18 | 15 | 27 | 35/33 | NM27L |
| M30X1.5 | 16-21 | 15 | 30 | 37735 | NM30L |
| M32X1.5 | 16-21 | 15 | 32 | 38/35 | NM32L |
| M36X1.5 | 18-25 | 15 | 36 | 45/42 | NM36L |
| M40X1.5 | 22-32 | 18 | 40 | 52/52 | NM40L |
| M50X1.5 | 32-38 | 20 | 50 | 62/58 | NM50L |
| M63X1.5 | 37-44 | 20 | 63 | 72/64 | NM63L |
