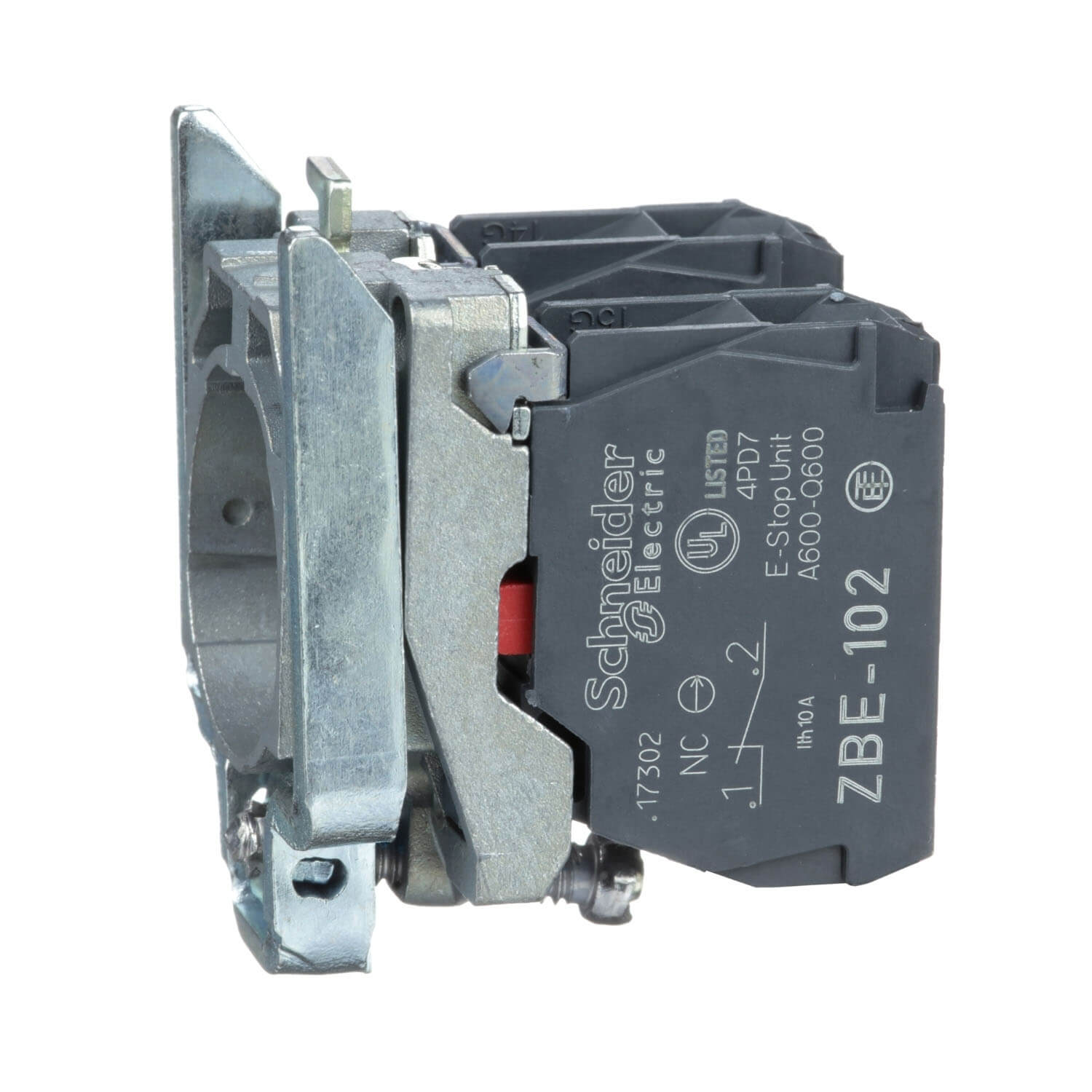

ZB4BZ104 Single contact block with body/fixing collar, metal, screw clamp terminal, 2 NC
Specification:
| range of product | Harmony XB4 | |
|---|---|---|
| product or component type | Complete body/contact assembly | |
| device short name | ZB4 | |
| fixing collar material | Zamak | |
| sale per indivisible quantity | 1 | |
| head type | Standard | |
| contacts type and composition | 2 NC | |
| contact operation | Slow-break | |
| contact block type | Single | |
| device composition | Body Fixing collar | |
| connections – terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| CAD overall width | 30 mm | |
|---|---|---|
| CAD overall height | 47 mm | |
| CAD overall depth | 37 mm | |
| terminals description ISO n°1 | (11-12)NC | |
| net weight | 0.062 kg | |
| contacts usage | Standard contacts | |
| positive opening | With conforming to EN/IEC 60947-5-1 appendix K | |
| operating travel | 1.5 mm (NC changing electrical state) 4.3 mm (total travel) | |
| mechanical durability | 5000000 cycles | |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 | |
| shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver | |
| contacts material | Silver alloy (Ag/Ni) | |
| short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 | |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 | |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 | |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 | |
| electrical durability | 10000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 10000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 10000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 10000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 10000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C | |
| electrical reliability | Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 | |
| device presentation | Basic sub-assemblies |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| IP degree of protection | IP20 conforming to IEC 60529 | |
| standards | JIS C8201-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-1 JIS C8201-1 | |
| product certifications | DNV CSA GL UL LROS (Lloyds register of shipping) RINA BV | |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 61 g | |
| Package 1 Height | 3.4 cm | |
| Package 1 width | 4.4 cm | |
| Package 1 Length | 5.4 cm | |
| Package 2 Weight | 305 g | |
| Package 3 Weight | 12.695 kg |
