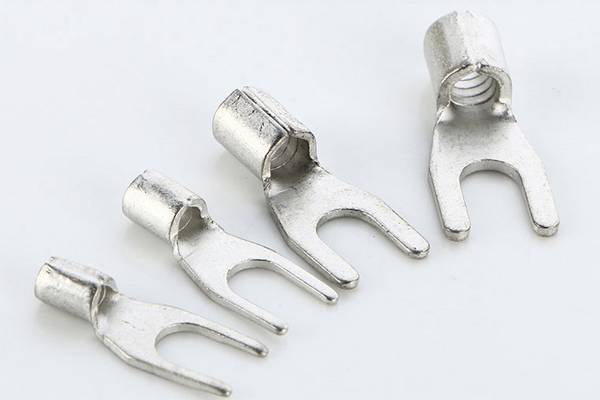

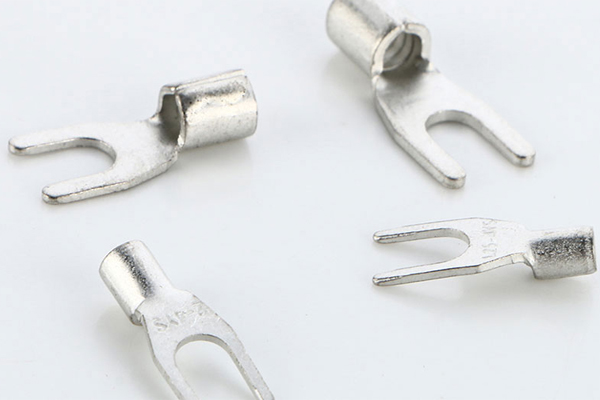

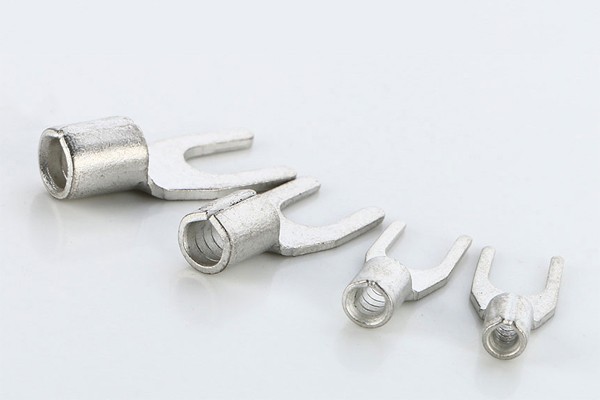

Non-Insulated Fork Terminal Wire Connector Y

Category: Cable Terminal

Non-Insulated Fork Terminal Spade Terminal Wire Connector Y

Specification:

Material: Copper, Tin-plated Copper
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree
Non-Insulated Fork Terminal can be crimped or soldered, widely used in the electrical wire connecting of the switchboard, mechanical equipment factory and so on

Size of cable: 0.5-1.5mm²(American standar 22-16) Max.Current=19A

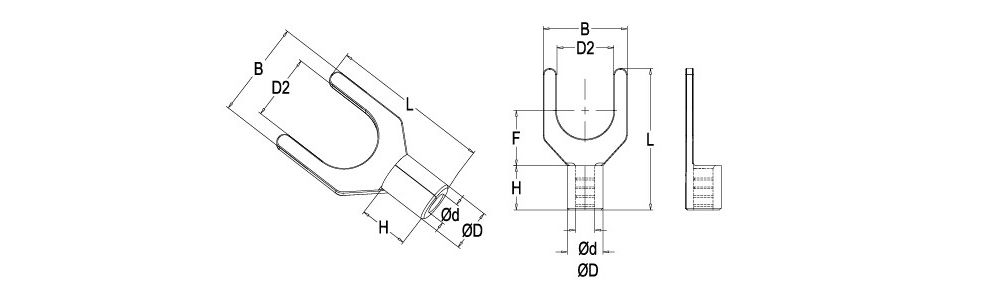

Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y1.25-3	#4	3.2mm	5.7	16	6.5	4.8	3.4	1.7
YS1.25-3.5	#6	3.7mm	5.7	16	6.5
YL1.25-3.5	#6	3.7mm	6.4	16	6.5
YS1.25-4	#8	4.3mm	6.4	16	6.5
YM1.25-4	#8	4.3mm	7.2	16	6.5
YL1.25-4	#8	4.3mm	8.1	16	6.5
YS1.25-5	#10	5.3mm	8.1	16	6.5
YL1.25-5	#10	5.3mm	9.5	16	6.5
YS1.25-6	1/4	6.5mm	9.5	16	6.5
YL1.25-6	1/4	6.5mm	12	22	11
Size of cable: 1.5-2.5mm²(American standar 16-14) Max.Current=27A
Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y2-3	#4	3.2mm	5.7	16	6.5	4.8	4.1	2.3
YS2-3.5	#6	3.7mm	5.7	16	6.5
YL 2-3.5	#6	3.7mm	6	16	6.5
YS 2-4	#8	4.3mm	6.4	16	6.5
YM2-4	#8	4.3mm	7.2	16	6.5
YL2-4	#8	4.3mm	8.1	16	6.5
YS2-5	#10	5.3mm	8.1	16	6.5
YL2-5	#10	5.3mm	9.5	16	6.5
YS2-6	1/4	6.5mm	9.5	16	6.5
YL2-6	1/4	6.5mm	12	22	11
Size of cable: 2.5-4mm²(American standar 14-12) Max.Current=37A
Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y3.5-3	#4	3.2mm	5.7	18.3	7	6	5	3
Y3.5-4	#8	4.3mm	8	18.3	7
Y3.5-5	#10	5.3mm	8	18.3	7
Y3.5-6	1/4	6.5mm	12	21.5	12.1
Size of cable: 4-6mm²(American standar 12-10) Max.Current=48A
Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y5.5-3.5	#6	3.7mm	8.3	19.5	7.5	6.8	5.6	3.4
Y5.5-3.5	#6	3.7mm	8.3	18.5	7
YS5.5-4	#8	4.3mm	8.3	19.5	7.5
YL5.5-4	#8	4.3mm	9	18.2	7.5
Y5.5-5	#10	5.3mm	9	18.2	7.5
YS5.5-6	1/4	6.5mm	9	18.2	7.5
YL5.5-6	1/4	6.5mm	12	25.5	12
Y5.5-8	5/16	8.4mm	14	24.5	11.5
Size of cable: 6-10mm²(American standar 8) Max.Current=62A
Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y8-4	#8	4.3mm	9	20.8	8.1	8.5	7.2	4.5
Y8-5	#10	5.3mm	9	20.8	8.1
Y8-6	1/4	6.5mm	12	23.8	9.2
Y8-8	5/16	8.4mm	13.8	25.4	10.7
Y8-10	3/8	10.5mm	15.9	25.4	10.7
Size of cable: 10-16mm²(American standar 6) Max.Current=88A
Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y14-4	#8	4.3mm	11	25.5	10.7	10.5	9	5.8
Y14-5	#10	5.3mm	11	25.5	10.7
Y14-6	1/4	6.5mm	11	25.5	10.7
Y14-8	5/16	8.4mm	13.8	28.5	10.7
Y14-10	3/8	10.5mm	15.9	28.5	10.7
Size of cable: 16-25mm²(American standar 4) Max.Current=115A
Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y22-5	#10	5.3mm	11	27.7	9.5	12	11.5	7.7
Y22-6	1/4	6.5mm	11	27.7	9.5
Y22-8	5/16	8.4mm	16.5	33.5	13.5
Y22-10	3/8	10.5mm	16.5	33.5	13.5
Size of cable: 35-50mm²(American standar 2) Max.Current=160A
Item No	DIMENSION
Item No	American bolt number	Dia.of bolt D2	B mm	L mm	F mm	H mm	Dφ mm	dφ mm
Y38-6	1/4	6.5mm	15.9	35	13.5	14	13.3	9.4
Y38-8	5/16	8.4mm	15.9	35	13.5
Y38-10	3/8	10.5mm	15.9	35	13.5
Y38-12	1/2	13.0mm	19	39	15.5
