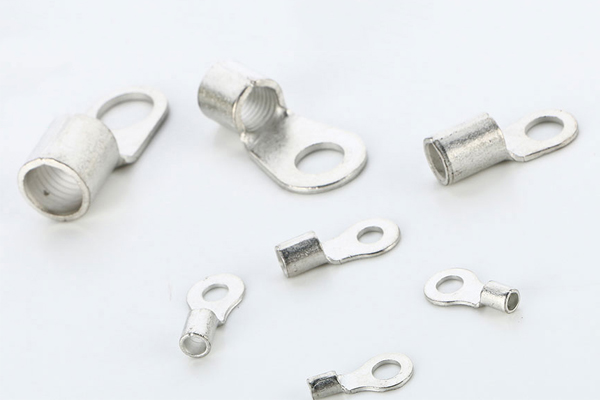

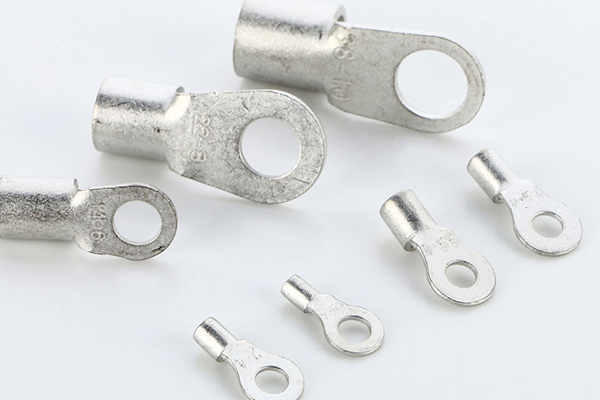

Non-Insulated Ring Terminals Wire Connector R Tin-plated Copper
Specification:
Material: Copper, Tin-plated Copper
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree
Non-Insulated Ring Terminals can be crimped or soldered, widely used in the electrical wire connecting of the switchboard, mechanical equipment factory and so on
| Insulated square：0.5～1.5mm2(AWG22～16)Max. current: lmax=19A | ||||||||

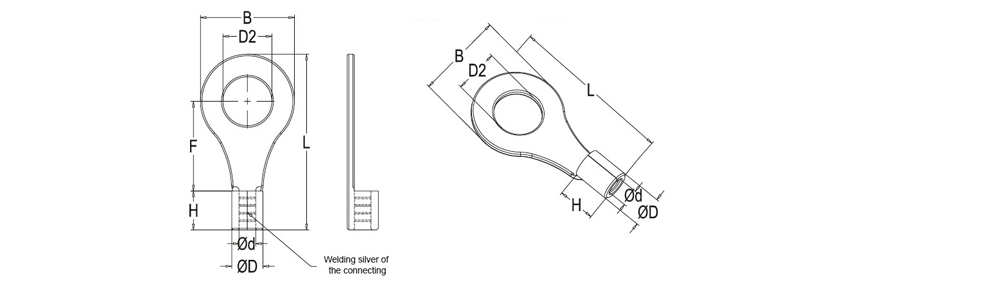

| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R1.25-3 | #4 | 3.2mm | 5.5 | 12.5 | 5 | 4.8 | 3.4 | 1.7 |
| RS1.25-3.5 | #6 | 3.7mm | 5.5 | 12.5 | 5 | |||
| RM1.25-3.5 | #6 | 3.7mm | 6.6 | 14.4 | 6.3 | |||
| RL1.25-3.5 | #6 | 3.7mm | 8 | 15.8 | 7 | |||
| RS1.25-4 | #8 | 4.3mm | 6.6 | 14.4 | 6.3 | |||
| RL1.25-4 | #8 | 4.3mm | 8 | 15.8 | 7 | |||
| R1.25-5 | #10 | 5.3mm | 8 | 15.8 | 7 | |||
| RL1.25-5 | #10 | 5.3mm | 9.8 | 18 | 8.5 | |||
| RS1.25-6 | 1/4 | 6.4mm | 9.8 | 18 | 8.5 | |||
| RL1.25-6 | 1/4 | 6.4mm | 11.6 | 21.8 | 11 | |||
| R1.25-8 | 5/16 | 8.4mm | 11.6 | 21.8 | 11 | |||
| R1.25-10 | 3/8 | 10.5mm | 13.6 | 25.5 | 13.9 | |||
| R1.25-12 | 1/2 | 13.0mm | 19.2 | 30.4 | 16 | |||
| Insulated square：1.25～2.5mm2(AWG16～14)Max. current: lmax＝27A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R2-3 | #4 | 3.2mm | 6.6 | 12.8 | 4.8 | 4.8 | 4.1 | 2.3 |
| RS2-3.5 | #6 | 3.7mm | 6.6 | 12.8 | 4.8 | |||
| RM2-3.5 | #6 | 3.7mm | 6.6 | 14 | 6.3 | |||
| RL2-3.5 | #6 | 3.7mm | 8.5 | 16.5 | 7.4 | |||
| RS2-4 | #8 | 4.3mm | 6.6 | 14.4 | 6.3 | |||
| RL2-4 | #8 | 4.3mm | 8.5 | 16.5 | 7.4 | |||
| RS2-5 | #10 | 5.3mm | 8.5 | 16.5 | 7.4 | |||
| RL2-5 | #10 | 5.3mm | 9.5 | 17 | 7.4 | |||
| R2-6 | 1/4 | 6.5mm | 12 | 21.8 | 11 | |||
| R2-8 | 5/16 | 8.4mm | 12 | 21.8 | 11 | |||
| R2-10 | 3/8 | 10.5mm | 13.6 | 25.5 | 13.9 | |||
| R2-12 | 1/2 | 13.0mm | 19.2 | 30.4 | 16 | |||
| Insulated square：2.5～4mm2(AWG14～12)Max. current: lmax＝37A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R3.5-4 | #8 | 4.3mm | 8 | 18 | 7.7 | 6 | 5 | 3 |
| RS3.5-5 | #10 | 5.3mm | 8 | 18 | 7.7 | |||
| RL3.5-5 | #10 | 5.3mm | 12 | 21.4 | 7.7 | |||
| R3.5-6 | 1/4 | 6.4mm | 12 | 21.4 | 7.7 | |||
| R3.5-8 | 3/16 | 8.4mm | 15 | 27 | 13.5 | |||
| R3.5-10 | 3/8 | 10.5mm | 15 | 27 | 13.5 | |||
| Insulated square：4～6mm2(AWG12～10)Max. current: lmax=48A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R5.5-3.5 | #6 | 3.7mm | 7.2 | 15.7 | 6.1 | 6.8 | 5.6 | 3.4 |
| RS5.5-4 | #8 | 4.3mm | 7.2 | 15.7 | 6.1 | |||
| RL5.5-4 | #8 | 4.3mm | 9.5 | 19 | 8.3 | |||
| R5.5-5 | #10 | 5.3mm | 9.5 | 19 | 8.3 | |||
| R5.5-6 | 1/4 | 6.5mm | 12 | 22.5 | 10.5 | |||
| R5.5-8 | 5/16 | 8.4mm | 15 | 27 | 13.3 | |||
| R5.5-10 | 3/8 | 10.5mm | 15 | 27 | 13.3 | |||
| R5.5-12 | 1/2 | 13.0mm | 19.2 | 31.6 | 16 | |||
| Insulated square：6～10mm2(8)Max. current: lmax=62A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R8-4 | #8 | 4.3mm | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RS8-5 | #10 | 5.3mm | 8.8 | 23.8 | 10.5 | |||
| RM8-5 | #10 | 5.3mm | 12 | 23.8 | 9.3 | |||
| RL8-5 | #10 | 5.3mm | 15 | 29.8 | 13.8 | |||
| RS8-6 | 1/4 | 6.5mm | 12 | 23.8 | 9.3 | |||
| RL8-6 | 1/4 | 6.5mm | 15 | 29.8 | 13.8 | |||
| R8-8 | 5/16 | 8.4mm | 15 | 29.8 | 13.8 | |||
| R8-10 | 3/8 | 10.5mm | 15 | 29.8 | 13.8 | |||
| R8-12 | 1/2 | 13.0mm | 20 | 33.5 | 15 | |||
| Insulated square：10～16mm2(6)Max. current: lmax＝88A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R14-4 | #8 | 4.3mm | 12 | 29.8 | 13.3 | 10.5 | 9 | 5.8 |
| R14-5 | #10 | 5.3mm | 12 | 29.8 | 13.3 | |||
| RS14-6 | 1/4 | 6.4mm | 12 | 29.8 | 13.3 | |||
| RL14-6 | 1/4 | 6.4mm | 16 | 32.8 | 13.3 | |||
| R14-8 | 5/16 | 8.4mm | 16 | 32.8 | 14.5 | |||
| R14-10 | 3/8 | 10.5mm | 16 | 32.8 | 14.5 | |||
| R14-12 | 1/2 | 13.0mm | 22 | 41 | 19.5 | |||
| Insulated square：16～25mm2(4)Max. current: lmax=115A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| RS22-5 | #10 | 5.3mm | 12.2 | 33.2 | 15.1 | 12 | 11.5 | 7.7 |
| RL22-5 | #10 | 5.3mm | 16.5 | 33.5 | 13.5 | |||
| RS22-6 | 1/4 | 6.5mm | 12.2 | 33 | 15.1 | |||
| RL22-6 | 1/4 | 6.5mm | 16.5 | 33.5 | 13.5 | |||
| R22-8 | 5/16 | 8.4mm | 16.5 | 33.5 | 16.5 | |||
| R22-10 | 3/8 | 10.5mm | 16.5 | 33.5 | 16.5 | |||
| R22-11 | 7/16 | 11.5mm | 22 | 42.5 | 19.7 | |||
| R22-12 | 1/2 | 13.0mm | 22 | 42.5 | 19.7 | |||
| Insulated square：35～50mm2(2)Max. current: lmax＝160A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R38-5 | #10 | 5.3mm | 15.3 | 39 | 17.4 | 14 | 13.3 | 9.4 |
| R38-6 | 1/4 | 6.4mm | 15.3 | 39 | 17.4 | |||
| RS38-8 | 5/16 | 8.4mm | 15.3 | 39 | 17.4 | |||
| RL38-8 | 5/16 | 8.4mm | 22 | 42.7 | 17.7 | |||
| RS38-10 | 3/8 | 10.5mm | 15.3 | 39 | 17.4 | |||
| RL38-10 | 3/8 | 10.5mm | 22 | 42.7 | 17.7 | |||
| R38-11 | 7/16 | 11.5mm | 22 | 42.7 | 17.7 | |||
| R38-12 | 1/2 | 13.0mm | 22 | 42.7 | 17.7 | |||
| Insulated square：50～70mm2(AWG1/0)Max. current: lmax=215A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R60-6 | 1/4 | 6.5mm | 22 | 49.7 | 20.7 | 18 | 15.4 | 11.4 |
| R60-8 | 5/16 | 8.4mm | ||||||
| R60-10 | 3/8 | 10.5mm | ||||||
| R60-12 | 1/2 | 13.0mm | ||||||
| R60-14 | 9/16 | 15.0mm | 32 | 57.5 | 23.5 | |||
| R60-16 | 5/8 | 17.0mm | ||||||
| R60-18 | 11/16 | 19.0mm | ||||||
| R60-20 | 3/4 | 21.0mm | ||||||
| Insulated square：70～95mm2(AWG2/0) Max. current: lmax＝235A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R70-6 | 1/4 | 6.5mm | 24 | 50 | 20 | 19 | 17.5 | 13 |
| R70-8 | 5/16 | 8.4mm | ||||||
| R70-10 | 3/8 | 10.5mm | ||||||
| R70-12 | 1/2 | 13.0mm | ||||||
| R70-14 | 9/16 | 15.0mm | 32 | 61 | 26 | |||
| R70-16 | 5/8 | 17.0mm | ||||||
| R70-18 | 11/16 | 19.0mm | ||||||
| R70-20 | 3/4 | 21.0mm | ||||||
| Insulated square：95～120mm2(AWG3/0)Max. current: lmax＝255A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R80-6 | 1/4 | 6.5mm | 22 | 53.5 | 20.7 | 20 | 19.5 | 14.5 |
| R80-8 | 5/16 | 8.4mm | ||||||
| R80-10 | 3/8 | 10.5mm | ||||||
| R80-12 | 1/2 | 13.0mm | ||||||
| R80-14 | 9/16 | 15.0mm | 32 | 68 | 32 | |||
| R80-16 | 5/8 | 17.0mm | ||||||
| R80-18 | 11/16 | 19.0mm | ||||||
| R80-20 | 3/4 | 21.0mm | ||||||
| Insulated square：120～150mm2(AWG4/0) Max. current: lmax＝300A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R100-6 | 1/4 | 6.5mm | 28.5 | 55.6 | 20.4 | 21 | 22.1 | 16.4 |
| R100-8 | 5/16 | 8.4mm | ||||||
| R100-10 | 3/8 | 10.5mm | ||||||
| R100-12 | 1/2 | 13.0mm | ||||||
| R100-14 | 9/16 | 15.0mm | 32 | 69 | 32 | |||
| R100-16 | 5/8 | 17.0mm | ||||||
| R100-18 | 11/16 | 19.0mm | ||||||
| R100-20 | 3/4 | 21.0mm | ||||||
| Insulated square:150～185mm2(250/300MCM)Max. current: lmax＝395A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R150-8 | 5/16 | 8.4mm | 36 | 66 | 23 | 27 | 26.6 | 19.5 |
| R150-10 | 3/8 | 10.5mm | ||||||
| R150-12 | 1/2 | 13.0mm | ||||||
| R150-14 | 9/16 | 15.0mm | ||||||
| R150-16 | 5/8 | 17.0mm | ||||||
| R150-18 | 11/16 | 19.0mm | 36 | 81 | 36 | |||
| R150-20 | 3/4 | 21.0mm | ||||||
| R150-22 | 7/8 | 23.0mm | ||||||
| R150-24 | 15/16 | 25.0mm | ||||||
| Insulated square:185～240mm2(300/350MCM)Max. current: lmax＝440A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R180-8 | 5/16 | 8.4mm | 38.5 | 69 | 24.5 | 28.5 | 28.6 | 21 |
| R180-10 | 3/8 | 10.5mm | ||||||
| R180-12 | 1/2 | 13.0mm | ||||||
| R180-14 | 9/16 | 15.0mm | ||||||
| R180-16 | 5/8 | 17.0mm | ||||||
| R180-18 | 11/16 | 19.0mm | 38.5 | 86 | 39 | |||
| R180-20 | 3/4 | 21.0mm | ||||||
| R180-22 | 7/8 | 23.0mm | ||||||
| R180-24 | 15/16 | 25.0mm | ||||||
| Insulated square:240～300mm2(400/500MCM)Max. current: lmax＝470A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R200-8 | 5/16 | 8.4mm | 44 | 72 | 24.5 | 31.5 | 32.6 | 24 |
| R200-10 | 3/8 | 10.5mm | ||||||
| R200-12 | 1/2 | 13.0mm | ||||||
| R200-14 | 9/16 | 15.0mm | ||||||
| R200-16 | 5/8 | 17.0mm | ||||||
| R200-18 | 11/16 | 19.0mm | 44 | 91 | 37.5 | |||
| R200-20 | 3/4 | 21.0mm | ||||||
| R200-22 | 7/8 | 23.0mm | ||||||
| R200-24 | 15/16 | 25.0mm | ||||||
| Insulated square:300～400mm2(500/600MCM)Max. current: lmax＝650A | ||||||||
| Item No | DIMENSION | |||||||
| American bolt number | Dia.of bolt d2φ |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
dφ mm |
|
| R325-8 | 5/16 | 8.4mm | 50.5 | 88 | 33.5 | 35.5 | 37.1 | 28 |
| R325-10 | 3/8 | 10.5mm | ||||||
| R325-12 | 1/2 | 13.0mm | ||||||
| R325-14 | 9/16 | 15.0mm | ||||||
| R325-16 | 5/8 | 17.0mm | ||||||
| R325-18 | 11/16 | 19.0mm | 50.5 | 105.7 | 45 | |||
| R325-20 | 3/4 | 21.0mm | ||||||
| R325-22 | 7/8 | 23.0mm | ||||||
| R325-24 | 15/16 | 25.0mm | ||||||
