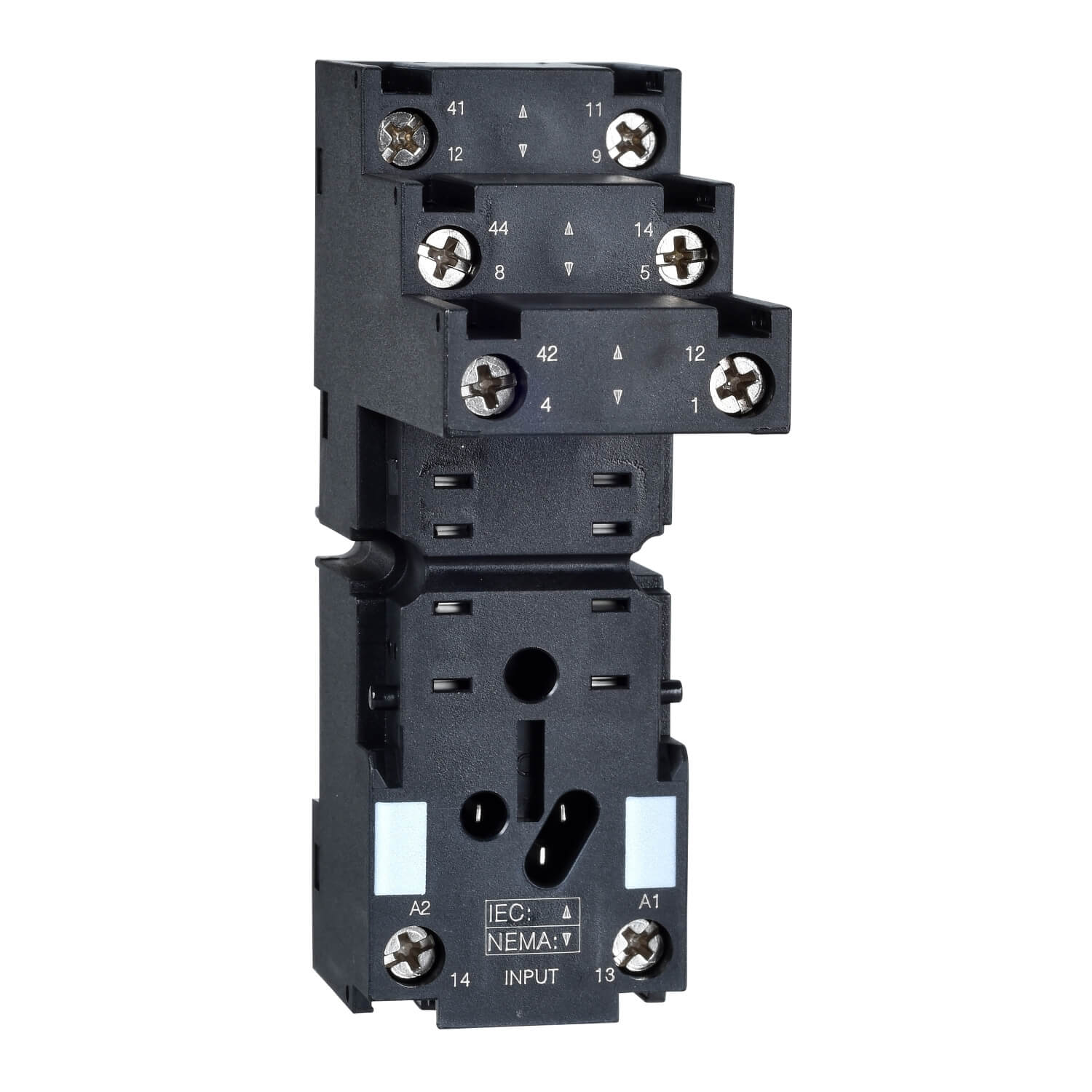

RXZE2S108M Socket RXZ – separate contact – 12 A – < 250 V – connector – for relay RXM2..
Specification:
| range of product |
Zelio Relay
|
|---|---|
| product or component type |
Socket
|
| contact terminal arrangement |
Separate
|
| product compatibility |
Plug-in relay RXM with 2 C/O contact
Plug-in relay REXL with 2 C/O contact |
| shape of pin |
Flat
|
| device short name |
RXZ
|
| sale per indivisible quantity |
10
|
| [Ith] conventional free air thermal current |
5 A with bus jumper
12 A |
|---|---|
| [Ue] rated operational voltage |
< 250 V
|
| tightening torque |
< 1 N.m for M3 screw(s)
|
| fixing mode |
By screw (panel)
Clip-on (35 mm symmetrical DIN rail) |
| marking |
CE
|
| width |
27 mm
|
| net weight |
0.058 kg
|
| group of product |
RXM_2_C/O_CON_SEP_FLAT
|
| compatibility code |
RXZ
|
| connections – terminals |
Connector, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end
Connector, 1 x 0.25…1 x 2.5 mm² (AWG 22…AWG 17) flexible with cable end Connector, 1 x 0.5…1 x 2.5 mm² (AWG 22…AWG 14) flexible with cable end Connector, 2 x 0.25…2 x 1 mm² (AWG 20…AWG 14) solid without cable end |
|---|---|
| standards |
IEC 61984
|
| product certifications |
CSA
Lloyd’s UL |
| ambient air temperature for storage |
-40…85 °C
|
| ambient air temperature for operation |
-40…55 °C
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
| dielectric strength |
2500 V
|
