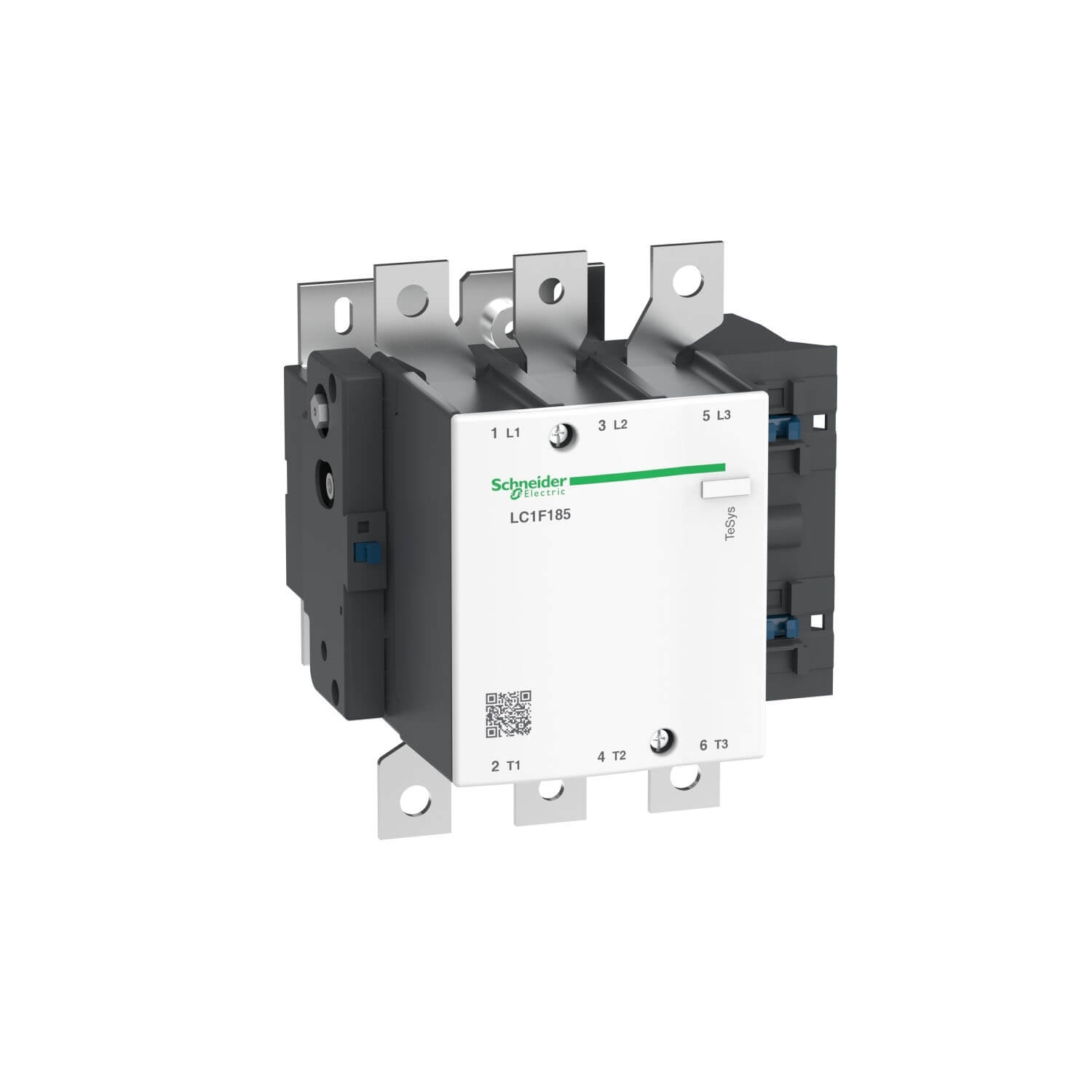

LC1F185U7 TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 185 A – coil 240 V AC
Specification:
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys F
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1F
|
|
| contactor application |
Resistive load
Motor control |
|
| utilisation category |
AC-4
AC-1 AC-3 |
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
<= 460 V DC
<= 690 V AC 50/60 Hz |
|
| [Ie] rated operational current |
275 A (at <40 °C) at <= 440 V AC-1
185 A (at <55 °C) at <= 440 V AC-3 |
|
| motor power kW |
90 kW at 380…400 V AC 50/60 Hz (AC-3)
100 kW at 415 V AC 50/60 Hz (AC-3) 100 kW at 440 V AC 50/60 Hz (AC-3) 110 kW at 500 V AC 50/60 Hz (AC-3) 110 kW at 660…690 V AC 50/60 Hz (AC-3) 55 kW at 220…230 V AC 50/60 Hz (AC-3) 33 kW at 400 V AC 50/60 Hz (AC-4) |
|
| [Uc] control circuit voltage |
240 V AC 40…400 Hz
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
|---|---|---|
| overvoltage category |
III
|
|
| [Ith] conventional free air thermal current |
275 A (at 40 °C)
|
|
| rated breaking capacity |
1480 A conforming to IEC 60947-4-1
|
|
| [Icw] rated short-time withstand current |
1500 A 40 °C – 10 s
920 A 40 °C – 30 s 740 A 40 °C – 1 min 500 A 40 °C – 3 min 400 A 40 °C – 10 min |
|
| associated fuse rating |
200 A aM at <= 440 V
315 A gG at <= 440 V |
|
| average impedance |
0.33 mOhm – Ith 275 A 50 Hz
|
|
| [Ui] rated insulation voltage |
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C |
|
| power dissipation per pole |
12 W AC-3
25 W AC-1 |
|
| mounting support |
Plate
|
|
| standards |
IEC 60947-1
JIS C8201-4-1 EN 60947-1 IEC 60947-4-1 EN 60947-4-1 |
|
| product certifications |
LROS (Lloyds register of shipping)
UL CSA BV CB DNV RMRoS RINA ABS |
|
| connections – terminals |
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: bar 2 cable(s) – busbar cross section: 25 x 3 mm Power circuit: lugs-ring terminals 1 cable(s) 150 mm² Power circuit: connector 1 cable(s) 150 mm² Power circuit: bolted connection |
|
| tightening torque |
Control circuit: 1.2 N.m
Power circuit: 18 N.m |
|
| control circuit voltage limits |
Operational: 0.85…1.1 Uc 40…400 Hz (at 55 °C)
Drop-out: 0.35…0.55 Uc 40…400 Hz (at 55 °C) |
|
| inrush power in VA |
1070 VA 40…400 Hz cos phi 0.9 (at 20 °C)
|
|
| hold-in power consumption in VA |
9.9 VA 40…400 Hz cos phi 0.9 (at 20 °C)
|
|
| heat dissipation |
8…9.8 W
|
|
| operating time |
35 ms closing (at Uc)
130 ms opening (at Uc) |
|
| mechanical durability |
10 Mcycles
|
|
| maximum operating rate |
2400 cyc/h 55 °C
|
|
| compatibility code |
LC1F
|
|
| motor power range |
30…50 kW at 200…240 V 3 phases
55…100 kW at 200…240 V 3 phases 55…100 kW at 380…440 V 3 phases 55…100 kW at 480…500 V 3 phases 110…220 kW at 480…500 V 3 phases |
|
| motor starter type |
Direct on-line contactor
|
|
| contactor coil voltage |
240 V AC standard
|
| IP degree of protection |
IP2x front face with shrouds conforming to IEC 60529
IP2x front face with shrouds conforming to VDE 0106 |
|
|---|---|---|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
-5…55 °C
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| permissible ambient air temperature around the device |
-40…70 °C
|
|
| operating altitude |
3000 m without derating
|
|
| height |
174 mm
|
|
| width |
168.5 mm
|
|
| depth |
181 mm
|
|
| net weight |
4.65 kg
|
