Insulated Piggyback Spade Connector Wire Terminals BMF
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Piggyback Spade Connector offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(AWG22～16)Max. current: lmax=10A | ||||||||
| Item No | NEMA-TAB | DIMENSION | ||||||

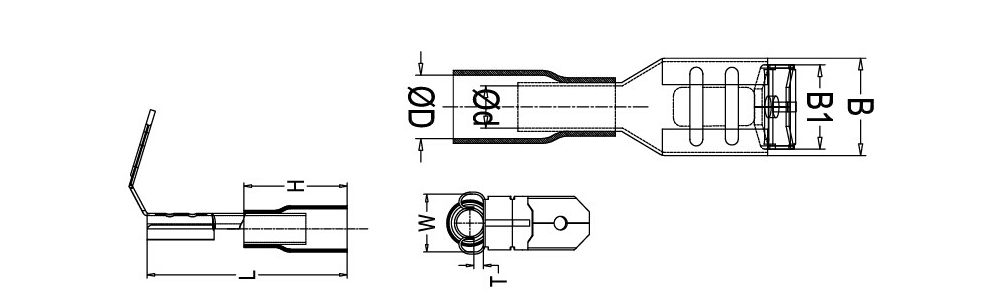

| T*W mm | B | B1 | H | Dφ | dφ | L | Red | |
| mm | mm | mm | mm | mm | mm | |||
| BMF1.25-250 | 0.8×6.35 | 7.4 | 6.3 | 10 | 3.8 | 1.7 | 21.5 | |
| Insulated square：1.5～2.5mm²(AWG16～14)Max. current: lmax=15A | ||||||||
| Item No | NEMA-TAB T*W | DIMENSION | ||||||
| B | B1 | H | Dφ | dφ | L | Blue | ||
| mm | mm | mm | mm | mm | mm | mm | ||
| BMF2-250 | 0.8×6.35 | 7.4 | 6.3 | 10 | 4.3 | 2.3 | 21.5 | |
| Insulated square：4～6mm²(AWG12～10)Max. current: lmax=24A | ||||||||
| Item No | NEMA-TAB T*W | DIMENSION | ||||||
| B | B1 | H | Dφ | dφ | L | Yellow | ||
| mm | mm | mm | mm | mm | mm | mm | ||
| BMF5.5-250 | 0.8×6.35 | 7.4 | 6.3 | 13 | 5.7 | 3.4 | 25 | |
