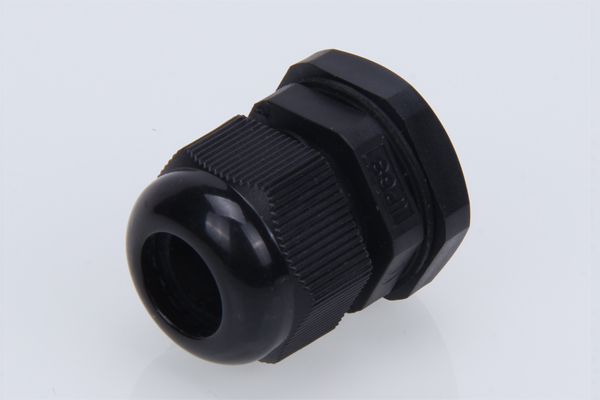

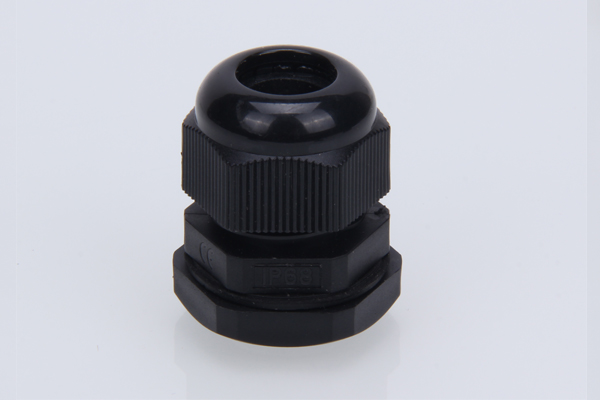

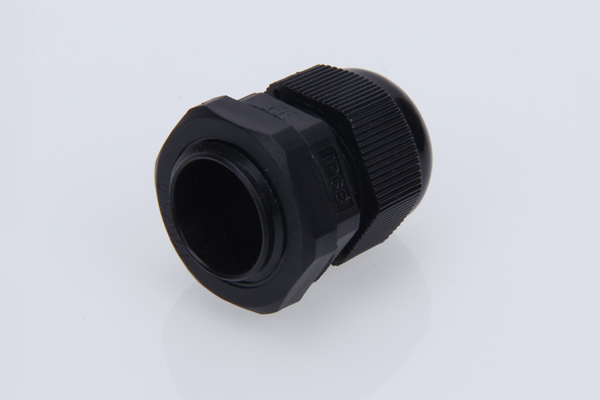

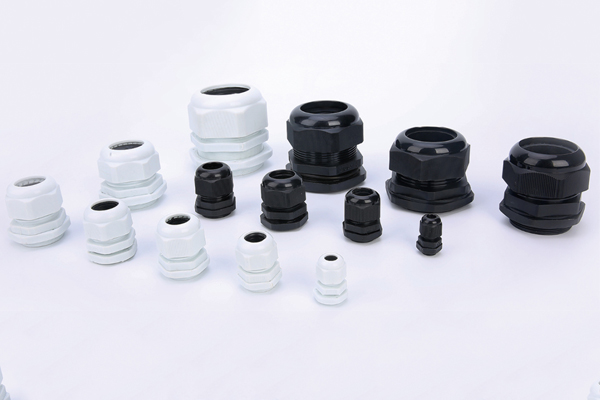

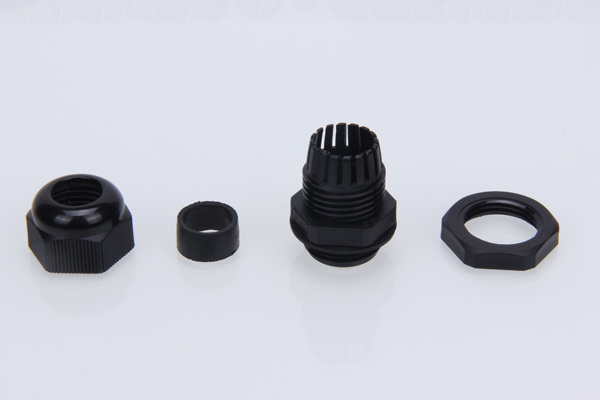

Nylon Cable Gland Metric Waterproof IP68
Specification:
Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved
waterproof. IP68

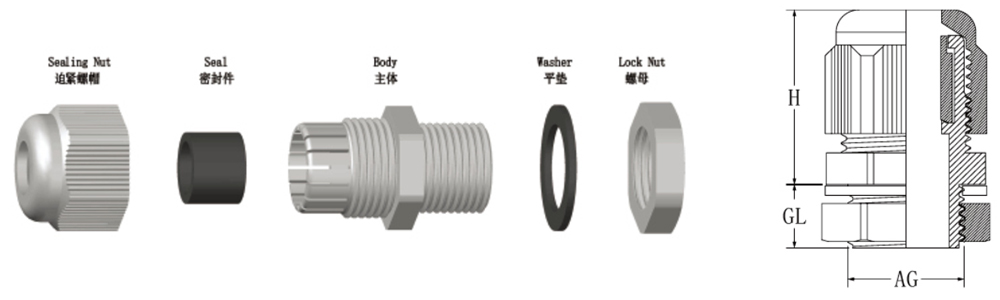

(In mm)
| Item | Cable Range | Thread Length GL | Thread O.D. AG | Spanner size | Item No. |
| M12X1.5 | 3-6.5 | 9 | 12 | 18/16 | NM12 |
| M12X1.5 | 4-8 | 8 | 12 | 18/16 | NM12-8 |
| M16X1.5 | 4-8 | 9 | 16 | 22/19 | NM16 |
| M16X1.5 | 5-10 | 8 | 16 | 22/19 | NM16-10 |
| M18X1.5 | 5-10 | 9 | 18 | 24/22 | NM18 |
| M20X1.5 | 6-11 | 10 | 20 | 27/24 | NM20 |
| M20X1.5 | 10-14 | 9 | 20 | 27/24 | NM20-14 |
| M22X1.5 | 10-13 | 10 | 22 | 30/27 | NM22 |
| M25X1.5 | 12-15 | 11 | 25 | 31/28 | NM25 |
| M25X1.5 | 13-18 | 11 | 25 | 31/28 | NM25-18 |
| M27X1.5 | 13-18 | 12 | 27 | 35/33 | NM27 |
| M30X1.5 | 16-21 | 12 | 30 | 37/35 | NM30 |
| M32X1.5 | 16-21 | 12 | 32 | 38/35 | NM32 |
| M36X1.5 | 18-25 | 12 | 36 | 45/42 | NM36 |
| M40X1.5 | 22-32 | 15 | 40 | 52/52 | NM40 |
| M50X1.5 | 32-38 | 18 | 50 | 62/58 | NM50 |
| M63X1.5 | 37-44 | 18 | 63 | 72/64 | NM63 |
