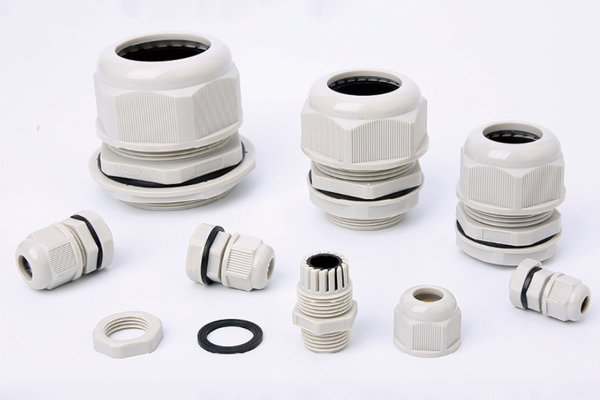

Reinforcement Cable GLand Lengthen Water-proof IP68
Specification:
Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Color: Gray, White, Black and so on.
Certificate: CE, RoHS approved
waterproof. IP68
(In mm)

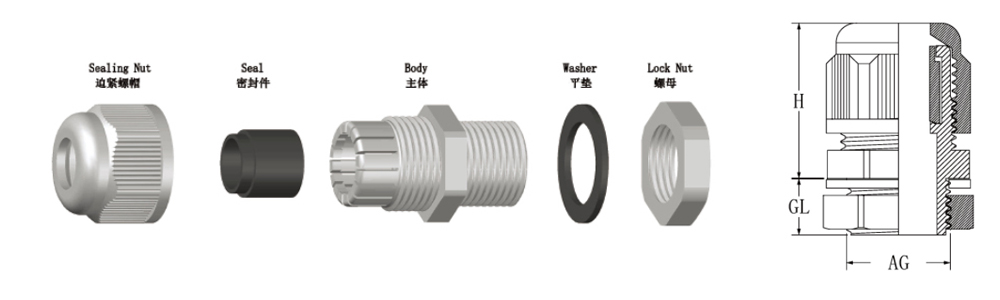

| Item | Cable Range | Thread Length GL | Thread O.D. AG | Spanner Size | Item No. |
| PG7 | 3-6.5 | 8.5 | 12.5 | 17/15 | NPG7-6.5B |
| 4-8 | 8.5 | 12.5 | 17/19 | NPG7-8B | |
| PG9 | 4-8 | 8.5 | 15.2 | 22/19 | NPG9-8B |
| PG11 | 6-10 | 10 | 18.6 | 24/22 | NPG11-10B |
| 4-7 | 10 | 18.6 | 24/22 | NPG11-7B | |
| PG13.5 | 6-12 | 10 | 20.4 | 27/24 | NPG13.5-12B |
| 5-9 | 10 | 20.4 | 27/24 | NPG13.5-9B | |
| PG16 | 8.5-14 | 10.8 | 22.5 | 30/27 | NPG16-14B |
| 6-11 | 10.8 | 22.5 | 30/27 | NPG16-11B | |
| PG19 | 8.5-14 | 11 | 23.5 | 30/27 | NPG19-14B |
| 6-11 | 11 | 22.5 | 30/27 | NPG19-11B | |
| PG21 | 12.5-18 | 12 | 28.3 | 36/33 | NPG21-18B |
| 7-13 | 12 | 28.3 | 36/33 | NPG21-13B | |
| PG25 | 14-20 | 13 | 30 | 36/37 | NPG25-20B |
| PG29 | 18-25 | 15 | 37 | 46/41 | NPG29-25B |
| 8-12 | 15 | 37 | 46/41 | NPG29-12B | |
| PG36 | 24-32 | 15 | 47 | 57/50 | NPG36-32B |
| 18-25 | 15 | 47 | 57/50 | NPG36-25B | |
| PG42 | 31-41 | 15.5 | 54 | 64/62 | NPG42-41B |
| 22-28 | 15.5 | 54 | 64/62 | NPG42-28B | |
| PG48 | 35-45 | 15.5 | 59.3 | 70/65 | NPG48-45B |
