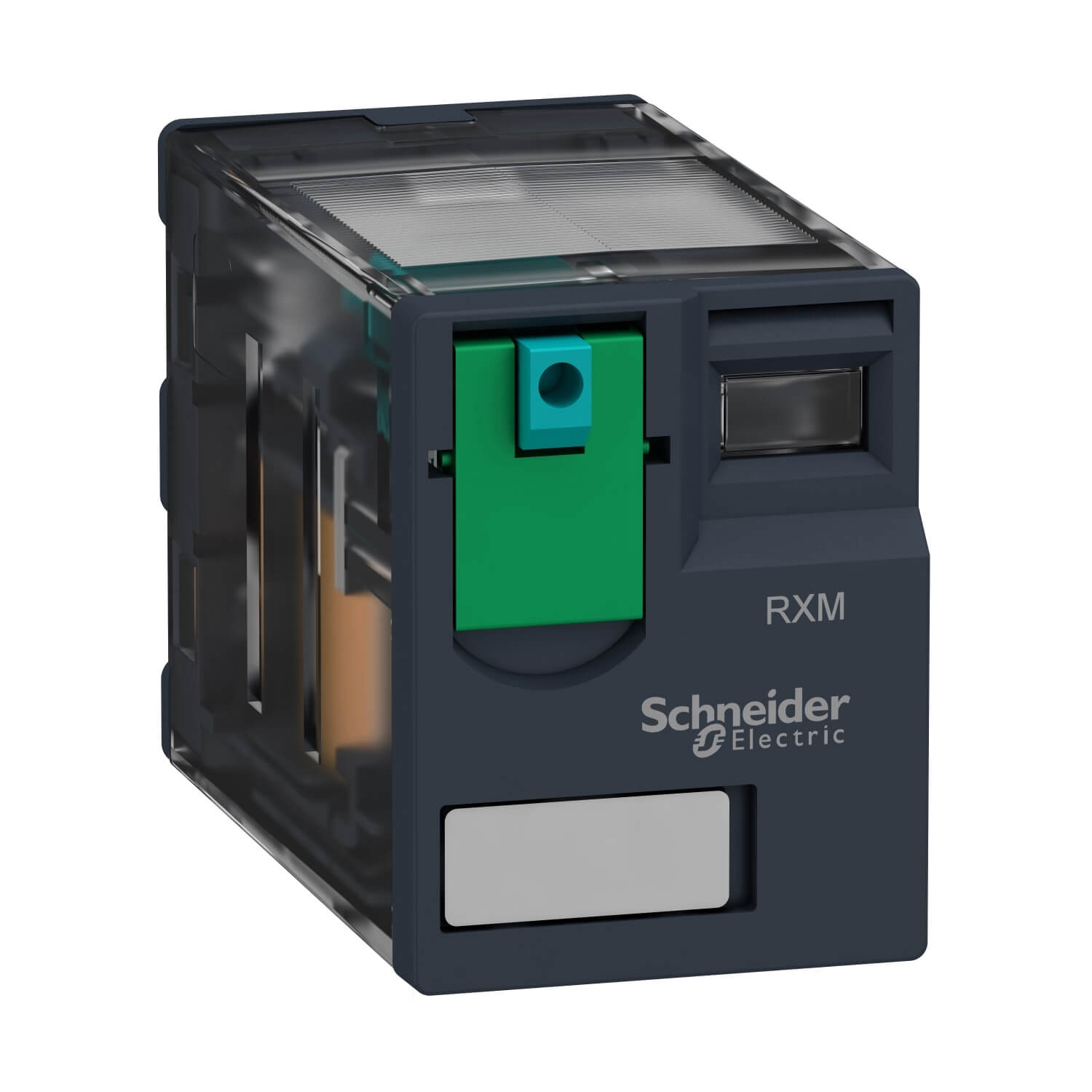

RXM2AB1BD Miniature Plug-in relay – Zelio RXM 2 C/O 24 V DC 12 A
Specification:
| shape of pin |
Flat
|
|---|---|
| [Ui] rated insulation voltage |
250 V conforming to IEC
300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage |
4 kV during 1.2/50 µs
|
| contacts material |
AgNi
|
| [Ie] rated operational current |
12 A at 28 V (DC) NO conforming to IEC
12 A at 250 V (AC) NO conforming to IEC 6 A at 28 V (DC) NC conforming to IEC 6 A at 250 V (AC) NC conforming to IEC 12 A at 28 V (DC) conforming to UL 12 A at 277 V (AC) conforming to UL |
| maximum switching voltage |
250 V conforming to IEC
|
| resistive rated load |
12 A at 250 V AC
12 A at 28 V DC |
| maximum switching capacity |
3000 VA/336 W
|
| minimum switching capacity |
170 mW at 10 mA, 17 V
|
| operating rate |
<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load |
| mechanical durability |
10000000 cycles
|
| electrical durability |
100000 cycles for resistive load
|
| average coil consumption in W |
0.9 W
|
| drop-out voltage threshold |
>= 0.1 Uc
|
| operate time |
20 ms
|
| release time |
20 ms
|
| average coil resistance |
650 Ohm at 20 °C +/- 10 %
|
| rated operational voltage limits |
19.2…26.4 V DC
|
| safety reliability data |
B10d = 100000
|
| protection category |
RT I
|
| test levels |
Level A group mounting
|
| operating position |
Any position
|
| net weight |
0.037 kg
|
| device presentation |
Complete product
|
| dielectric strength |
1300 V AC between contacts with micro disconnection
2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
|---|---|
| product certifications |
RoHS
GOST CSA REACH UL Lloyd’s CE |
| standards |
CSA C22.2 No 14
UL 508 EN/IEC 61810-1 |
| ambient air temperature for storage |
-40…85 °C
|
| ambient air temperature for operation |
-40…55 °C
|
| vibration resistance |
3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
| shock resistance |
10 gn for in operation
30 gn for not operating |
| pollution degree |
3
|
