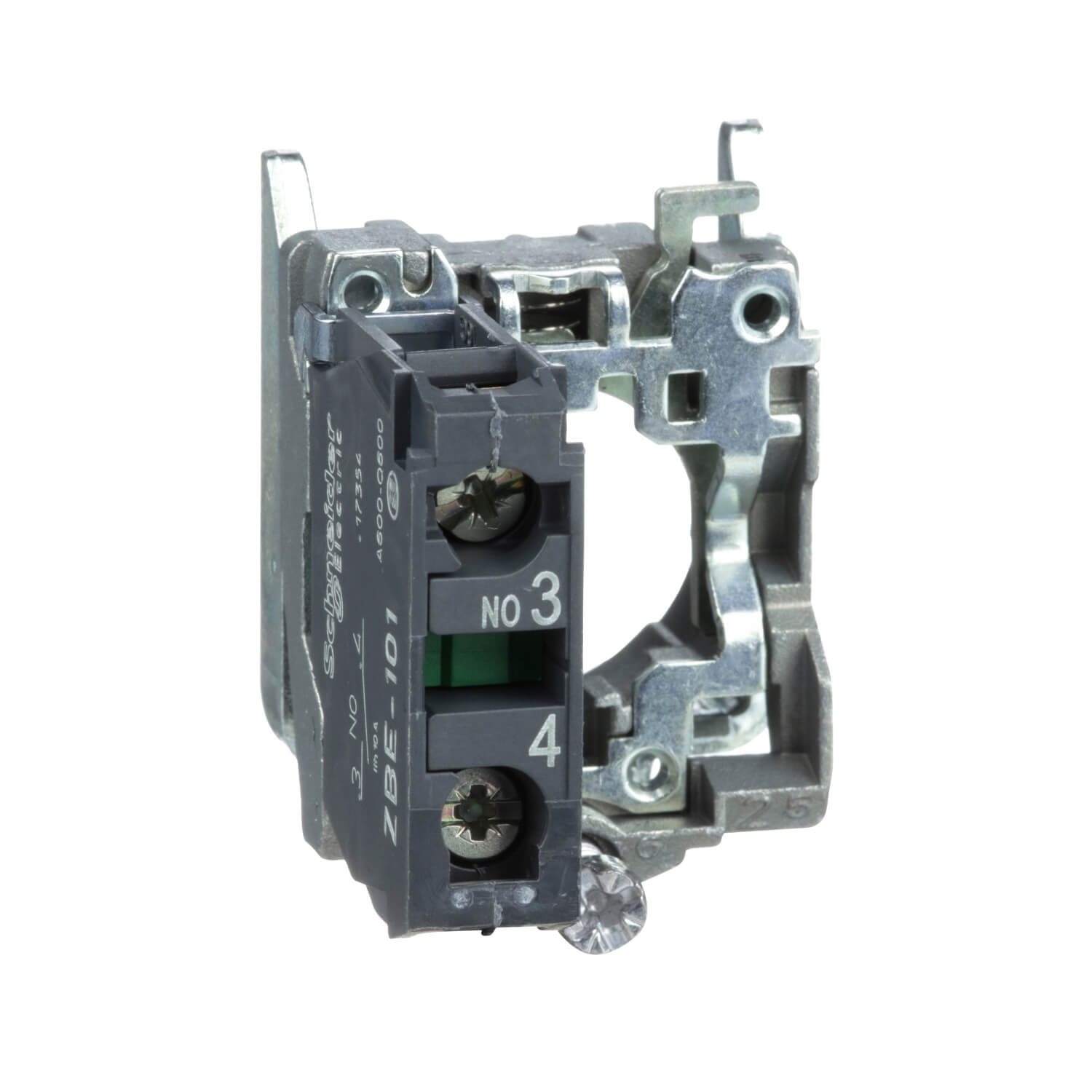

ZB4BZ101 Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NO, screw clamp terminal
ZB4BZ101 Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NO, screw clamp terminal
Specification：
| range of product |
Harmony XB4
|
|---|---|
| product or component type |
Complete body/contact assembly
|
| device short name |
ZB4
|
| fixing collar material |
Zamak
|
| sale per indivisible quantity |
1
|
| head type |
Standard
|
| contacts type and composition |
1 NO
|
| contact operation |
Slow-break
|
| contact block type |
Single
|
| device composition |
Fixing collar
Body |
| connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| CAD overall width |
1.18 in (30 mm)
|
|---|---|
| CAD overall height |
1.85 in (47 mm)
|
| CAD overall depth |
1.46 in (37 mm)
|
| terminals description ISO n°1 |
(13-14)NO
|
| net weight |
0.12 lb(US) (0.053 kg)
|
| contacts usage |
Standard contacts
|
| positive opening |
Without
|
| operating travel |
0.10 in (2.6 mm) NO changing electrical state)
0.17 in (4.3 mm) total travel) |
| operating force |
2.3 N NO changing electrical state
|
| operating torque |
0.44 lbf.in (0.05 N.m) NO changing electrical state
|
| mechanical durability |
5000000 cycles
|
| tightening torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
|
| shape of screw head |
Cross Philips no 1
Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| contacts material |
Silver alloy (Ag/Ni)
|
| short-circuit protection |
10 A cartridge fuse gG EN/IEC 60947-5-1
|
| [Ith] conventional free air thermal current |
10 A EN/IEC 60947-5-1
|
| [Ui] rated insulation voltage |
600 V 3)EN 60947-1
|
| [Uimp] rated impulse withstand voltage |
6 kV EN 60947-1
|
| [Ie] rated operational current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| electrical durability |
10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| electrical reliability |
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TH
|
|---|---|
| ambient air temperature for storage |
-40…158 °F (-40…70 °C)
|
| ambient air temperature for operation |
-40…158 °F (-40…70 °C)
|
| IP degree of protection |
IP20 IEC 60529
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-5-1 UL 508 JIS C8201-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 EN/IEC 60947-1 JIS C8201-1 |
| product certifications |
BV
GL UL DNV CSA LROS (Lloyds register of shipping) RINA |
| vibration resistance |
5 gn 2…500 Hz)IEC 60068-2-6
|
| shock resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
