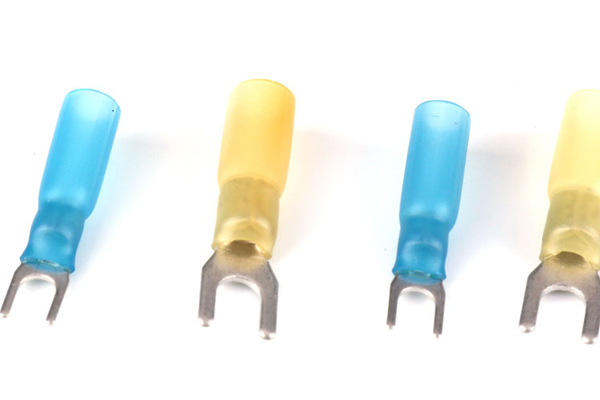

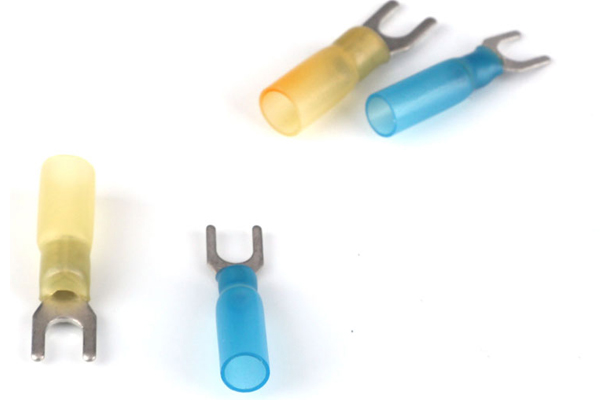

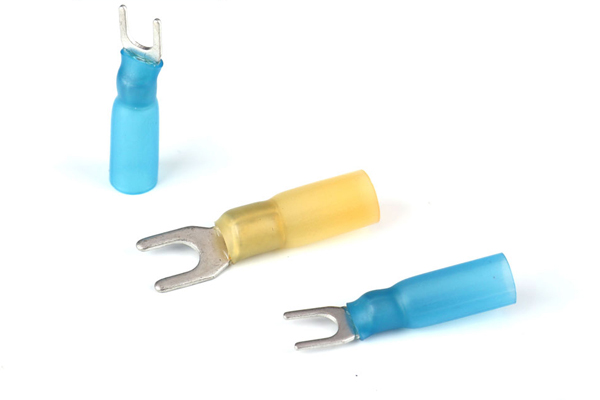

Shrinkable Ring Terminals PE-Heat Wire Connector BYF-HS
Specification:
Material: Copper, Tin-plated copper
Insulated Material: PE
Certification: CE, RoHS, UL Approved
Shrinkable Ring Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

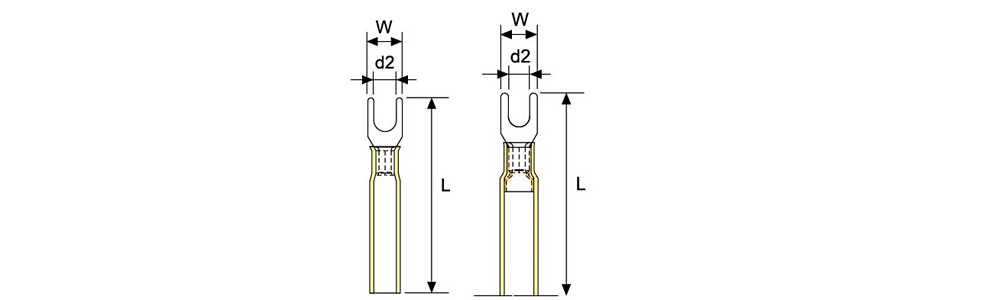

| Item No. | AWG mm² | d2 | W | L | Color |
| BYFL1.25-3.5HS | 22-16 0.5-1.5 | 3.7mm | 6.4 | 21.2 | Red |
| BYFL1.25-4HS | 4.3mm | 8.1 | 21.2 | ||
| BYFL1.25-5HS | 5.3mm | 9.5 | 21.2 | ||
| BYFL1.25-6HS | 6.5mm | 12 | 27.2 | ||
| BYFL2-3.5HS | 16-14 1.5-2.5 | 3.7mm | 6 | 21.2 | Blue |
| BYFL2-4HS | 4.3mm | 8.1 | 21.2 | ||
| BYFL2-5HS | 5.3mm | 9.5 | 21.2 | ||
| BYFL2-6HS | 6.5mm | 12 | 27.2 | ||
| BYFL5.5-4HS | 12-10 4-6 | 4.3mm | 9 | 26 | yellow |
| BYF5.5-5HS | 5.3mm | 9 | 26 | ||
| BYFL5.5-6HS | 6.5mm | 12 | 31.2 | ||
| BYF5.5-8HS | 8.4mm | 14 | 30 |
| Item No. | AWG mm² | d2 | W | L | Color |
| BYFL1.25-3.5HD | 22-16 0.5-1.5 | 3.7mm | 6.4 | 21.2 | Red |
| BYFL1.25-4HD | 4.3mm | 8.1 | 21.2 | ||
| BYFL1.25-5HD | 5.3mm | 9.5 | 21.2 | ||
| BYFL1.25-6HD | 6.5mm | 12 | 27.2 | ||
| BYFL2-3.5HD | 16-14 1.5-2.5 | 3.7mm | 6 | 21.2 | Blue |
| BYFL2-4HD | 4.3mm | 8.1 | 21.2 | ||
| BYFL2-5HD | 5.3mm | 9.5 | 21.2 | ||
| BYFL2-6HD | 6.5mm | 12 | 27.2 | ||
| BYFL5.5-4HD | 12-10 4-6 | 4.3mm | 9 | 26 | yellow |
| BYF5.5-5HD | 5.3mm | 9 | 26 | ||
| BYFL5.5-6HD | 6.5mm | 12 | 31.2 | ||
| BYF5.5-8HD | 8.4mm | 14 | 30 |
