Narrow Slotted Cable Ducting, Wire Duct
Specification:
Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Our Wide Slotted Cable Trunking is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

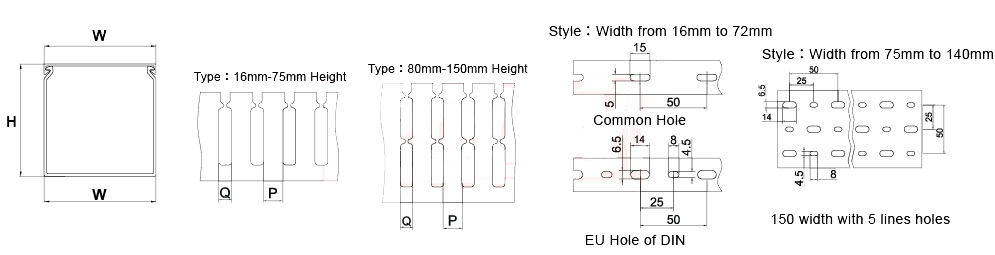

| Item No. | W*H | Q | P | Wire capability | Packing (M) |
| /2.0sp | |||||
| BHVD1616N | 16*16 | 5 | 5 | 3-10pcs | 300M |
| BHVD2516N | 25*16 | 5 | 5 | 8-12pcs | 260M |
| BHVD1520N | 15*20 | 4 | 6 | 8-12pcs | 260M |
| BHVD2020N | 20*20 | 4 | 6 | 10-20pcs | 240M |
| BHVD4020N | 40*20 | 4 | 6 | 15-30pcs | 140M |
| BHVD1525N | 15*25 | 4 | 6 | 5-15pcs | 260M |
| BHVD2025N | 20*25 | 4 | 6 | 12-28pcs | 160M |
| BHVD2525N | 25*25 | 4 | 6 | 10~25pcs | 200M |
| BHVD3025N | 30*25 | 4 | 6 | 12-28pcs | 160M |
| BHVD4025N | 40*25 | 4 | 6 | 20-35pcs | 100M |
| BHVD5025N | 50*25 | 4 | 6 | 12-28pcs | 100M |
| BHVD1530N | 15*30 | 4 | 6 | 8-15pcs | 180M |
| BHVD2030N | 20*30 | 4 | 6 | 25-35pcs | 160M |
| BHVD2530N | 25*30 | 4 | 6 | 25~35pcs | 160M |
| BHVD3030N | 30*30 | 4 | 6 | 25~35pcs | 140M |
| BHVD4030N | 40*30 | 4 | 6 | 30-40pcs | 100M |
| BHVD5030N | 50*30 | 4 | 6 | 40-50pcs | 80M |
| BHVD6030N | 60*30 | 4 | 6 | 50-60pcs | 60M |
| BHVD2233N | 22*33 | 4 | 6 | 25-35pcs | 160M |
| BHVD3333N | 33*33 | 4 | 6 | 35-45pcs | 160M |
| BHVD2035N | 20*35 | 4 | 6 | 30-40pcs | 100M |
| BHVD3535N | 35*35 | 4 | 6 | 35-45pcs | 112M |
| BHVD5035N | 50*35 | 4 | 6 | 40-60pcs | 88M |
| BHVD2040N | 20*40 | 4 | 6 | 16-22pcs | 110M |
| BHVD2540N | 25*40 | 4 | 6 | 20~25pcs | 112M |
| BHVD3540N | 35*40 | 4 | 6 | 30-45pcs | 100M |
| BHVD4040N | 40*40 | 4 | 6 | 60~70pcs | 100M |
| BHVD6040N | 60*40 | 4 | 6 | 100~115pcs | 68M |
| BHVD8040N | 80*40 | 4 | 6 | 120~135pcs | 48M |
| BHVD10040N | 100*40 | 4 | 6 | 120~135pcs | 32M |
| BHVD12040N | 120*40 | 4 | 6 | 140-155pcs | / |
| BHVD2545N | 25*45 | 4 | 6 | 20-25pcs | 104M |
| BHVD3345N | 33*45 | 4 | 6 | 40-55pcs | 108M |
| BHVD4545N | 45*45 | 4 | 6 | 60-70pcs | 72M |
| BHVD6545N | 65*45 | 4 | 6 | 110-120pcs | 56M |
| BHVD2050N | 20*50 | 4 | 6 | 18-28pcs | 100M |
| BHVD2550N | 25*50 | 4 | 6 | 20~30pcs | 100M |
| BHVD3050N | 30*50 | 4 | 6 | 25~40pcs | 84M |
| BHVD3550N | 35*50 | 4 | 6 | 40~60pcs | 80M |
| BHVD4050N | 40*50 | 4 | 6 | 60~70pcs | 68M |
| BHVD4550N | 45*50 | 4 | 6 | 70~80pcs | 60M |
| BHVD5050N | 50*50 | 4 | 6 | 80~90pcs | 60M |
| BHVD5550N | 55*50 | 4 | 6 | 85-95pcs | 48M |
| BHVD6050N | 60*50 | 4 | 6 | 100~120pcs | 48M |
| BHVD7550N | 75*50 | 4 | 6 | 150-170pcs | 40M |
| BHVD8050N | 80*50 | 4 | 6 | 160~180pcs | 40M |
| BHVD10050N | 100*50 | 4 | 6 | 200~250pcs | 26M |
| BHVD12555N | 125*55 | 4 | 6 | 220-270pcs | 20M |
| BHVD2060N | 20*60 | 4 | 6 | 35-45pcs | 100M |
| BHVD2560N | 25*60 | 4 | 6 | 40~50pcs | 100M |
| BHVD3060N | 30*60 | 4 | 6 | 60~80pcs | 80M |
| BHVD3560N | 35*60 | 4 | 6 | 90-105pcs | 78M |
| BHVD4060N | 40*60 | 4 | 6 | 100~115pcs | 60M |
| BHVD4560N | 45*60 | 4 | 6 | 110~125pcs | 30M |
| BHVD5060N | 50*60 | 4 | 6 | 120~135pcs | 60M |
| BHVD6060N | 60*60 | 4 | 6 | 120~135pcs | 48M |
| BHVD8060N | 80*60 | 4 | 6 | 180~210pcs | 36M |
| BHVD10060N | 100*60 | 4 | 6 | 240~290pcs | 28M |
| BHVD11060N | 110*60 | 4 | 6 | 250~300pcs | 48M |
| BHVD12060N | 120*60 | 4 | 6 | 260~320pcs | 48M |
| BHVD15060N | 150*60 | 4 | 6 | 300-360pcs | 16M |
| BHVD2565N | 25*65 | 4 | 6 | 40-50pcs | 88M |
| BHVD3565N | 35*65 | 4 | 6 | 40-70pcs | 80M |
| BHVD4565N | 45*65 | 4 | 6 | 110-120pcs | 52M |
| BHVD6565N | 65*65 | 4 | 6 | 180-200pcs | 44M |
| BHVD7265N | 72*65 | 4 | 6 | 180-230pcs | 42M |
| BHVD2575N | 25*75 | 4 | 6 | 160-190pcs | / |
| BHVD3575N | 35*75 | 4 | 6 | 170-200pcs | / |
| BHVD5075N | 50*75 | 4 | 6 | 180-210pcs | 42 |
| BHVD7575N | 75*75 | 4 | 6 | 200-240pcs | 40M |
| BHVD10075N | 100*75 | 4 | 6 | 250-290pcs | 24M |
| BHVD2580N | 25*80 | 4 | 6 | 100~120pcs | 72M |
| BHVD3080N | 30*80 | 4 | 6 | 110~125pcs | 56M |
| BHVD3580N | 35*80 | 4 | 6 | 110~130pcs | 56M |
| BHVD4080N | 40*80 | 4 | 6 | 140~160pcs | 48M |
| BHVD4580N | 45*80 | 4 | 6 | 140~160pcs | 40M |
| BHVD5080N | 5080 | 4 | 6 | 160~180pcs | 40M |
| BHVD5580N | 55*80 | 4 | 6 | 160~180pcs | 32M |
| BHVD6080N | 60*80 | 4 | 6 | 180~210pcs | 32M |
| BHVD8080N | 80*80 | 4 | 6 | 240~290pcs | 24M |
| BHVD10080N | 100*80 | 4 | 6 | 260~350pcs | 24M |
| BHVD12080N | 120*80 | 4 | 6 | 280~380pcs | 16M |
| BHVD14080N | 140*80 | 4 | 6 | 350~450pcs | 16M |
| BHVD16080N | 160*80 | 4 | 6 | 50*-550pcs | / |
| BHVD25100N | 25*100 | 4 | 6 | 110~160pcs | 60M |
| BHVD33100N | 33*100 | 4 | 6 | 130~165pcs | 44M |
| BHVD40100N | 40*100 | 4 | 6 | 130~175pcs | 40M |
| BHVD50100N | 50*100 | 4 | 6 | 220~250pcs | 40M |
| BHVD60100N | 60*100 | 4 | 6 | 240~290pcs | 32M |
| BHVD70100N | 70*100 | 4 | 6 | 250-310pcs | 24M |
| BHVD75100N | 75*100 | 4 | 6 | 260~350pcs | 24M |
| BHVD80100N | 80*100 | 4 | 6 | 260~350pcs | 24M |
| BHVD100100N | 100*100 | 4 | 6 | 300~400pcs | 24M |
| BHVD120100N | 120*100 | 4 | 6 | 350~450pcs | 16M |
| BHVD150100N | 150*100 | 4 | 6 | 400~650pcs | 16M |
| BHVD160100N | 160*100 | 4 | 6 | 500-750pcs | / |
| BHVD100130N | 100*130 | 4 | 6 | 350-450pcs | / |
| *BHVD200100N | 200*100 | 4 | 6 | 600~900pcs | 12M |
| *BHVD200150N | 200*150 | 4 | 6 | 900~1200pcs | 1 |
