Slotted Cable Ducting Wiring Duct 17mm*8mm
Specification:
Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS

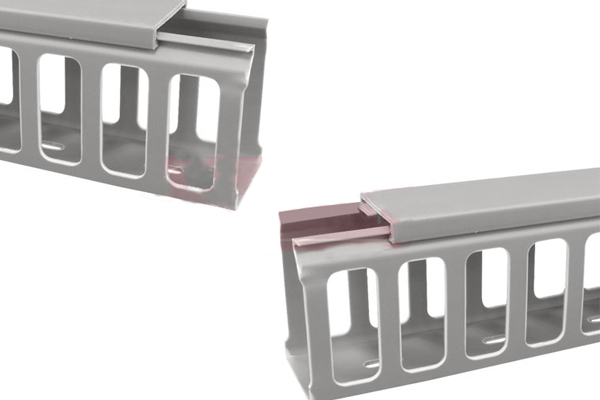

Our Wide Slotted Cable Ducting is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

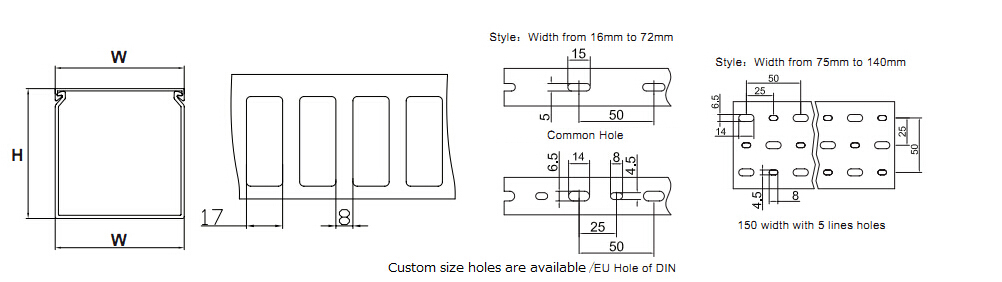

| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BVD2560CL | 25*60 | 17 | 8 | 40~50pcs | 100 |
| BVD3060CL | 30*60 | 17 | 8 | 60~80pcs | 80 |
| BVD4060CL | 40*60 | 17 | 8 | 100~115pcs | 60 |
| BVD4560CL | 45*60 | 17 | 8 | 110~125pcs | 30 |
| BVD5060CL | 50*60 | 17 | 8 | 120~135pcs | 60 |
| BVD6060CL | 60*60 | 17 | 8 | 120~135pcs | 48 |
| BVD8060CL | 80*60 | 17 | 8 | 180~210pcs | 36 |
| BVD10060CL | 100*60 | 17 | 8 | 240~290pcs | 48 |
| BVD11060CL | 110*60 | 17 | 8 | 250~300pcs | 48 |
