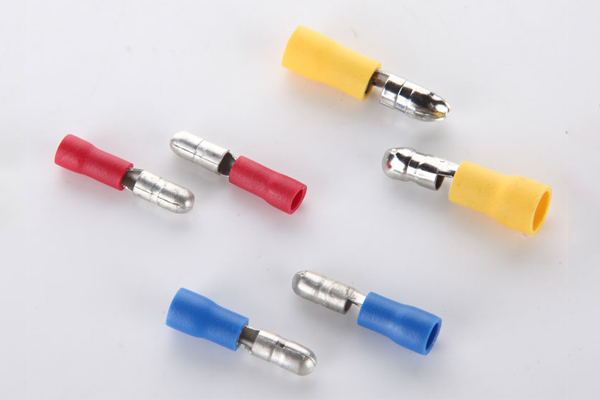

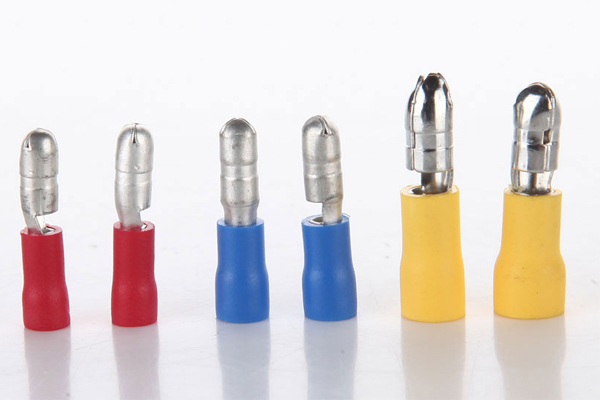

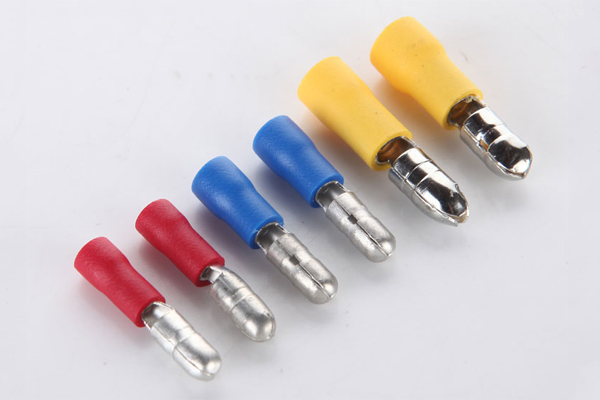

Bullet Terminals Insulated Bullet Wire Connector BFB
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Bullet Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(22～16) Max. current: lmax=10A | ||||||||

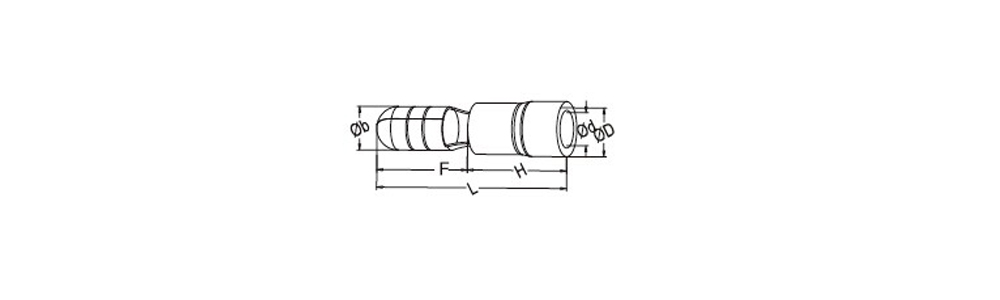

| Item No | Thickness of material | DIMENSION | Color | |||||
| bφ | F | Dφ | d | H | L | |||
| mm | mm | mm | mm | mm | mm | mm | ||
| BFB1.25-156 | 0.4 | 4 | 11 | 3.5 | 1.7 | 10 | 21 | Red |
| Insulated square：1.5～2.5mm²(16～14) Max. current: lmax=15A | ||||||||
| Item No | Thickness of material | DIMENSION | Color | |||||
| bφ | F | Dφ | d | H | L | |||
| mm | mm | mm | mm | mm | mm | mm | ||
| BFB2-156 | 0.4 | 4 | 11 | 4 | 2.3 | 10 | 21 | Blue |
| BFB2-195 | 0.4 | 5 | 11 | 4 | 2.3 | 10 | 21 | |
| Insulated square：4～6mm²(12～10) Max. current: lmax=24A | ||||||||
| Item No | Thickness of material | DIMENSION | Color | |||||
| bφ | F | Dφ | d | H | L | |||
| mm | mm | mm | mm | mm | mm | mm | ||
| BFB5.5-195 | 0.4 | 4 | 11 | 5 | 3.4 | 14 | 25 | Yellow |
