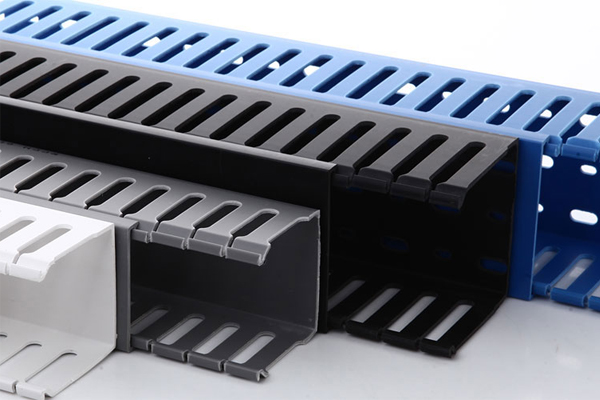

Slotted Cable Ducting Slot Wiring Duct 8mm*12mm
Specification:
Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Our Wide Slotted Cable Ducting is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

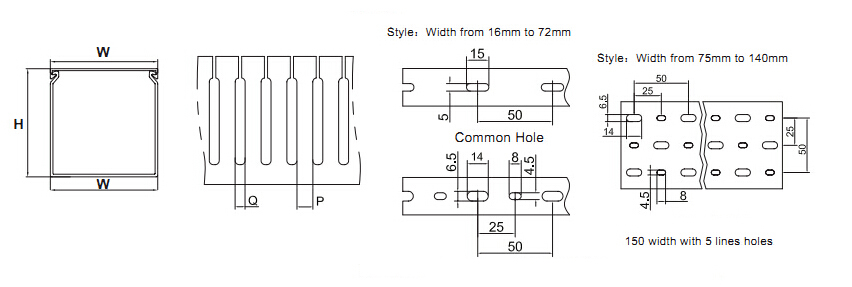

| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BVD2560T | 25*60 | 8 | 10 | 40~50pcs | 100M |
| BVD3060T | 30*60 | 8 | 10 | 60~80pcs | 80M |
| BVD3560T | 35*60 | 8 | 10 | 90-105pcs | 78M |
| BVD4060T | 40*60 | 8 | 10 | 100~115pcs | 60M |
| BVD4560T | 45*60 | 8 | 10 | 110~125pcs | 30M |
| BVD5060T | 50*60 | 8 | 10 | 120~135pcs | 60M |
| BVD6060T | 60*60 | 8 | 10 | 120~135pcs | 48M |
| BVD8060T | 80*60 | 8 | 10 | 180~210pcs | 36M |
| BVD10060T | 100*60 | 8 | 10 | 240~290pcs | 28M |
| BVD2580T | 25*80 | 8 | 10 | 100~120pcs | 72M |
| BVD3080T | 30*80 | 8 | 10 | 110~125pcs | 56M |
| BVD3580T | 35*80 | 8 | 10 | 110~130pcs | 56M |
| BVD4080T | 40*80 | 8 | 10 | 140~160pcs | 48M |
| BVD4580T | 45*80 | 8 | 10 | 140~160pcs | 40M |
| BVD5080T | 50*80 | 8 | 10 | 160~180pcs | 40M |
| BVD5580T | 55*80 | 8 | 10 | 160~180pcs | 32M |
| BVD6080T | 60*80 | 8 | 10 | 180~210pcs | 32M |
| BVD8080T | 80*80 | 8 | 10 | 240~290pcs | 24M |
| BVD10080T | 100*80 | 8 | 10 | 260~350pcs | 24M |
| BVD12080T | 120*80 | 8 | 10 | 280~380pcs | 16M |
| BVD33100T | 33*100 | 8 | 10 | 130~165 pcs | 44M |
| BVD40100T | 40*100 | 8 | 10 | 130~175 pcs | 40M |
| BVD50100T | 50*100 | 8 | 10 | 220~250 pcs | 40M |
| BVD60100T | 60*100 | 8 | 10 | 240~290 pcs | 32M |
| BVD70100T | 70*100 | 8 | 10 | 250~340 pcs | 24M |
| BVD75100T | 75*100 | 8 | 10 | 260~350 pcs | 24M |
| BVD80100T | 80*100 | 8 | 10 | 260~350 pcs | 24M |
| BVD100100T | 100*100 | 8 | 10 | 300-400pcs | 24M |
