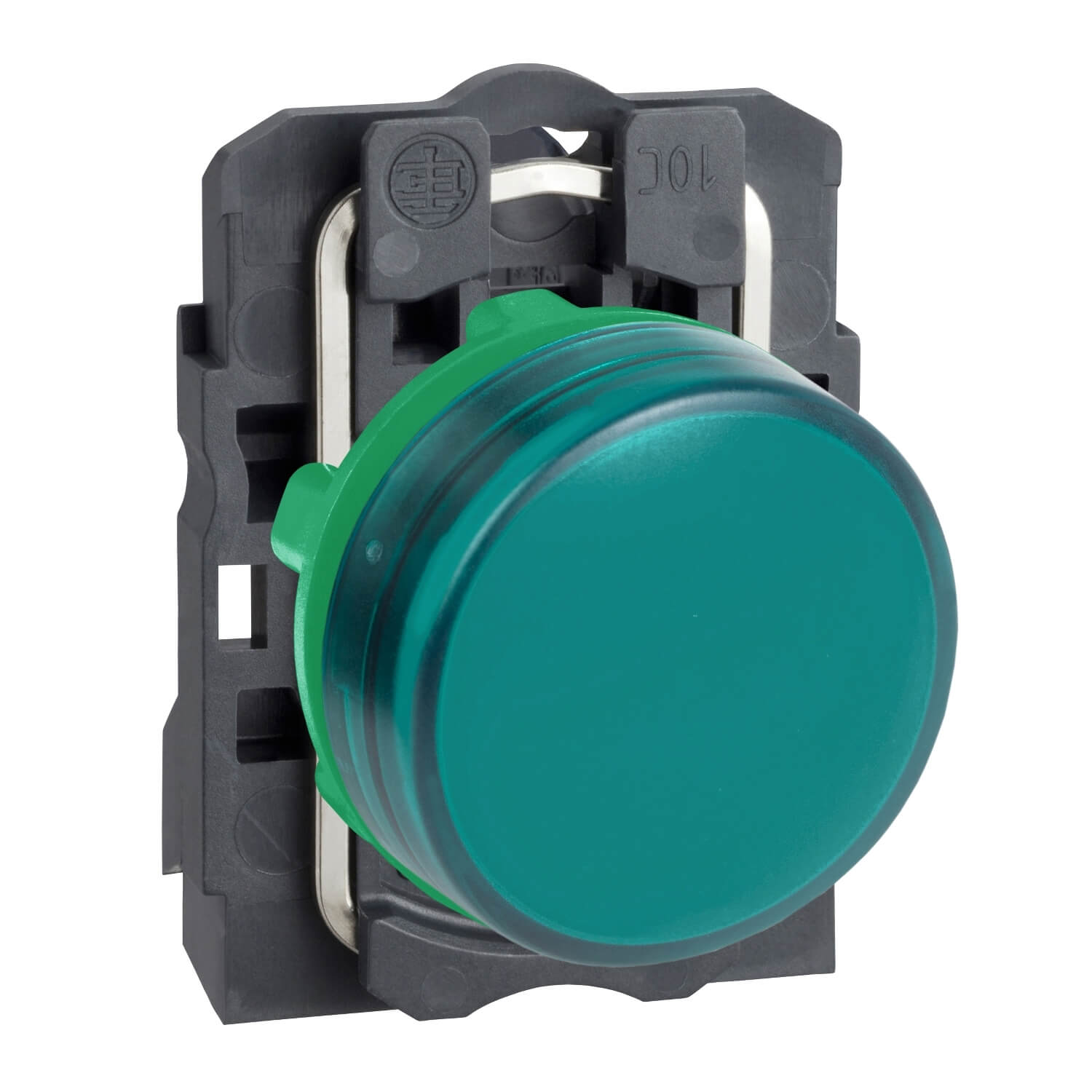

XB5AVM3 Pilot light, plastic, green, Ø22, plain lens with integral LED, 230…240 V AC

Category:

XB5AVM3 Pilot light, plastic, green, Ø22, plain lens with integral LED, 230…240 V AC

Specification:

Main
range of product
Harmony XB5
product or component type
Pilot light
device short name
XB5
bezel material
Dark grey plastic
fixing collar material
Plastic
head type
Standard
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
cap/operator or lens colour
Green
operator additional information
With plain lens
light source
Protected LED
bulb base
Integral LED
light source colour
Green
[Us] rated supply voltage
230…240 V AC at 50/60 Hz
device presentation
Complete product
Complementary
height
42 mm
width
30 mm
depth
54 mm
terminals description ISO n°1
(X1-X2)PL
net weight
0.038 kg
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
connections – terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
4 kV EN 60947-1
signalling type
Steady
GCR BRIDGE
XB5AVCUST05
compatibility code
XB5
supply voltage limits
195…264 V AC
current consumption
14 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV conforming to IEC 61000-4-5
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class II conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to ISO 20653
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK05 conforming to IEC 50102
standards
UL 508
EN/IEC 60947-5-4
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-5-1
EN/IEC 60947-1
JIS C8201-1
product certifications
UL listed
CSA
vibration resistance
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
shock resistance
50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
resistance to fast transients
2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields
10 V/m conforming to IEC 61000-4-3
electromagnetic compatibility
Electrostatic discharge – test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Electrostatic discharge – test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Electromagnetic emission class B conforming to IEC 55011
resistance to electrostatic discharge
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
electromagnetic emission
Class B conforming to IEC 55011
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
36 g
Package 1 Height
3.4 cm
Package 1 width
5.4 cm
Package 1 Length
8.8 cm
Package 2 Weight
5.887 kg
Package 3 Weight
56.26 kg
