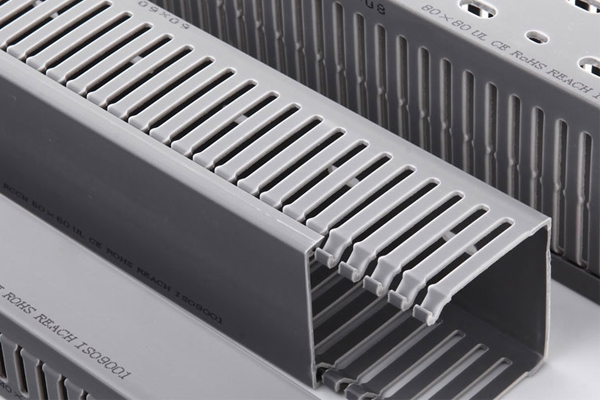

BHVD Wide Slotted Cable Trunking Wiring Duct
Specification:
Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Our Wide Slotted Cable Trunking is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.
mm:

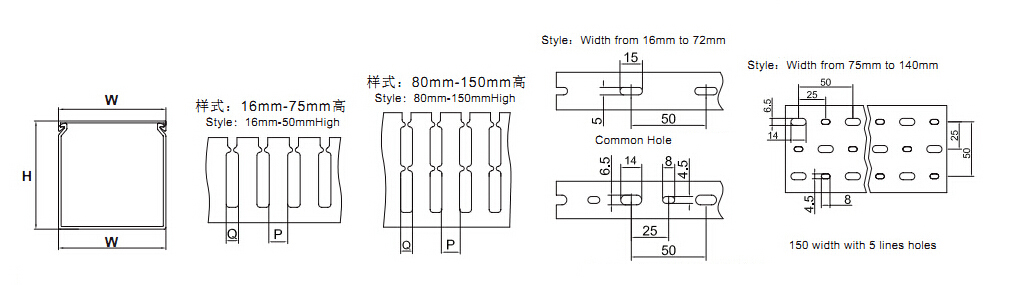

| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BHVD1616 | 16*16 | 5 | 8 | 3~10pcs | 300M |
| BHVD2516 | 25*16 | 5 | 8 | 8-12pcs | 100M |
| BHVD1520 | 15*20 | 5 | 8 | 8-12pcs | 260M |
| BHVD2020 | 20*20 | 5 | 8 | 10-20pcs | 240M |
| BHVD4020 | 40*20 | 5 | 8 | 15-30pcs | 140M |
| BHVD1525 | 15*25 | 5 | 8 | 5~15pcs | 260M |
| BHVD2025 | 20*20 | 5 | 8 | 5~15pcs | 200M |
| BHVD2525 | 25*25 | 5 | 8 | 10~25pcs | 200M |
| BHVD3025 | 30*25 | 5 | 8 | 12~28pcs | 160M |
| BHVD4025 | 40*25 | 5 | 8 | 20-35pcs | 100M |
| BHVD5025 | 50*25 | 5 | 8 | 12-28pcs | 100M |
| BHVD1530 | 15*30 | 5 | 8 | 8-15pcs | 180M |
| BHVD2030 | 20*30 | 5 | 8 | 25-35pcs | 160M |
| BHVD2530 | 25*30 | 5 | 8 | 25~35pcs | 160M |
| BHVD3030 | 30*30 | 5 | 8 | 25~35pcs | 140M |
| BHVD4030 | 40*30 | 5 | 8 | 30~40pcs | 100M |
| BHVD5030 | 50*30 | 5 | 8 | 40-50pcs | 80M |
| BHVD6030 | 60.3 | 5 | 8 | 50-60pcs | 60M |
| BHVD2233 | 22.33 | 5 | 8 | 25-35pcs | 160M |
| BHVD3333 | 33.33 | 5 | 8 | 35-45pcs | 160M |
| BHVD2035 | 20.35 | 5 | 8 | 30-40pcs | 100M |
| BHVD3535 | 35*35 | 5 | 8 | 35~45pcs | 112M |
| BHVD5035 | 50*35 | 5 | 8 | 40~60pcs | 88M |
| BHVD2040 | 20*40 | 5 | 8 | 16-22pcs | 11M |
| BHVD2540 | 25*40 | 5 | 8 | 20~25pcs | 112M |
| BHVD3540 | 35*40 | 5 | 8 | 30-45pcs | 100M |
| BHVD4040 | 40*40 | 5 | 8 | 60~70pcs | 100M |
| BHVD6040 | 60*40 | 5 | 8 | 100~115pcs | 68M |
| BHVD8040 | 80*40 | 5 | 8 | 120~135pcs | 48M |
| BHVD10040 | 100*40 | 5 | 8 | 120~135pcs | 32M |
| BHVD12040 | 120*40 | 5 | 8 | 140-155pcs | / |
| BHVD2545 | 25*45 | 5 | 8 | 20~25pcs | 104M |
| BHVD3345 | 33*45 | 5 | 8 | 40~55pcs | 108M |
| BHVD4545 | 45*45 | 5 | 8 | 60~70pcs | 72M |
| BHVD6545 | 65*45 | 5 | 8 | 110~120pcs | 56M |
| BHVD2050 | 20*50 | 5 | 8 | 18-28pcs | 100M |
| BHVD2550 | 25*50 | 5 | 8 | 20~30pcs | 100M |
| BHVD3050 | 30*50 | 5 | 8 | 25~40pcs | 84M |
| BHVD3550 | 35*50 | 5 | 8 | 40~60pcs | 80M |
| BHVD4050 | 40*50 | 5 | 8 | 60~70pcs | 68M |
| BHVD4550 | 45*50 | 5 | 8 | 70~80pcs | 60M |
| BHVD5050 | 50*50 | 5 | 8 | 80~90pcs | 50M |
| BHVD5550 | 55*50 | 5 | 8 | 85-95pcs | 48M |
| BHVD6050 | 60*50 | 5 | 8 | 100~120pcs | 48M |
| BHVD7550 | 75*50 | 5 | 8 | 150-170pcs | 40M |
| BHVD8050 | 80*50 | 5 | 8 | 160~180pcs | 40M |
| BHVD10050 | 100*50 | 5 | 8 | 200~250pcs | 26M |
| BHVD12555 | 125*55 | 5 | 8 | 220-270pcs | 20M |
| BHVD2060 | 20*60 | 5 | 8 | 35-45pcs | 100M |
| BHVD2560 | 25*60 | 5 | 8 | 40~50pcs | 100M |
| BHVD3060 | 30*60 | 5 | 8 | 60~80pcs | 80M |
| BHVD3560 | 35*60 | 5 | 8 | 90-105pcs | 78M |
| BHVD4060 | 40*60 | 5 | 8 | 100~115pcs | 60M |
| BHVD4560 | 45*60 | 5 | 8 | 110~125pcs | 30M |
| BHVD5060 | 50*60 | 5 | 8 | 120~135pcs | 60M |
| BHVD6060 | 60*60 | 5 | 8 | 120~135pcs | 48M |
| BHVD8060 | 80*60 | 5 | 8 | 180~210pcs | 36M |
| BHVD10060 | 100*60 | 5 | 8 | 240~290pcs | 28M |
| BHVD11060 | 110*60 | 5 | 8 | 250~300pcs | 48M |
| BHVD12060 | 120*60 | 5 | 8 | 260-320pcs | 48M |
| BHVD15060 | 150*60 | 5 | 8 | 300-360pcs | 16M |
| BHVD2565 | 25*65 | 5 | 8 | 40~50pcs | 88M |
| BHVD3365 | 33*65 | 5 | 8 | 40~70pcs | 80M |
| BHVD4565 | 45*65 | 5 | 8 | 110~120pcs | 52M |
| BHVD6565 | 65*65 | 5 | 8 | 180~200pcs | 44M |
| BHVD7265 | 72*65 | 5 | 8 | 180-230pcs | 42M |
| BHVD5075 | 50*75 | 5 | 8 | 180-210pcs | 42M |
| BHVD7575 | 75*75 | 5 | 8 | 200-240PCS | 40M |
| BHVD10075 | 100*75 | 5 | 8 | 250-290PCS | 24M |
| BHVD2580 | 25*80 | 5 | 8 | 100~120pcs | 72M |
| BHVD3080 | 30*80 | 5 | 8 | 110~125pcs | 56M |
| BHVD3580 | 35*80 | 5 | 8 | 110~130pcs | 56M |
| BHVD4080 | 40*80 | 5 | 8 | 140~160pcs | 48M |
| BHVD4580 | 45*80 | 5 | 8 | 140~160pcs | 40M |
| BHVD5080 | 50*80 | 5 | 8 | 160~180pcs | 40M |
| BHVD5580 | 55*80 | 5 | 8 | 160~180pcs | 32M |
| BHVD6080 | 60*80 | 5 | 8 | 180~210pcs | 32M |
| BHVD8080 | 80*80 | 5 | 8 | 240~290pcs | 24M |
| BHVD10080 | 100*80 | 5 | 8 | 260~350pcs | 24M |
| BHVD12080 | 120*80 | 5 | 8 | 280~380pcs | 16M |
| BHVD14080 | 140*80 | 5 | 8 | 350~450pcs | 16M |
| BHVD25100 | 25*100 | 5 | 8 | 110~160pcs | 60M |
| BHVD33100 | 33*100 | 5 | 8 | 130~175pcs | 44M |
| BHVD40100 | 40*100 | 5 | 8 | 130~175pcs | 40M |
| BHVD50100 | 50*100 | 5 | 8 | 220~250pcs | 40M |
| BHVD60100 | 60*100 | 5 | 8 | 240~290pcs | 32M |
| BHVD70100 | 40*100 | 5 | 8 | 250-340pcs | 24M |
| BHVD75100 | 75*100 | 5 | 8 | 260~350pcs | 24M |
| BHVD80100 | 80*100 | 5 | 8 | 260~350pcs | 24M |
| BHVD100100 | 100*100 | 5 | 8 | 300-400pcs | 24M |
| BHVD120100 | 120*100 | 5 | 8 | 350-450pcs | 16M |
| BHVD150100 | 150*100 | 5 | 8 | 400-650pcs | 16M |
| BHVD100130 | 100*130 | 5 | 8 | 350-450pcs | 24M |
| BHVD200100 | 200*100 | 5 | 8 | 600-800pcs | 16M |
| BHVD200150 | 200*150 | 5 | 8 | 900-1200pcs | 16M |
