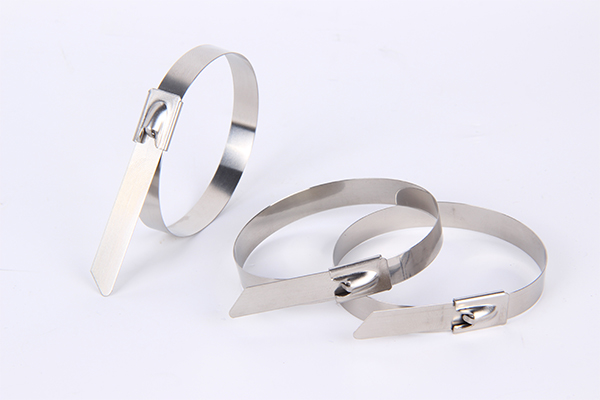

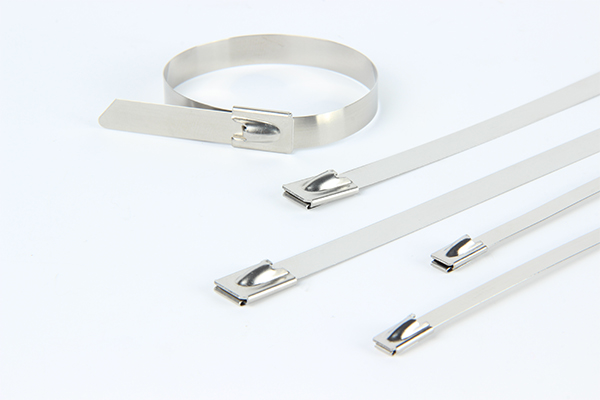

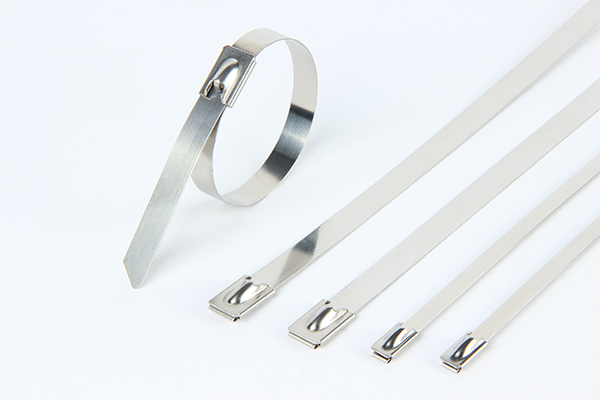

Stainless Steel Cable Ties Self-locking Cable Ties BZ-C

Specification：

Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temperature: -80℃ to 150℃
Description: Black
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. Stainless Steel Cable Ties also available with coating for customized applications.

Item No.	Width		Length		Thickness		Max.Bundle Dia.		Min.Bundle Dia.		Min. Tensile Strength
Item No.	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	N	lbs
BZ-C 4.6×100	4.6	0.18	100	3.9	0.26	0.010	25	1.00	12.7	0.50	1100	250
BZ-C 4.6×150			150	5.9			37	1.46
BZ-C 4.6×200			200	7.9			50	1.97
BZ-C 4.6×250			250	9.8			63	2.50
BZ-C 4.6×300			300	11.8			76	3.00
BZ-C 4.6×350			350	13.8			89	3.51
BZ-C 4.6×400			400	15.7			102	4.00
BZ-C 4.6×450			450	17.7			115	4.50
BZ-C 4.6×500			500	19.7			128	5.00
BZ-C 4.6×550			550	21.7			141	5.56
BZ-C 4.6×650			650	25.6			167	6.58
BZ-C 4.6×700			700	27.6			179	7.05
BZ-C 4.6×800			800	31.5			193	7.60
BZ-C 4.6×900			900	35.4			200	7.87
BZ-C 4.6×1000			1000	39.4			206	8.12
BZ-C 4.6×1100			1100	43.3			278	10.94
BZ-C 7.9×150	7.9	0.31	150	5.9	0.26	0.010	37	1.46	12.7	0.50	1500	340
BZ-C 7.9 x 200			200	7.9			50	1.97
BZ-C 7.9×250			250	9.8			63	2.50
BZ-C 7.9×300			300	11.8			76	3.00
BZ-C 7.9×350			350	13.8			89	3.50
BZ-C 7.9×400			400	15.7			102	4.00
BZ-C 7.9×500			500	19.7			128	5.00
BZ-C 7.9×600			600	23.6			154	6.07
BZ-C 7.9×800			800	31.5			193	7.60
BZ-C 7.9×1000			1000	39.4			206	8.12
BZ-C 10×300	10	0.39	300	11.8	0.26	0.010	76	3.00	12.7	0.50	2100	480
BZ-C 10×350			350	13.8			89	3.50
BZ-C 10×400			400	15.7			102	4.00
BZ-C 10×500			500	19.7			128	5.00
BZ-C 10×600			600	23.6			154	6.07
BZ-C 10×800			800	31.5			193	7.60
BZ-C 10×1000			1000	39.4			206	8.12
BZ-C 12×350	12	0.47	350	13.8	0.35	0.014	78	3.07	25.4	1.00	3000	675
BZ-C 12×400			400	15.7			102	4.02
BZ-C 12×500			500	19.7			128	5.04
BZ-C 12×600			600	23.6			154	6.06
BZ-C 12×750			750	29.5			188	7.40
BZ-C 12×900			900	35.4			228	8.98
BZ-C 12×1100			1100	43.3			278	10.94
BZ-C 12.7×350	12.7	0.50	350	13.8	0.35	0.014	78	3.07	25.4	1.00	3200	720
BZ-C 12.7×400			400	15.7			102	4.02
BZ-C 12.7×500			500	19.7			128	5.04
BZ-C 12.7×600			600	23.6			154	6.06
BZ-C 12.7×750			750	29.5			188	7.40
BZ-C 12.7×900			900	35.4			228	8.98
BZ-C 12.7×1100			1100	43.3			278	10.94
BZ-CP 15×350	15	0.59	350	13.8	0.45	0.018	78	3.07	25.4	1.00	3400	770
BZ-CP 15×400			400	15.7			102	4.02
BZ-CP 15×450			450	17.7			108	4.25
BZ-CP 15×600			600	23.6			148	5.83
BZ-CP 15×750			750	29.5			184	7.24
BZ-CP 15×900			900	35.4			220	8.66
BZ-CP 15×1100			1100	43.3			272	10.71
