Small Compact Thermostat KTS 011 / KTO 011
Specification：
Switch temperature difference: Silicon Rubber, NBR
Sensor element: Thermostatic bimetal
Contact type: Snap-action contact
Service life: > 100,000 cycles
Max. switching capacity: 250VAC, 10 (2) A / 120VAC, 15 (2) A, DC 30W at 24VDC to 72VDC

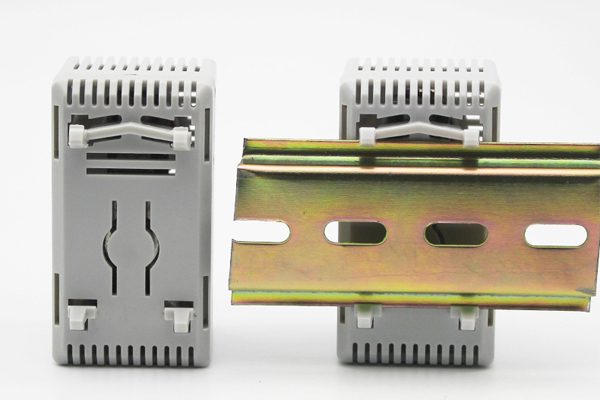

Mounting: Clipping for 35mm DIN rail
Casing: Plastic according to UL94 V-0, light grey

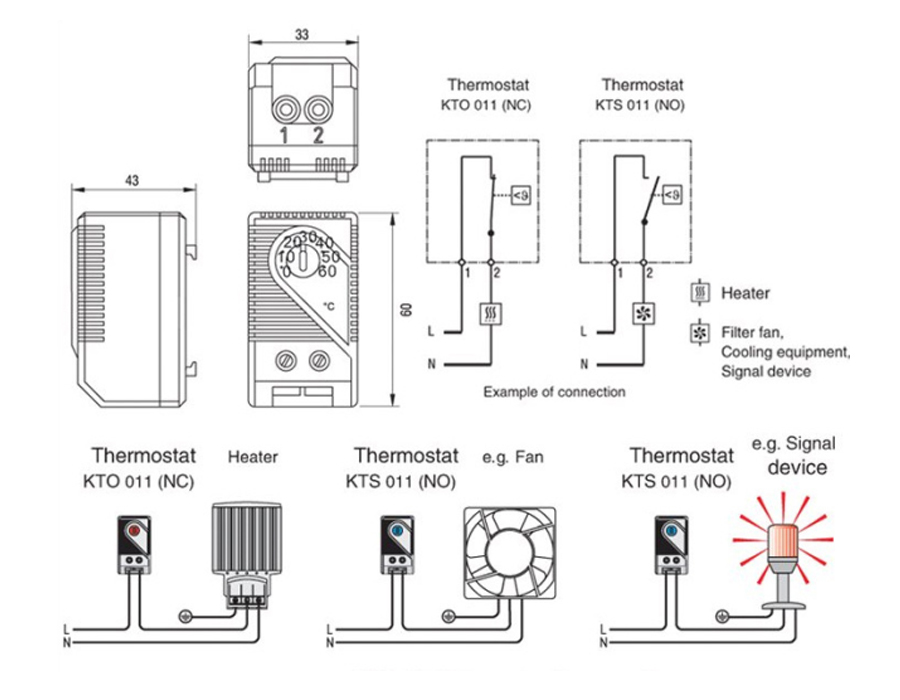

Dimensions: 60 x 33 x 43mm
Weight: 40g
Working Temperature: -45 to +80°C
Working humidity: max. 90% RH
Protection Rating: IP20

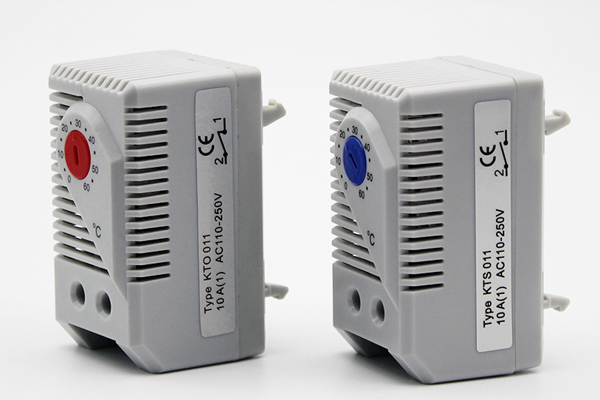

KTO 011: Thermostat (normally closed), The contact opens when the temperature is rising.
KTS 011: Thermostat (normally open), The contact closes when the temperature is rising.
