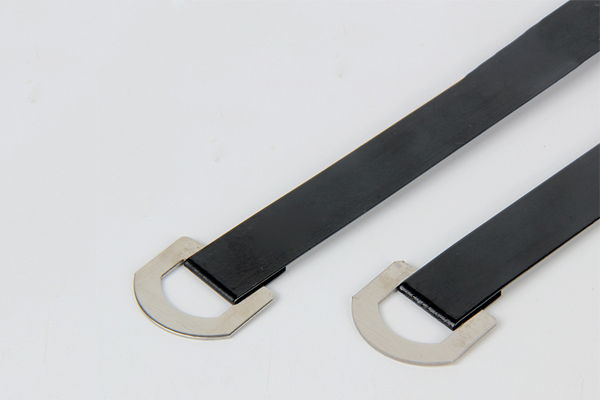

Stainless Steel Wire Tie D Type Cable Ties BZ-D Corrosion Resistant 304
Specification：
Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temperature: -40℃ to 85℃
Description: Black Strap and Metallic Buckle
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. The Stainless Steel Wire Tie provides extra corrosion protection, excellent chemical resistance.
| Item No. | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min. Tensile Strength | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | |
| BZ-D 15×150 | 15 | 0.59 | 150 | 5.91 | 0.45 | 0.018 | 37 | 1.46 | 25.4 | 1.00 | 265 | 60 |
| BZ-D 15×200 | 200 | 7.87 | 50 | 1.97 | ||||||||
| BZ-D 15×250 | 250 | 9.84 | 63 | 2.48 | ||||||||
| BZ-D 15×300 | 300 | 11.81 | 76 | 2.99 | ||||||||
| BZ-C 15×350 | 350 | 13.78 | 89 | 3.50 | ||||||||
| BZ-D 15×400 | 400 | 15.75 | 102 | 4.02 | ||||||||
| BZ-D 15×450 | 450 | 17.72 | 115 | 4.53 | ||||||||
| BZ-D 15×500 | 500 | 19.69 | 128 | 5.04 | ||||||||
| BZ-D 15×550 | 550 | 21.65 | 142 | 5.59 | ||||||||
| BZ-D 15×600 | 600 | 23.62 | 155 | 6.10 | ||||||||
| BZ-D 15×800 | 800 | 31.50 | 193 | 7.60 | ||||||||
