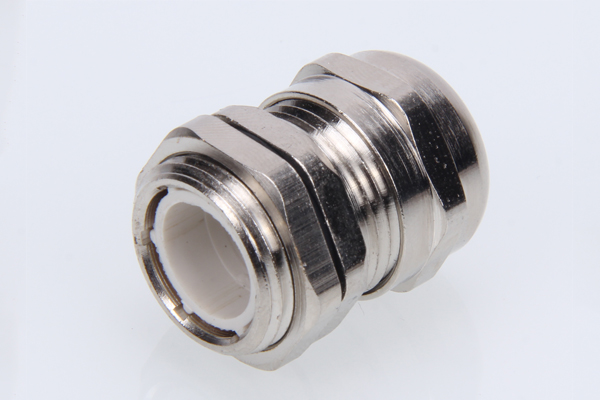

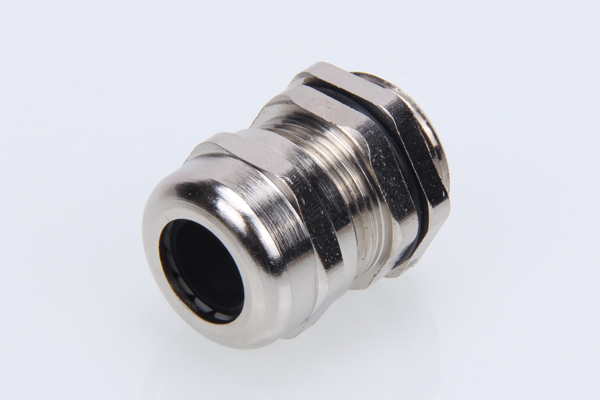

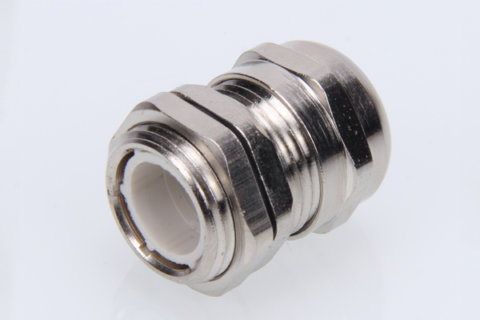

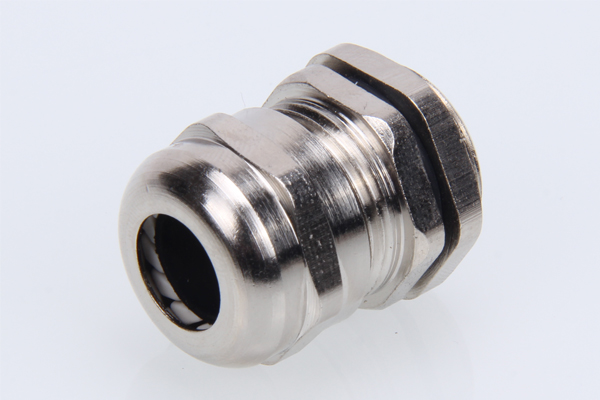

Straight Head Brass Cable Gland Waterproof
Specification:

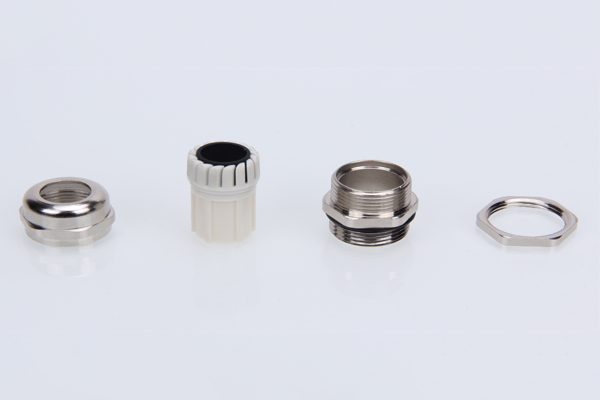

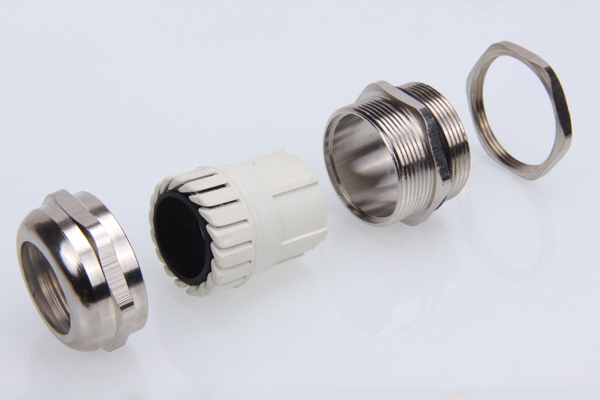

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

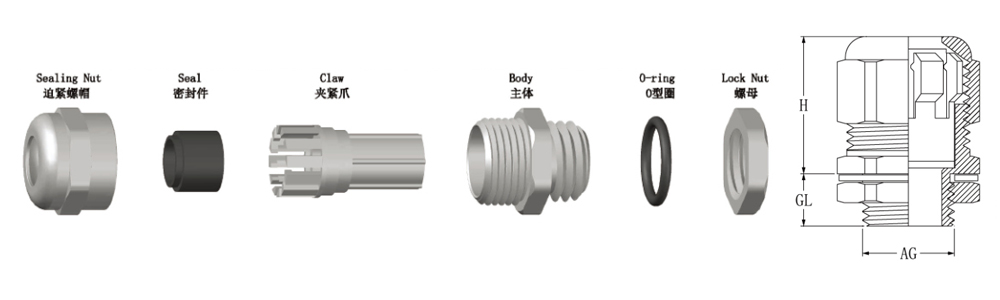

(In mm)
| Item | Cable Range | Thread Length GL |
Thread O.D. AG |
Joint Length H |
Spanner size | Item No. |
| M12X1.5 | 3-6.5 | 6.5 | 12 | 17 | 14 | BDM12 |
| M16X1.5 | 4-8 | 8 | 16 | 19 | 18 | BDM16 |
| M18X1.5 | 5-10 | 8 | 18 | 21 | 20 | BDM18 |
| M20X1.5 | 6-12 | 8 | 20 | 22 | 22 | BDM20 |
| M22X1.5 | 10-14 | 8 | 22 | 23 | 24 | BDM22 |
| M25X1.5 | 10-14 | 9 | 25 | 25 | 24/27 | BDM25-14 |
| M25X1.5 | 13-18 | 9 | 25 | 27 | 30/27 | BDM25-18 |
| M27X1.5 | 13-18 | 9 | 27 | 27 | 30 | BDM27 |
| M32X1.5 | 15-22 | 10 | 32 | 29 | 35 | BDM32 |
| M36X1.5 | 18-25 | 10 | 36 | 31 | 40 | BDM36 |
| M40X1.5 | 18-25 | 10 | 40 | 31 | 40/45 | BDM40-25 |
| M40X1.5 | 22-30 | 10 | 40 | 35 | 45 | BDM40-30 |
| M48X1.5 | 25-33 | 10 | 48 | 37 | 50/52 | BDM48 |
| M50X1.5 | 32-38 | 10 | 50 | 37 | 57/55 | BDM50 |
| M63X1.5 | 37-44 | 10 | 63 | 38 | 64/68 | BDM63 |
| M72X2 | 42-52 | 10 | 72 | 44 | 78 | BDM72 |
| M80X2 | 55-60 | 15 | 80 | 45 | 88 | BDM80 |
