Specification:
range of product |

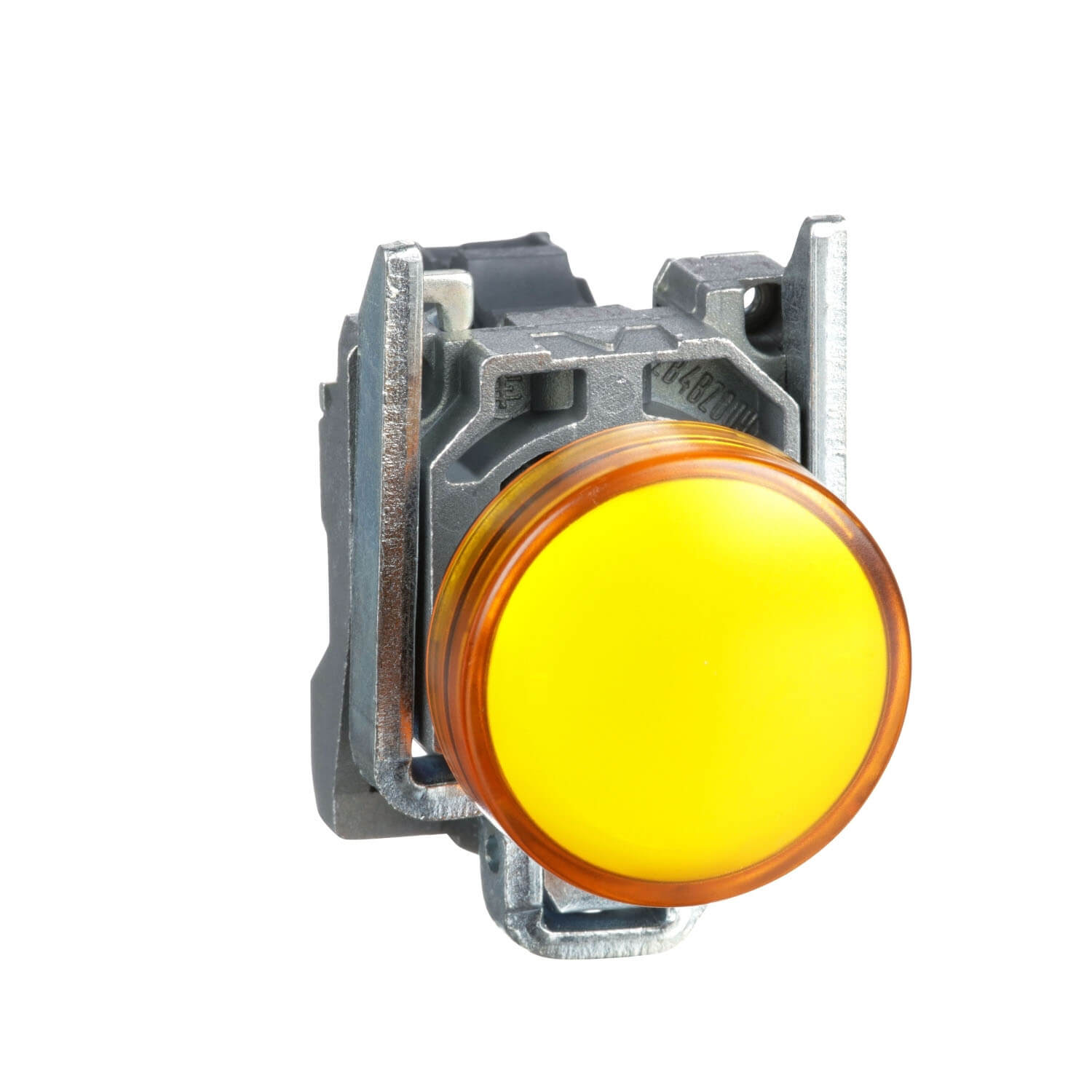

Harmony XB4
|
|
---|---|---|
product or component type |
Pilot light
|
|
device short name |
XB4
|
|
bezel material |
Chromium plated metal
|
|
fixing collar material |
Zamak
|
|
mounting diameter |
22 mm
|
|
head type |
Standard
|
|
sale per indivisible quantity |
1
|
|
shape of signaling unit head |
Round
|
|
cap/operator or lens colour |
Orange
|
|
operator additional information |
With plain lens
|
|
light source |
Protected LED
|
|
bulb base |
Integral LED
|
|
light source colour |
Orange
|
|
[Us] rated supply voltage |
110…120 V AC 50/60 Hz
|
height |
47 mm
|
|
---|---|---|
width |
30 mm
|
|
depth |
54 mm
|
|
terminals description ISO n°1 |
(X1-X2)PL
|
|
net weight |
0.08 kg
|
|
resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
[Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to EN 60947-1
|
|
[Uimp] rated impulse withstand voltage |
EN 60947-1 4 kV
|
|
signalling type |
Steady
|
|
current consumption |
14 mA
|
|
service life |
100000 h at rated voltage and 25 °C
|
|
surge withstand |
1 kV conforming to IEC 61000-4-5
|
|
device presentation |
Complete product
|
|
supply voltage limits |
100…132 V AC
|
protective treatment |
TH
|
|
---|---|---|
ambient air temperature for storage |
-40…70 °C
|
|
ambient air temperature for operation |
-40…70 °C
|
|
electrical shock protection class |
Class I conforming to IEC 60536
|
|
IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
NEMA degree of protection |
NEMA 13
NEMA 4X |
|
IK degree of protection |
IK06 conforming to IEC 50102
|
|
standards |
EN/IEC 60947-5-1
CSA C22.2 No 14 UL 508 EN/IEC 60947-1 EN/IEC 60947-5-5 EN/IEC 60947-5-4 JIS C8201-5-1 JIS C8201-1 |
|
product certifications |
UL listed
CSA |
|
vibration resistance |
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
|
|
shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
|
resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
resistance to electrostatic discharge |
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
|
electromagnetic emission |
Class B conforming to IEC 55011
|
Unit Type of Package 1 |
PCE
|
|
---|---|---|
Number of Units in Package 1 |
1
|
|
Package 1 Weight |
79 g
|
|
Package 1 Height |
3.4 cm
|
|
Package 1 width |
5.4 cm
|
|
Package 1 Length |
8.8 cm
|
|
Package 2 Weight |
1.395 kg
|
|
Package 3 Weight |
12.541 kg
|
