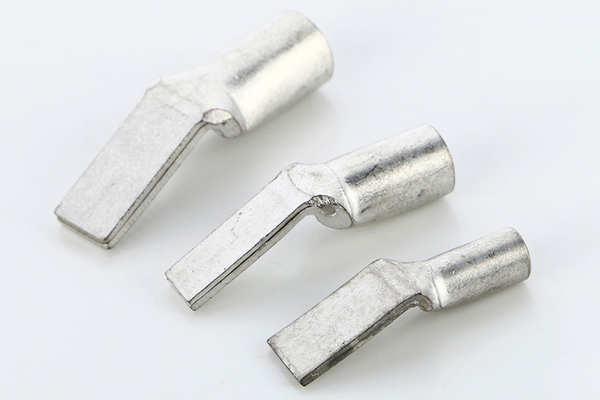

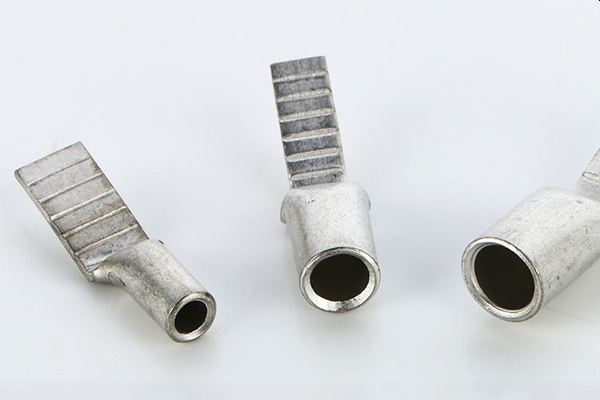

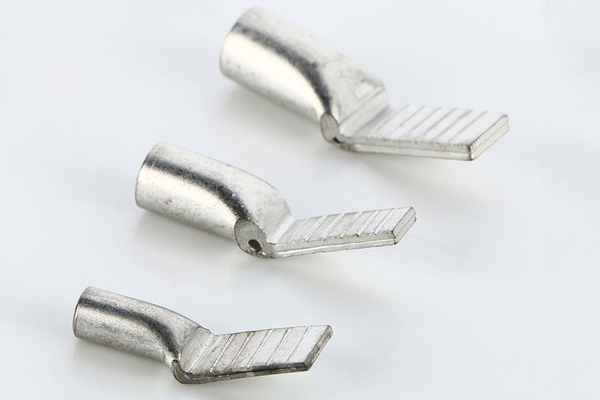

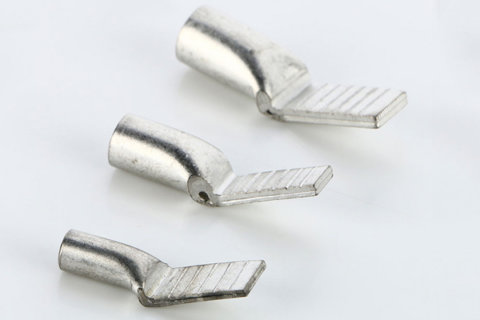

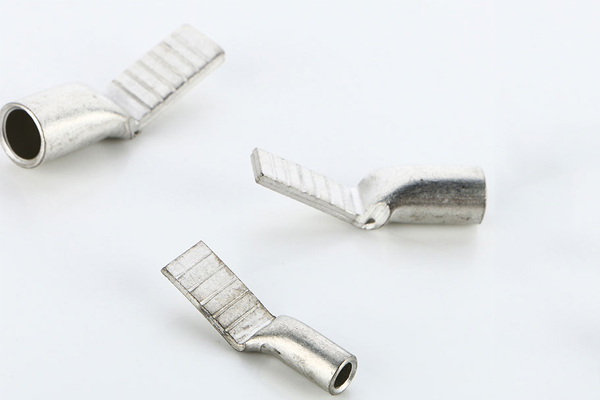

High Voltage Copper Lugs 45° Electrical Cable Lugs C45
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The High Voltage Copper Lugs are made of the high-quality copper which ensures good conductivity at its user end. The High Voltage Copper Lugs are tin plated to provide excellent corrosion resistance.

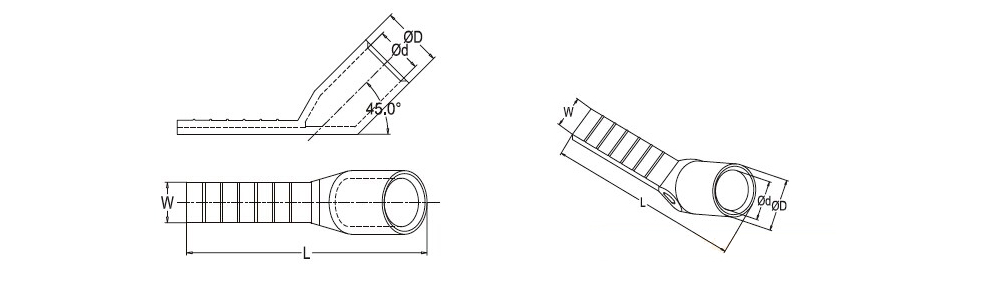

(In mm)
| Item No. | Dφ | dφ | W | L |
| C45-4 | 5 | 3 | 6.6 | 24 |
| C45- 6 | 5.9 | 3.9 | 7 | 28 |
| C45-10 | 6.9 | 4.9 | 7 | 28 |
| C45-16 | 8.1 | 5.9 | 7 | 31 |
| C45-25 | 10 | 7.3 | 7 | 33 |
| C45-35 | 11.2 | 8.4 | 7 | 39 |
| C45-50 | 12.5 | 9.5 | 7 | 45 |
| C45-70 | 14.7 | 11.2 | 7 | 50 |
