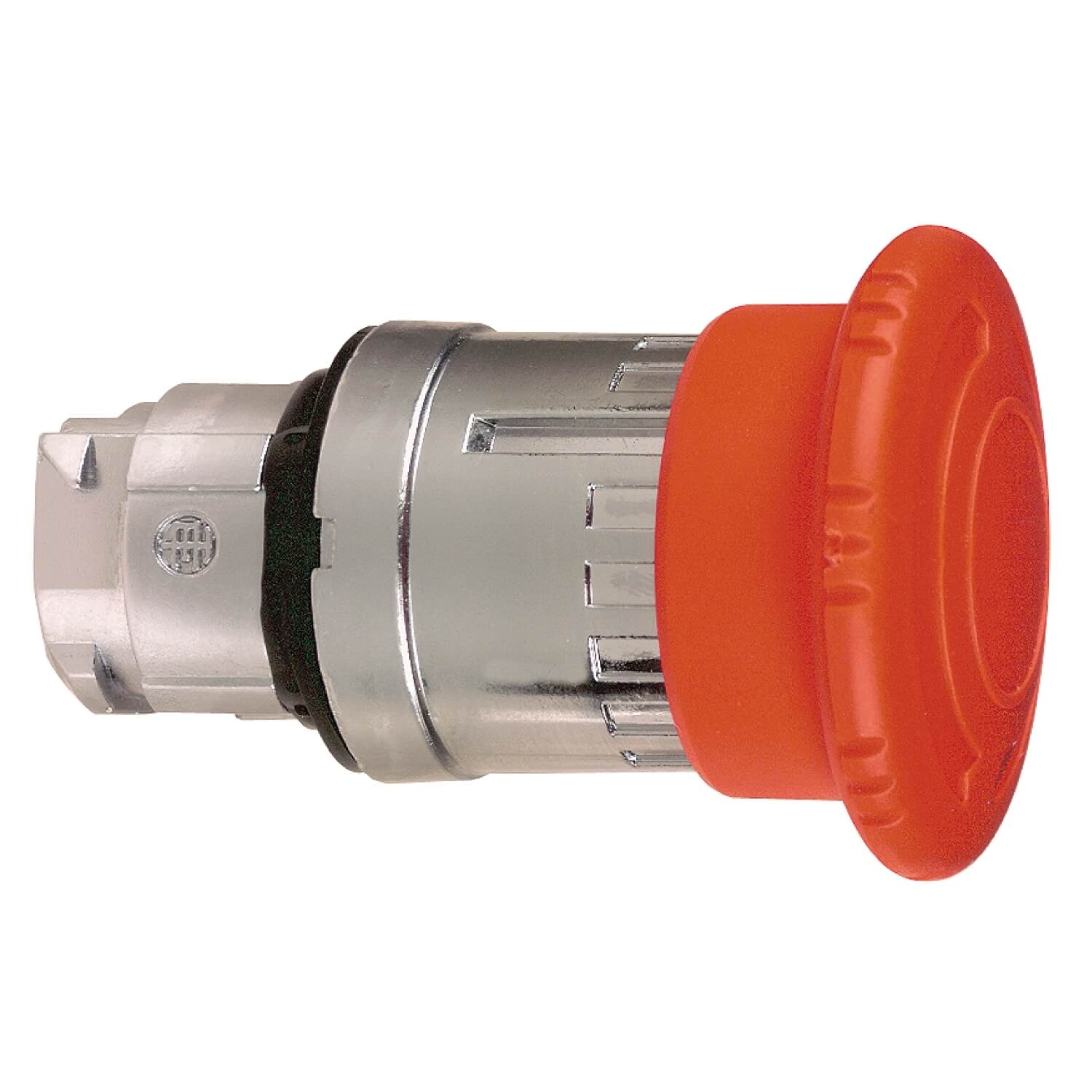

ZB4BS844 Red Ø40 Emergency stop, switching off head Ø22 trigger and latching turn release
Specification：
| range of product |
Harmony XB4
|
|---|---|
| product or component type |
Head for emergency switching off push-button
|
| device short name |
ZB4
|
| bezel material |
Chromium plated metal
|
| mounting diameter |
22 mm
|
| sale per indivisible quantity |
1
|
| shape of signaling unit head |
Round
|
| type of operator |
Trigger action and mechanical latching
|
| reset |
Turn to release
|
| operator profile |
Red mushroom Ø 40 mm unmarked
|
| head type |
Standard
|
| CAD overall width |
40 mm
|
|---|---|
| CAD overall height |
40 mm
|
| CAD overall depth |
57 mm
|
| product weight |
0.073 kg
|
| mechanical durability |
300000 cycles
|
| electrical composition code |
C15 for 1 contacts using single blocks in front mounting
C11 for 3 contacts using single blocks in front mounting C7 for 4 contacts using single blocks in front mounting C8 for 4 contacts using single and double blocks in front mounting C10 for 4 contacts using single and double blocks in front mounting |
| protective treatment |
TH
|
|---|---|
| ambient air temperature for storage |
-40…70 °C
|
| ambient air temperature for operation |
-40…70 °C
|
| electrical shock protection class |
Class I conforming to IEC 61140
|
| IP degree of protection |
IP69
IP66 conforming to IEC 60529 IP69K |
| NEMA degree of protection |
NEMA 12
NEMA 13 NEMA 4 NEMA 4X |
| IK degree of protection |
IK06 conforming to IEC 50102
|
| standards |
EN/IEC 60204-1
EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 EN/ISO 13850 IEC 60364-5-53 JIS C 4520 UL 508 GB 14048.5 CSA C22.2 No 14 |
| product certifications |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL listed |
| vibration resistance |
5 gn (f = 2…500 Hz) conforming to IEC 60068-2-6
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
