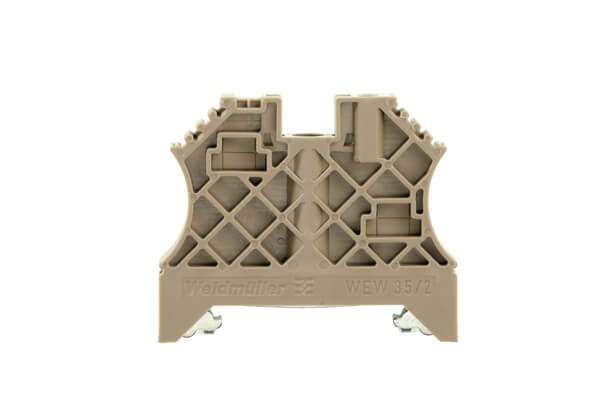

1061200000 WEW 35/2 W-Series, End bracket

Specification：

Type WEW 35/2
Order No. 1061200000
Version W-Series, End bracket
Continuous operating temp., min. -50 °C
Continuous operating temp., max. 100 °C
Installation advice Direct mounting
Interlock for screw fixing
Snap-on No
Type of mounting when screwed in
With snap-in pegs No
