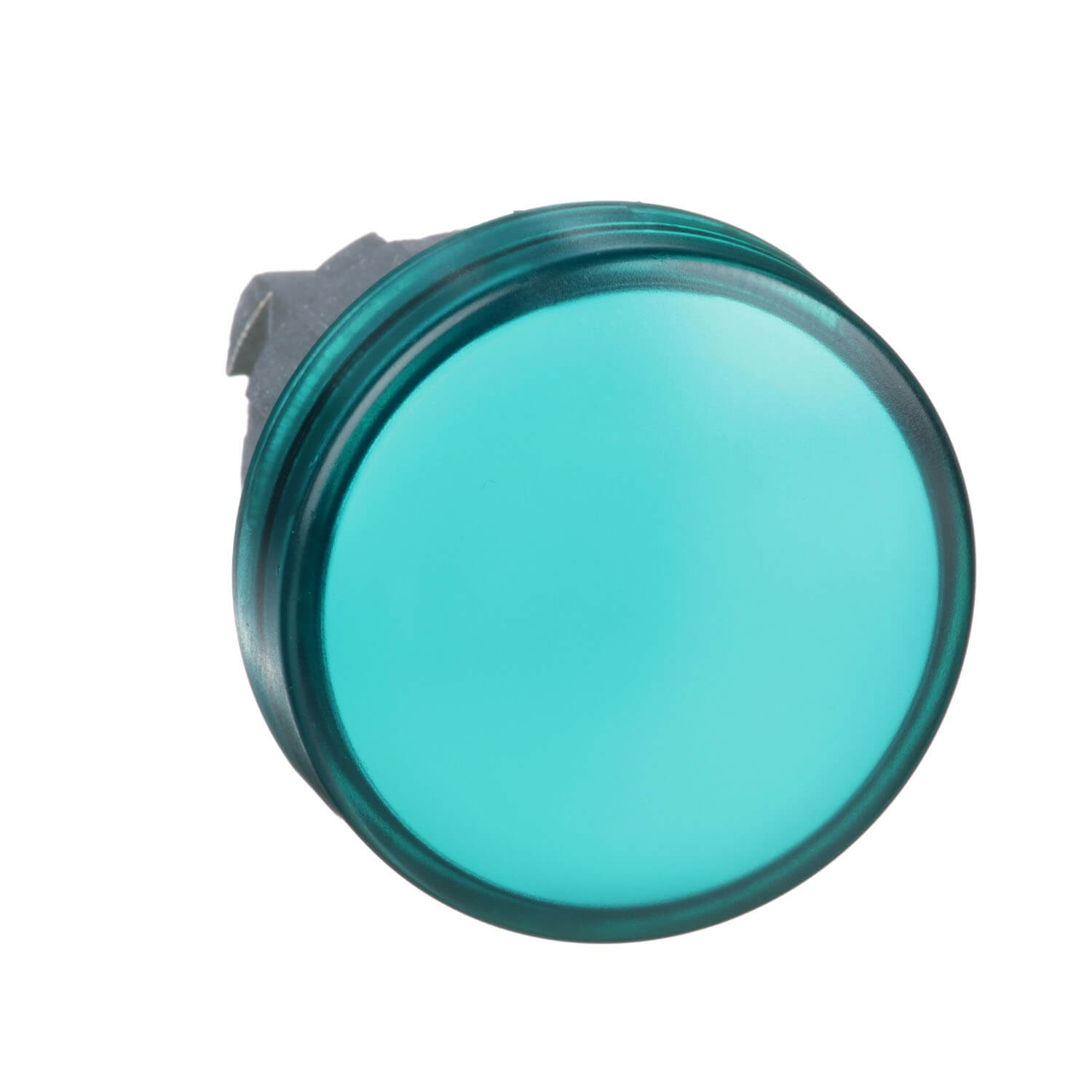

ZB4BV033 Green pilot light head Ø22 with plain lens for integral LED

Category:

ZB4BV033 Green pilot light head Ø22 with plain lens for integral LED

Specification:

Main
range of product
Harmony XB4
product or component type
Head for pilot light
product compatibility
Integral LED
device short name
ZB4
bezel material
Chromium plated metal
mounting diameter
22 mm
sale per indivisible quantity
1
head type
Standard
shape of signaling unit head
Round
cap/operator or lens colour
Green
operator additional information
With plain lens
Complementary
CAD overall width
29 mm
CAD overall height
29 mm
CAD overall depth
30 mm
net weight
0.026 kg
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
electrical composition code
P1 in front mounting with integral LED
P2 in front mounting with integral LED and transformer
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class I conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
standards
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-5
UL 508
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C8201-1
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
28 g
Package 1 Height
3.4 cm
Package 1 width
4.5 cm
Package 1 Length
5.4 cm
Package 2 Weight
1.14 kg
Package 3 Weight
8.785 kg
