Specification:
range of product |
Harmony XB4
|
|
---|---|---|
product or component type |

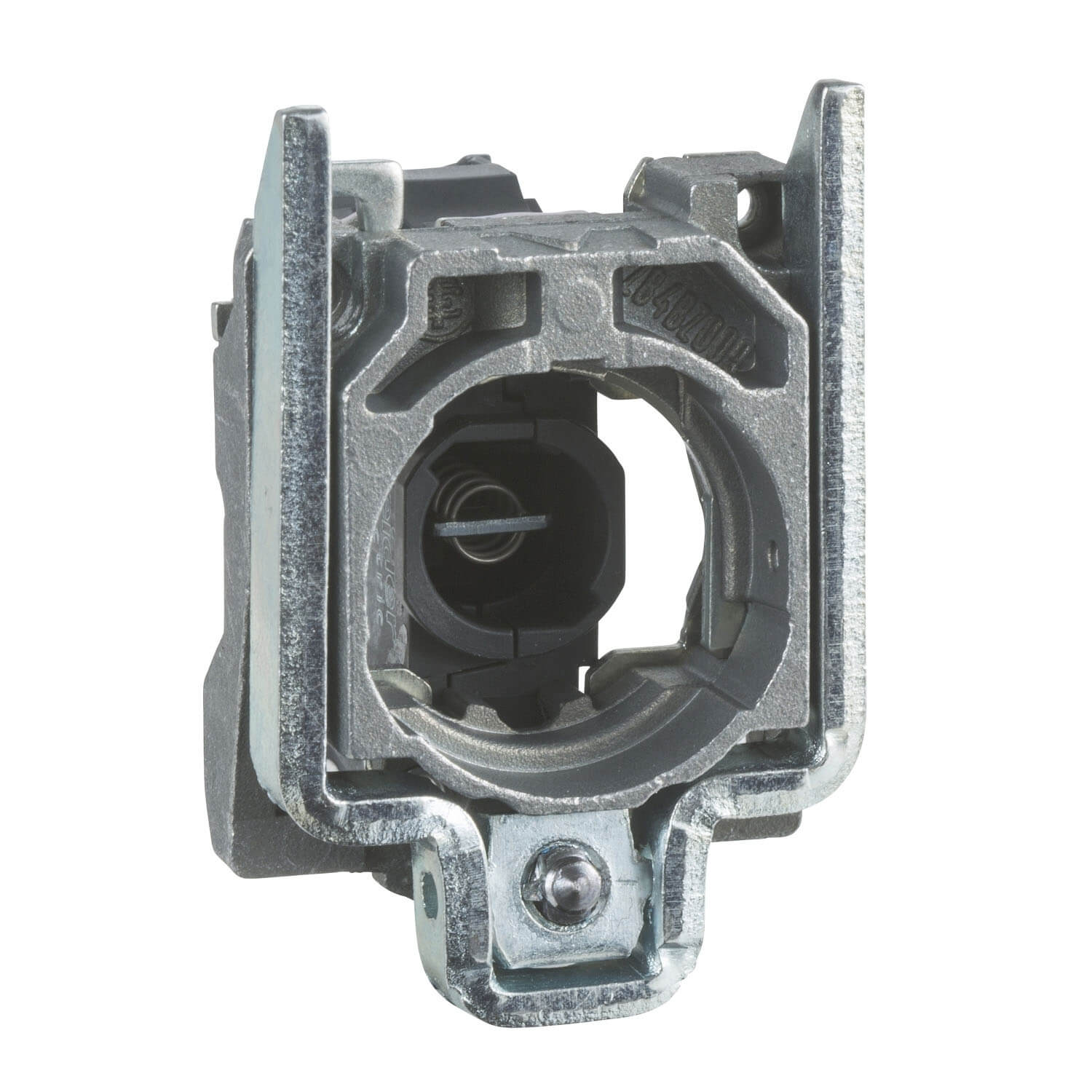

Complete body/light block assembly
|
|
device short name |
ZB4
|
|
fixing collar material |
Zamak
|
|
sale per indivisible quantity |
1
|
|
connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
|
light source |
Bulb not included
|
|
bulb base |
BA 9s
|
|
light block supply |
Direct <2.4 W
|
|
[Us] rated supply voltage |
<= 250 V
|
CAD overall width |
30 mm
|
|
---|---|---|
CAD overall height |
47 mm
|
|
CAD overall depth |
37 mm
|
|
terminals description ISO n°1 |
(X1-X2)PL
|
|
net weight |
0.052 kg
|
|
tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
shape of screw head |
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
[Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1
|
|
[Uimp] rated impulse withstand voltage |
EN 60947-1 6 kV
|
|
signalling type |
Steady
|
|
device presentation |
Basic sub-assemblies
|
protective treatment |
TH
|
|
---|---|---|
ambient air temperature for storage |
-40…70 °C
|
|
ambient air temperature for operation |
-40…70 °C
|
|
electrical shock protection class |
Class I conforming to IEC 60536
|
|
standards |
EN/IEC 60947-5-5
EN/IEC 60947-5-4 EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 JIS C8201-5-1 JIS C8201-1 |
|
product certifications |
BV
RINA CSA UL listed LROS (Lloyds register of shipping) GL DNV |
|
vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Package 1 Weight |
0.051 kg
|
|
---|---|---|
Package 1 Height |
0.560 dm
|
|
Package 1 width |
0.340 dm
|
|
Package 1 Length |
0.540 dm
|
