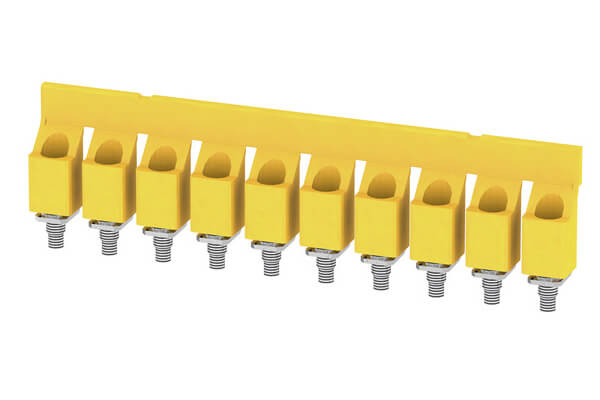

1053360000 WQV 16/10 W-Series, Cross-connector, For the terminals, No. of poles: 10

Category: WeidMuller

1053360000 WQV 16/10 W-Series, Cross-connector, For the terminals, No. of poles: 10

Specification：

Type	WQV 16/10
Order No.	1053360000
Version	W-Series, Cross-connector, For the terminals, No. of poles: 10

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Rated current

101 A
