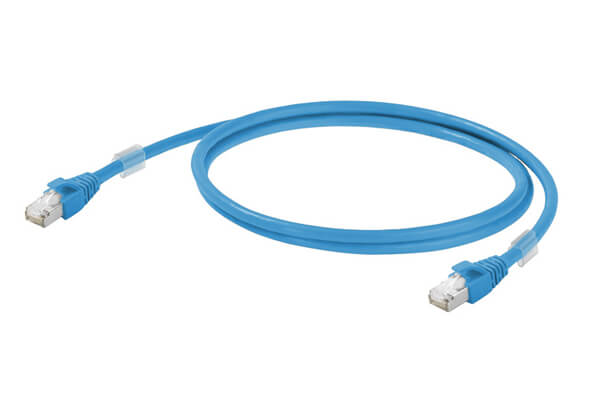

1165900020 IE-C6FP8LB0020M40M40-B Patch cable

Category:

1165900020 IE-C6FP8LB0020M40M40-B Patch cable, RJ45 IP 20, RJ45 IP 20, Cat.6A / Class EA (ISO/IEC 11801 2010), LSZH, 2 m

Specification:

Type IE-C6FP8LB0020M40M40-B
Order No. 1165900020
Version Patch cable, RJ45 IP 20, RJ45 IP 20, Cat.6A / Class EA (ISO/IEC 11801 2010), LSZH, 2 m
Operating temperature, max. 60 °C
Operating temperature, min. -20 °C
Storage temperature, max. 60 °C
Storage temperature, min. -20 °C
Operating temperature -20 °C…60 °C
Storage temperature -20 °C…60 °C
Installation temperature 0 °C…50 °C
Copper diameter 0.43 mm
Strands 7
Cross-section 4*2*AWG 27/7 – 4*2*0.1 mm²
Insulation PE
Insulation cross-section 1.04 mm
No. of wires 8
Arrangement of wire cores Twisted pair
Colour sequence or wires – wire pairs white – blue, white – orange, white – green, white – brown
Shielding S/FTP
Complete shielding Shielding braid made from copper wiring
Overlap of shielding braid 60 %
Material sheath LSZH
Sheath diameter, min. 5.5 mm
Sheath diameter, max. 5.9 mm
