Specification:

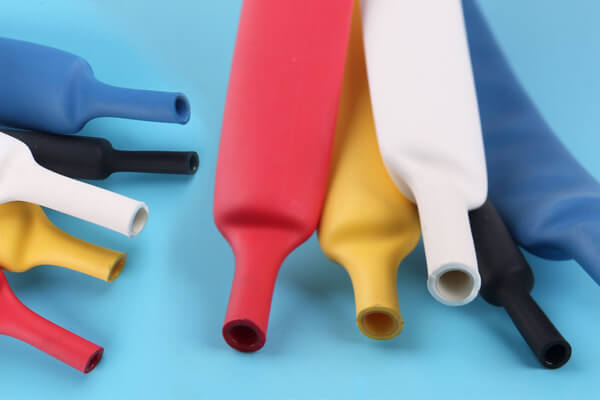

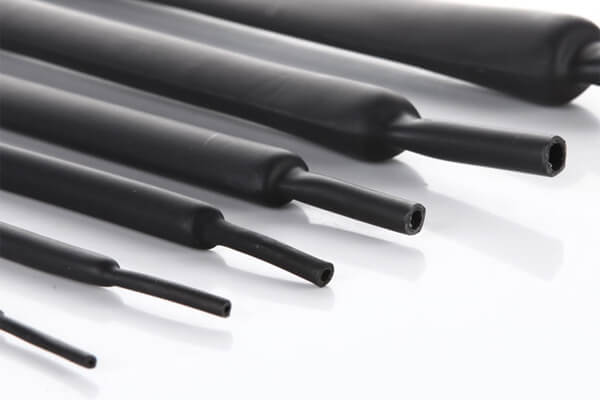

Highly flame retardant, semi-rigid, cross-linked dual-wall heat-shrink tubing designed for splice sealing and fuse link protection.
Thick adhesive liner forms an effective barrier against fluids and moisture penetration
Flame Retardant
4:1 shrink ratio
Halogen-free
Continuous operating temperature:-45℃-125℃
Shrink Temperature:125℃
Size | Expanded | After Recovery | Standard Package | ||
mm | Internal Diameter(mm) | Internal Diameter(mm) | Total Wall Thickness (mm) | Adhesive Thickness(mm) | Spool Length M/spool |
Φ4 | 4 | 0.95 | 1.40±0.20 | 0.50±0.10 | 200 |
Φ6 | 6 | 1.27 | 1.70±0.20 | 0.60±0.10 | 100 |
Φ8 | 8 | 1.65 | 2.00±0.20 | 0.75±0.10 | 100 |
Φ12 | 12 | 2.41 | 2.45±0.20 | 1.20±0.20 | 1.22 or 25M/Roll |
Φ18 | 18 | 4.45 | 2.60±0.20 | 1.40±0.20 | 1.22 or 25M/Roll |
