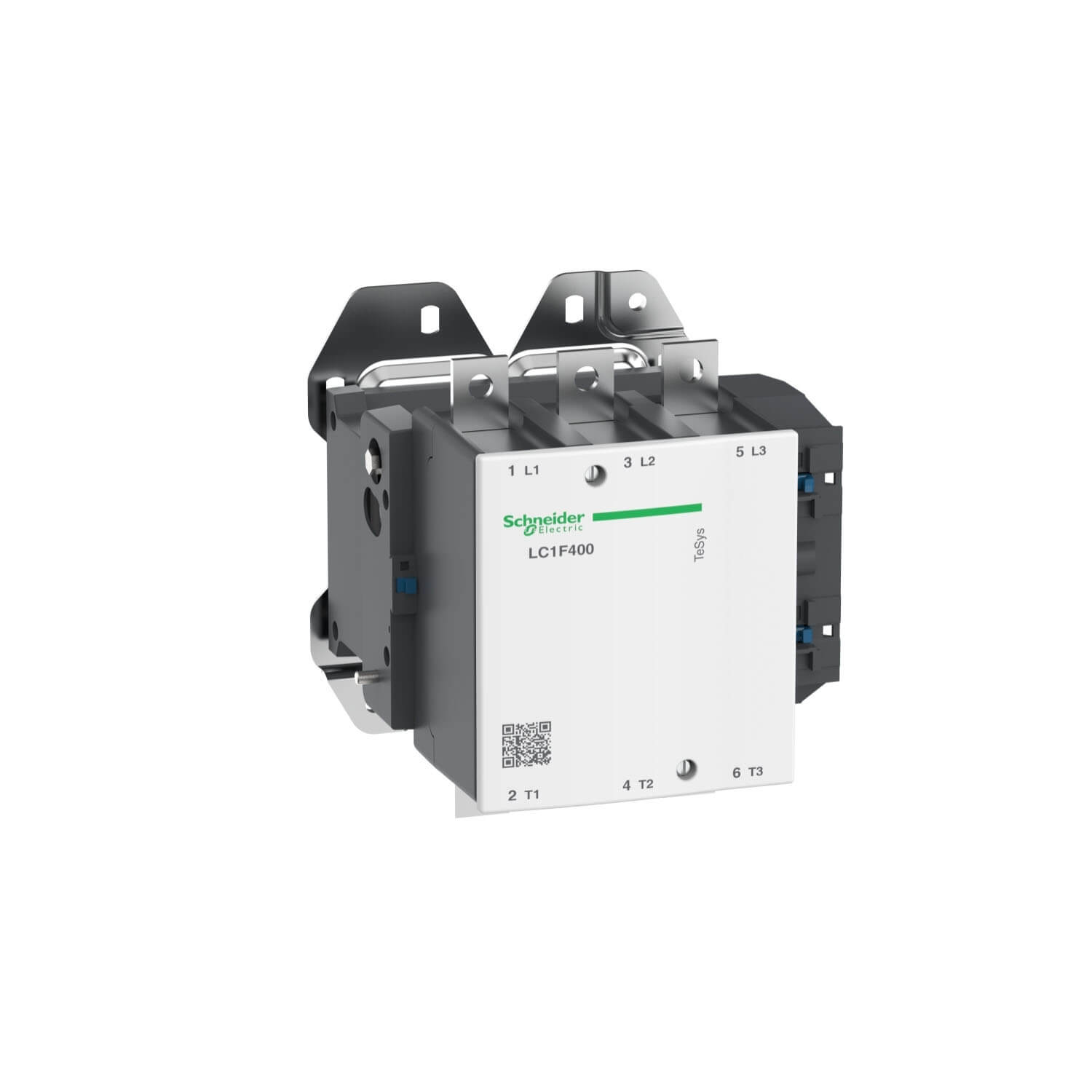

LC1F400U7 TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 400 A – coil 240 V AC
Specification:
| range | TeSys | |
|---|---|---|
| product name | TeSys F | |
| product or component type | Contactor | |
| device short name | LC1F | |
| contactor application | Resistive load Motor control | |
| utilisation category | AC-3 AC-1 AC-4 | |
| poles description | 3P | |
| power pole contact composition | 3 NO | |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC | |
| [Ie] rated operational current | 500 A (at <40 °C) at <= 440 V AC AC-1 400 A (at <55 °C) at <= 440 V AC AC-3 | |
| motor power kW | 75 kW at 400 V AC 50/60 Hz (AC-4) 200 kW at 380…400 V AC 50/60 Hz (AC-3) 220 kW at 415 V AC 50/60 Hz (AC-3) 250 kW at 440 V AC 50/60 Hz (AC-3) 257 kW at 500 V AC 50/60 Hz (AC-3) 280 kW at 660…690 V AC 50/60 Hz (AC-3) 185 kW at 1000 V AC 50/60 Hz (AC-3) 110 kW at 220…230 V AC 50/60 Hz (AC-3) | |
| [Uc] control circuit voltage | 240 V AC 40…400 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV | |
|---|---|---|
| overvoltage category | III | |
| [Ith] conventional free air thermal current | 500 A (at 40 °C) | |
| rated breaking capacity | 3200 A conforming to IEC 60947-4-1 | |
| [Icw] rated short-time withstand current | 3600 A 40 °C – 10 s 2400 A 40 °C – 30 s 1700 A 40 °C – 1 min 1200 A 40 °C – 3 min 1000 A 40 °C – 10 min | |
| associated fuse rating | 400 A aM at <= 440 V 500 A gG at <= 440 V | |
| average impedance | 0.26 mOhm – Ith 500 A 50 Hz | |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C | |
| power dissipation per pole | 65 W AC-1 42 W AC-3 | |
| mounting support | Plate | |
| standards | IEC 60947-1 IEC 60947-4-1 EN 60947-4-1 EN 60947-1 JIS C8201-4-1 | |
| product certifications | UL BV DNV CB CSA ABS LROS (Lloyds register of shipping) RMRoS RINA | |
| connections – terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: bar 2 cable(s) – busbar cross section: 30 x 5 mm Power circuit: lugs-ring terminals 2 cable(s) 150 mm² Power circuit: bolted connection | |
| tightening torque | Control circuit: 1.2 N.m Power circuit: 35 N.m | |
| control circuit voltage limits | Operational: 0.85…1.1 Uc 40…400 Hz (at 55 °C) Drop-out: 0.3…0.5 Uc 40…400 Hz (at 55 °C) | |
| inrush power in VA | 1075 VA 40…400 Hz cos phi 0.9 (at 20 °C) | |
| hold-in power consumption in VA | 15 VA 40…400 Hz cos phi 0.9 (at 20 °C) | |
| heat dissipation | 14 W | |
| operating time | 40…65 ms closing 100…170 ms opening | |
| mechanical durability | 10 Mcycles | |
| maximum operating rate | 2400 cyc/h 55 °C | |
| compatibility code | LC1F | |
| motor power range | 110…220 kW at 480…500 V 3 phases 110…220 kW at 380…440 V 3 phases 110…220 kW at 200…240 V 3 phases 250…500 kW at 480…500 V 3 phases | |
| motor starter type | Direct on-line contactor | |
| contactor coil voltage | 240 V AC standard |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 IP20 front face with shrouds conforming to VDE 0106 | |
|---|---|---|
| protective treatment | TH | |
| ambient air temperature for operation | -5…55 °C | |
| ambient air temperature for storage | -60…80 °C | |
| permissible ambient air temperature around the device | -40…70 °C | |
| height | 206 mm | |
| width | 213 mm | |
| depth | 219 mm | |
| net weight | 9.1 kg |
