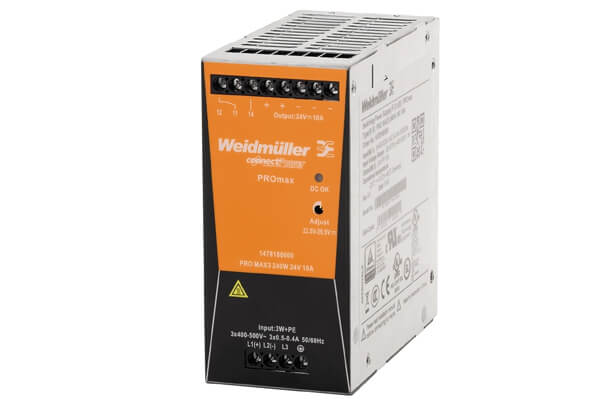

1478180000 PRO MAX3 240W 24V 10A Power supply, switch-mode power supply unit, 24 V
Specification：
| Type | PRO MAX3 240W 24V 10A |
| Order No. | 1478180000 |
| Version | Power supply, switch-mode power supply unit, 24 V |
| AC current consumption | 0,35A @ 3*500 VAC / 0,4A @ 3*400 VAC |
| AC input voltage range | 3 x 320…3 x 575 V AC / 2 x 360…2 x 575 V AC |
| Connection system | Screw connection |
| DC current consumption | 0.35 A @ 800 V DC / 0.6 A @ 450 V DC |
| DC input voltage range | 450…800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC | 45…65 Hz |
| Input fuse (internal) | Yes |
| Inrush current | max. 15 A |
| Rated input voltage | 3 x 400…3 x 500 V AC (wide-range input) |
| Recommended back-up fuse | 3 – 5 A, char. C, circuit breaker |
| Standby power consumption, max. | 1 W |
| Surge protection | Varistor |
| Connection system | Screw connection |
| Continous output current @ UNominal | 12 A @ 45°C, 7,5 A @ 70°C |
| Current capacity (pulse) @ UNominal | 30 A (2ms) |
| Nominal output current for Unom | 10 A @ 60 °C |
| Output power | 240 W |
| Output voltage | 24 V |
| Output voltage | 22.5…29.5 V (adjustable via potentiometer) |
| Parallel connection option | yes, max. 5 |
| Protection against inverse voltage | Yes |
| Rated output voltage | 24 V DC ± 1 % |
| Reserve capacity @ UNominal | 12 A (1 min), 15 A (4s) |
| Residual ripple, breaking spikes | < 50 mVss @ UNenn, Full Load |
| AC failure bridging time @ Inom | min. 20 ms |
| Current limiting | > 120% IN |
| Degree of efficiency | 91.5% |
| Derating | > 60°C / 75% @ 70°C |
| Earth leakage current, max. | 3.5 mA |
| Housing version | Metal, corrosion resistant |
| MTBF | >500.000h (25°C, IEC 61709 (SN29500)) |
| Mounting position, installation notice | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature | -25 °C…70 °C |
| Power factor (approx.) | > 0.85 @ 3*400 V AC |
| Power loss, idling | 4.8 W |
| Power loss, nominal load | 22.3 W |
| Protection against reverse voltages from the load | 30…35 V DC |
| Protection degree | IP20 |
| Series switching capability | Yes |
| Short-circuit protection | Yes |
| Start-up | ≥ -40 °C |
| Status indication | LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off) |
| Surge voltage category | III |
