2 Hole Cable Lugs High Voltage Wire Lugs Terminal CLH2

Category: Cable Lug

2 Hole Cable Lugs High Voltage Wire Lugs Terminal CLH2

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

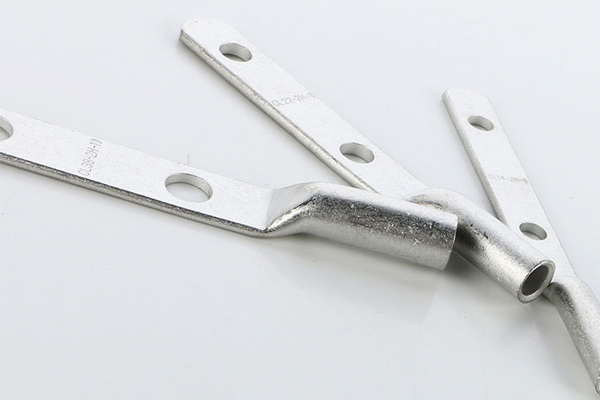

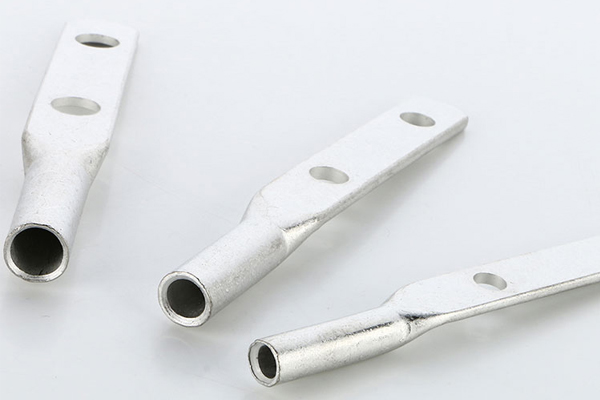

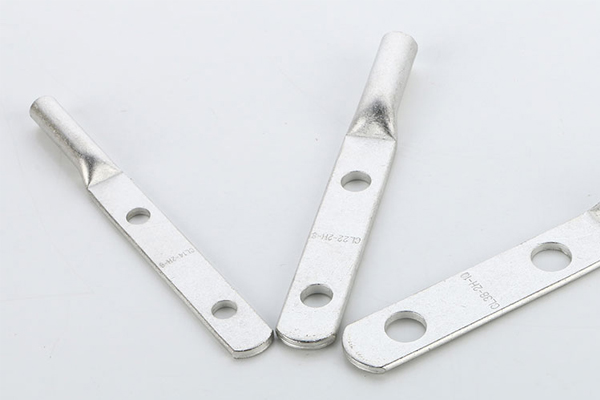

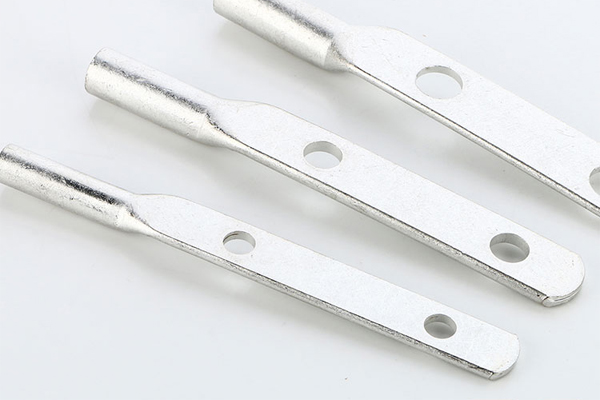

The 2 Hole Cable Lugs are made of the high-quality copper which ensures good conductivity at its user end. The 2 Hole Cable Lugs are tin plated to provide excellent corrosion resistance.

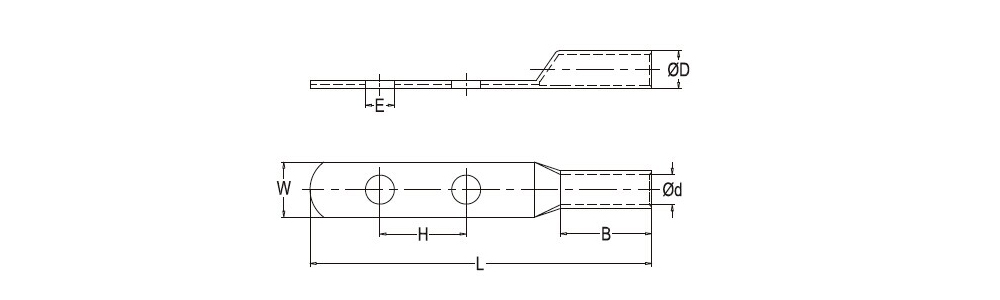

(In mm)

Item No.	E	Dφ	dφ	W	B	L	H
CL14-6-2D	6.4	8.8	5.8	13	28.5	117.5	45
CL22-8-2D	8.4	11.3	7.7	16	28.5	119.2	45
CL38-10-2D	10.5	12.4	9.8	18.3	31.7	120	45
CL38-12-2D	13	12.4	9.8	18.3	31.7	120	45
CL60-10-2D	10.5	14	11	20.5	40	130	45
CL60-12-2D	13	14	11	20.5	40	130	45
CL70-10-2D	10.5	15	12	21.4	40	130	45
CL70-12-2D	13	15	12	21.4	40	130	45
CL80-12-2D	13	16	13	23.2	40	130	45
CL100-12-2D	13	18	14	26	42	132	45
CL125-12-2D	13	20	16	29	42	135	45
CL150-12-2D	13	22	17	31	50	150	45
CL180-12-2D	13	23	18.2	33	50	150	45
CL200-12-2D	13	26	20	37	52.5	150	45
CL250-12-2D	13	28	22	40	50	150	45
CL325-12-2D	13	32	25	46	68	180	45
CL400-12-2D	13	37	30	54	60	180	45
CL500-12-2D	13	40	31	57.5	60	180	45
B-CL14-6-2D	6.4	8.3	5.8	13	28.5	117.5	45
B-CL22-8-2D	8.4	10.7	7.7	16	28.5	119.2	45
B-CL38-10-2D	10.5	11.9	9.8	17.5	31.7	120	45
B-CL38-12-2D	13	11.9	9.8	17.5	31.7	120	45
B-CL60-10-2D	10.5	13.5	11	19.5	40	130	45
B-CL60-12-2D	13	13.5	11	19.5	40	130	45
B-CL70-10-2D	10.5	14.5	12	21.4	40	130	45
B-CL70-12-2D	13	14.5	12	21.4	40	130	45
B-CL80-12-2D	13	15.5	13	23.2	40	130	45
B-CL100-12-2D	13	17.3	14	26	42	132	45
B-CL125-12-2D	13	19.3	16	28	42	135	45
B-CL150-12-2D	13	21.1	17	31	50	150	45
B-CL180-12-2D	13	22.1	18.2	33	50	150	45
B-CL200-12-2D	13	24.9	20	36	50	150	45
B-CL250-12-2D	13	26.9	22	39	50	150	45
B-CL325-12-2D	13	30.7	25	45	68	180	45
B-CL400-12-2D	13	35.7	30	54	60	180	45
B-CL500-12-2D	13	38.4	31	56	60	180	45
